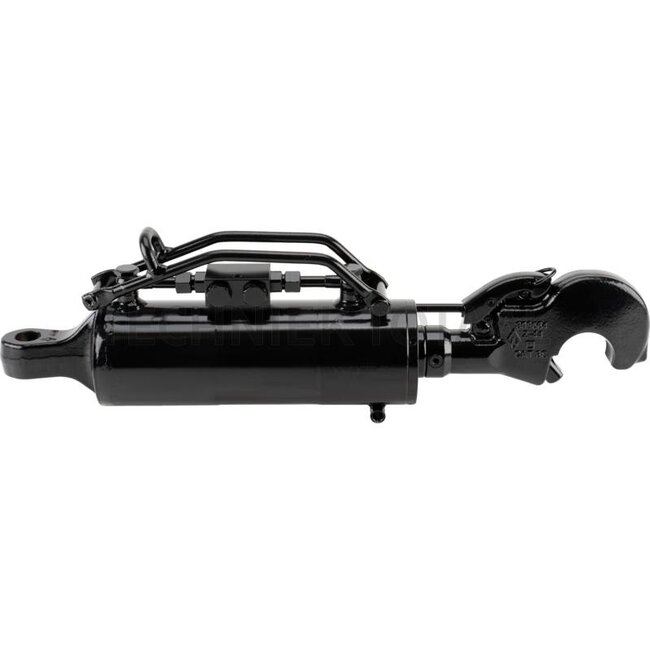

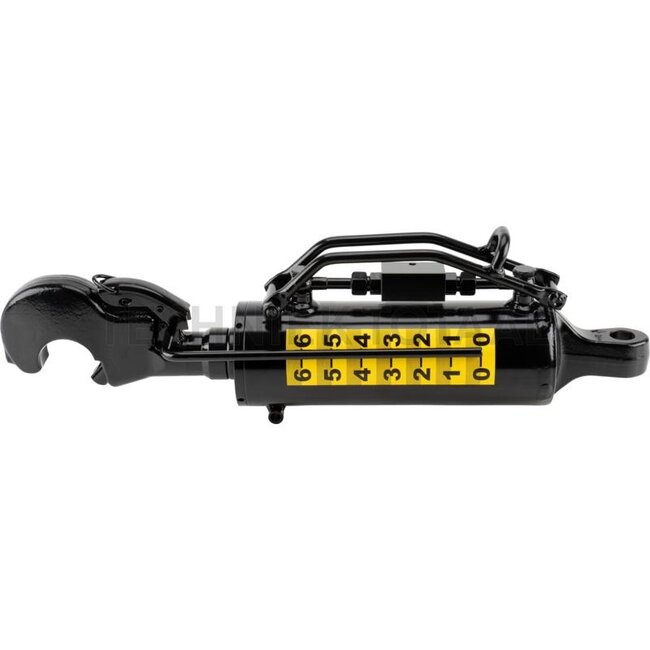

GRANIT Hydraulic top link

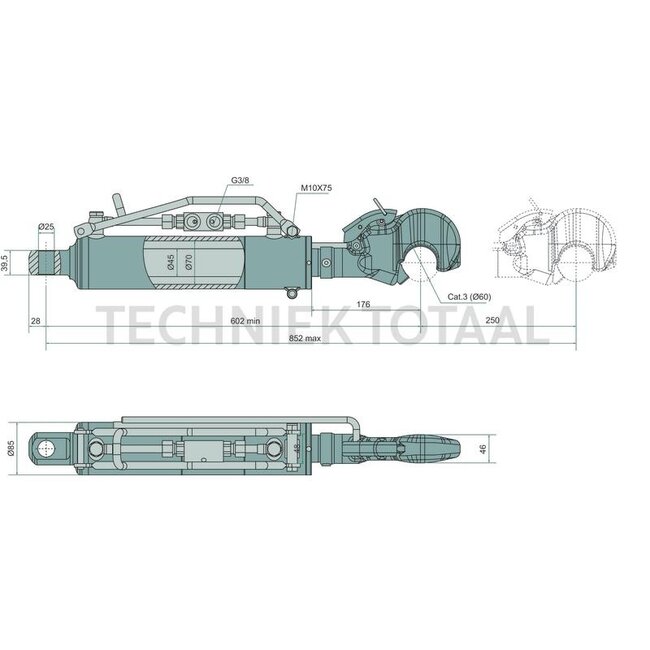

Technical data:

• Check valve: Top
• Max. power kW (PS): 110 (150)
• F (mm): 602 / 852
• Version: With damping
• Top link type: hydraulic
• Included in delivery: Nitrogen drain screw. <b> The screw must be removed as the nitrogen must be drained before disposing of the cylinder. </b>
• Type: Tail hook/clevis joint
• Description: <b> The most important advantages at a glance: </b> Reduced material stress on the tractor and implement Higher comfort when driving and working Longer mechanical component life Higher occupational safety thanks to minimised impact loads Hydraulic top links with damping are used for demanding applications where varying loads occur such as transport, grassland maintenance or arable farming
• Piston rod Ø D (mm): 45
• B cat.: 2 / 25,4
• Cylinder Ø inner E (mm): 70
• Stroke (mm): 250
• A cat.: 3 / 60
