Walterscheid Hydraulic top link
Replaces: 1206177
Technical data:
- Description: Tensile force in t at 200 bar
- B cat.: 3 / 32

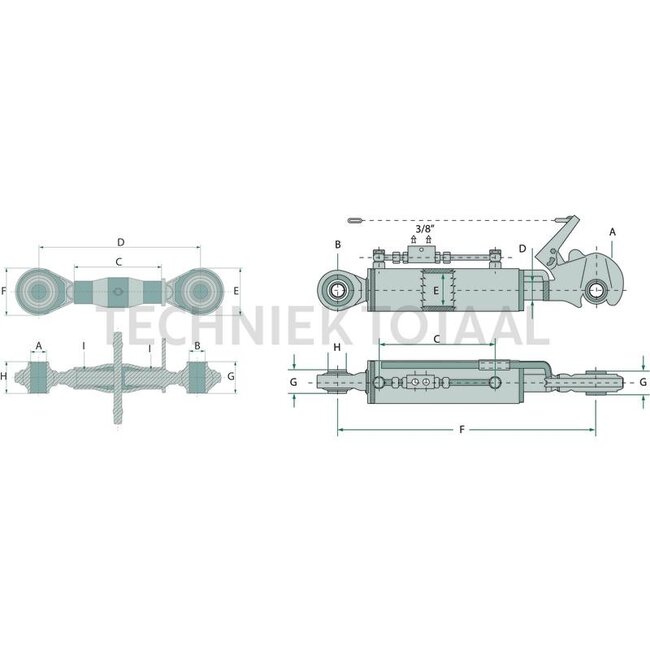

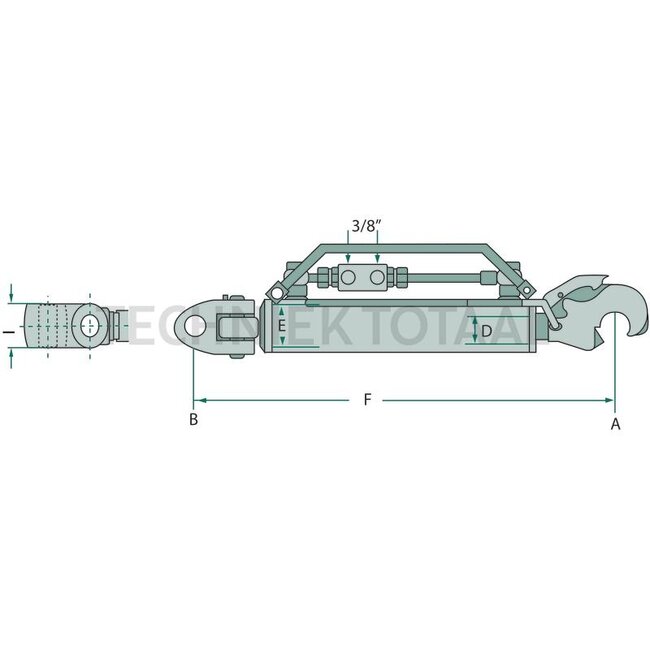

- F (mm): 637 / 887
- Stroke (mm): 250
- Max. power kW (PS): 147 (200)
- A cat.: 3 / 32

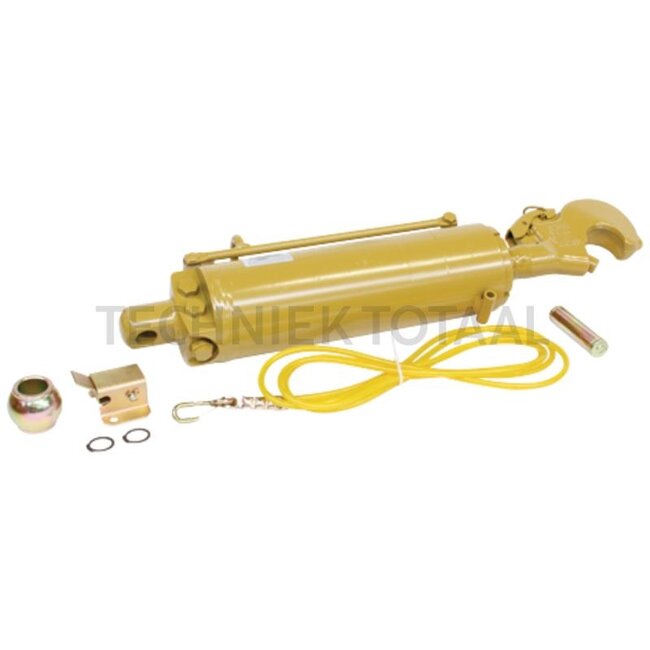

- Included in delivery: 1 x hydraulic top link D-90 Cat.3S 1 x bolt KPL107 (part number: 395206750) 1 x bracket Cat.2/3 (part number: 395308347) 1 x operating cable (part number: 395307612) 1 x ball sleeve Cat.3 (part number: 395099043) 1 x marking sticker (part number: 395305934) (Already attached to the cylinder) <b>PLEASE NOTE:</b> hose set (part number: 3951207333) and clevis head are not included and may have to be purchased separately.
- Top link type: hydraulic
- Assembly notes: The Cat. 3S hydraulic top link is only suitable for tractors with up to max. 147 kW (200 PS) engine power.
- Tensile force (t): 10,2
- Cylinder Ø inner E (mm): 90
- Type: Tail hook/clevis joint

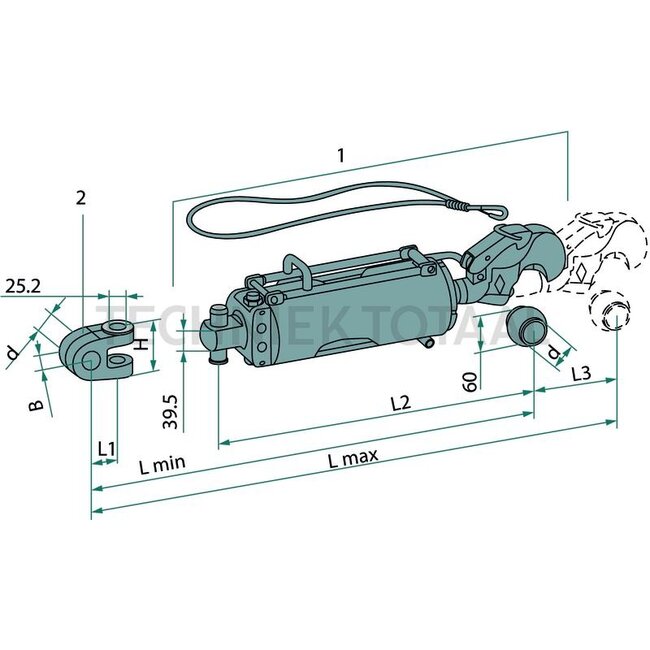

- L2 (mm): 637
