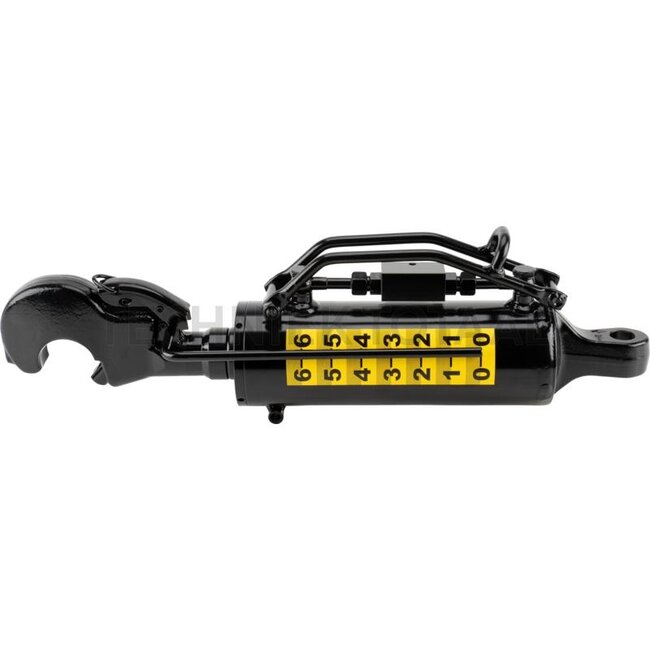

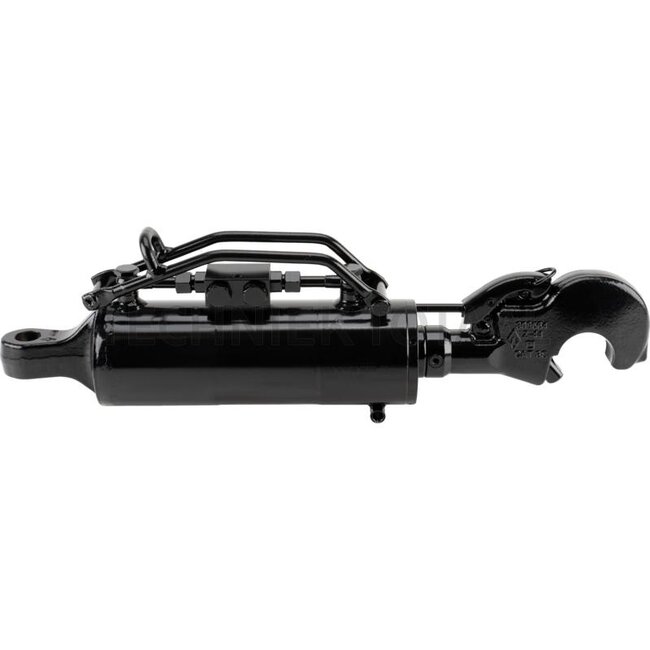

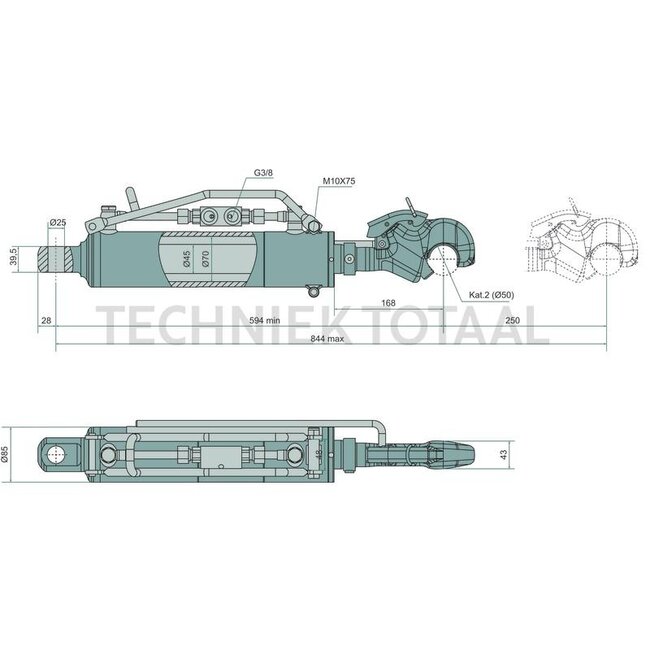

Hydraulic top link with damping, adjustable between 594 and 844 mm, with a stroke of 250 mm. The check valve is at the top, the cylinder has an inner diameter of 70 mm and the piston rod a diameter of 45 mm. Category A and B: 2 / 25,4. Type tail hook / clevis joint. Maximum power 92 kW (125 PS). Included in delivery is a nitrogen drain screw; this must be removed, as the nitrogen must be drained before disposing of the cylinder.
| Article number | 36121539 |
|---|---|
| Weight | 32 kg |
| B cat. | 2 / 25,4 |
| Piston rod Ø D | 45 mm |
| Max. power kW (PS) | 92 (125) |
| Description | <b> The most important advantages at a glance: </b> Reduced material stress on the tractor and implement Higher comfort when driving and working Longer mechanical component life Higher occupational safety thanks to minimised impact loads Hydraulic top links with damping are used for demanding applications where varying loads occur such as transport, grassland maintenance or arable farming |
| Included in delivery | Nitrogen drain screw. <b> The screw must be removed as the nitrogen must be drained before disposing of the cylinder. </b> |

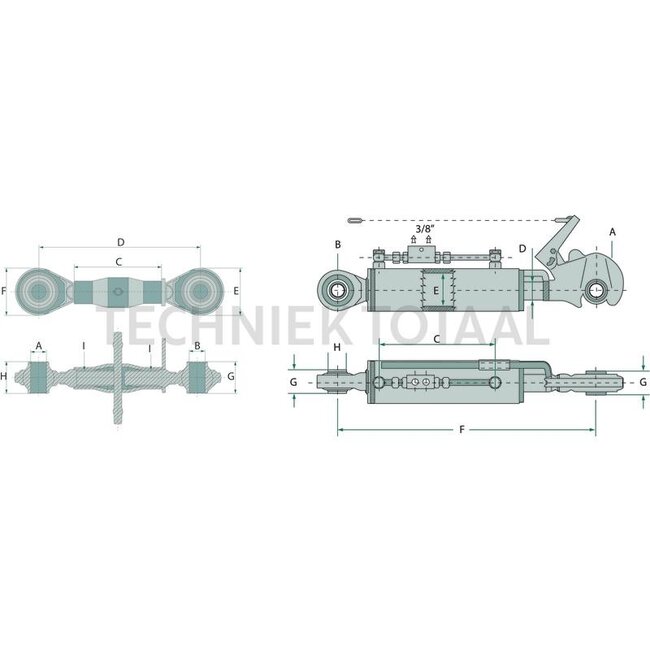

| F | 594 / 844 mm |
| Cylinder Ø inner E | 70 mm |
| A cat. | 2 / 25,4 |
| Stroke | 250 mm |
| Type | Tail hook/clevis joint |
| Version | With damping |
| Check valve | Top |
| Top link type | hydraulic |
