KS Tools Injector Tester, 600 bar - 455.0120

• Display: Mechanical scale

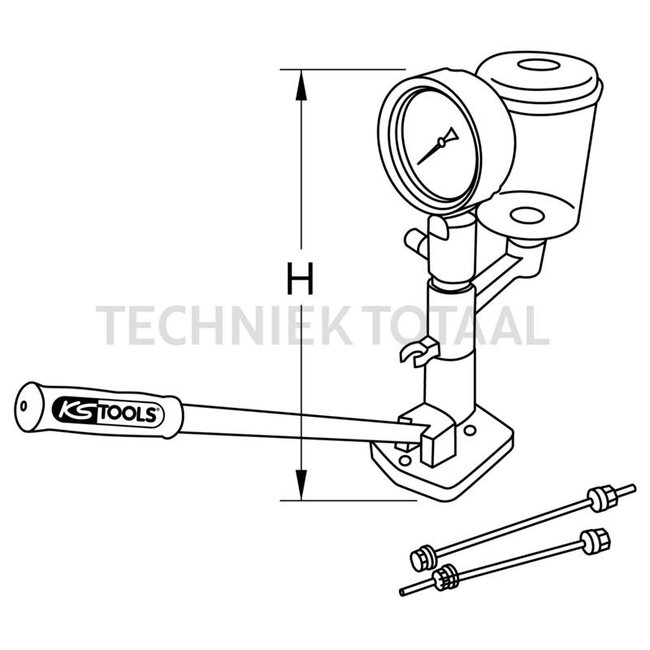

• Width: 293 mm

Description:

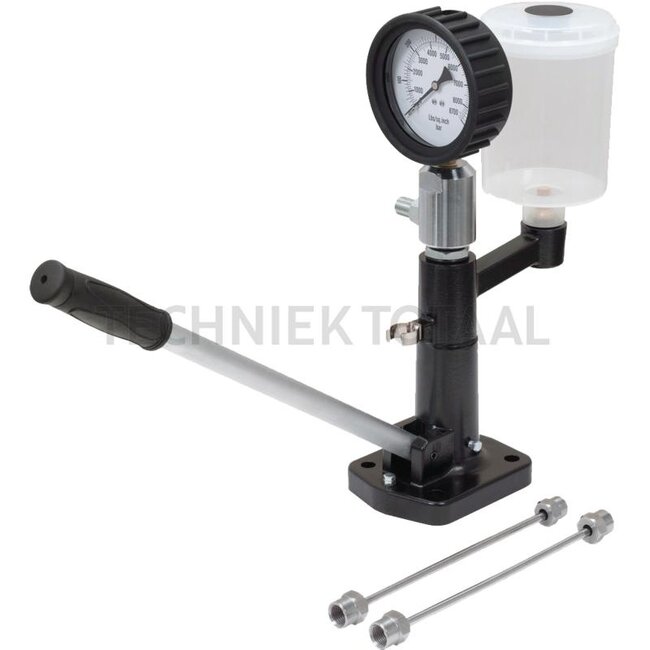

• Bench-mounted unit for testing diesel injectors for opening pressure, tightness and spray pattern
• During testing, the fluid is returned to the reservoir tank with splash guard
• Fluid tank capacity: 330 cm³
• Stroke volume: 35 cm³
• Screw-mounted precision pressure gauge Ø 100.0 mm with rubber protective cover, 0–600 bar
• Including two high-pressure line adapters
• Housing made of durable metal casting
• Test reservoir made of impact-resistant and diesel-resistant plastic with fine filter
• Stable base (118 mm x 97 mm) with four mounting holes for secure attachment to the workbench

For testing the following functions:

• Injector free or clogged
• Opening pressure
• Injection spray pattern / atomization
• Drip behaviour when closing
• Acoustic check (buzzing function)
• Tightness of the pressure line between injection pump and injector

Applications:

• M14 x 1.5 Universal
• M12 x 1.25 VAG TDI engines

Reference no.: 4550120

600 bar Injector Tester by KS Tools

An engine that smokes, runs unevenly or lacks power? Then the injectors should be checked. With the KS Tools injector tester up to 600 bar, you can test mechanical injectors for opening pressure, tightness and spray pattern. This provides clear insight into the condition of the injection system before overhaul or replacement.

What can be tested?

This mechanical tester allows you to check:

• Injector opening pressure
• Spray pattern and atomization
• Leakage or dripping after closing
• Overall function under pressure

The precision pressure gauge Ø100 mm (0–600 bar) clearly shows at which pressure the injector opens. By comparing multiple injectors under the same conditions, deviations are easy to identify.

Suitable for which engines?

This tester is intended for engines with mechanical injectors. Not suitable for modern common-rail or fully electronic injection systems.

Frequently Asked Questions

Is this tester suitable for diesel and petrol engines?

Yes, provided the engine uses mechanical injectors. Always verify the injection system type beforehand.

Can I test injectors without experience?

Operation is straightforward. It is important to know the specified opening pressure for your engine and compare it with the measured values.

Can you clearly see the difference between a good and a faulty injector?

Yes. A good injector opens at the correct pressure and produces an even spray pattern without dripping.

Is 600 bar sufficient?

For most mechanical injectors, a pressure range up to 600 bar is sufficient. Always check the injector specifications.

Can this device measure compression?

No. This unit is designed exclusively for injector testing. A separate compression tester is required for compression measurement.
