Walterscheid Inner part
Replaces: 8002574
Technical data:
- Load capacity (t): 3
- Guide width (mm): 30
- D-value (kN): 89.3
- Assembly notes: Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times.
- Ball Ø (mm): 80

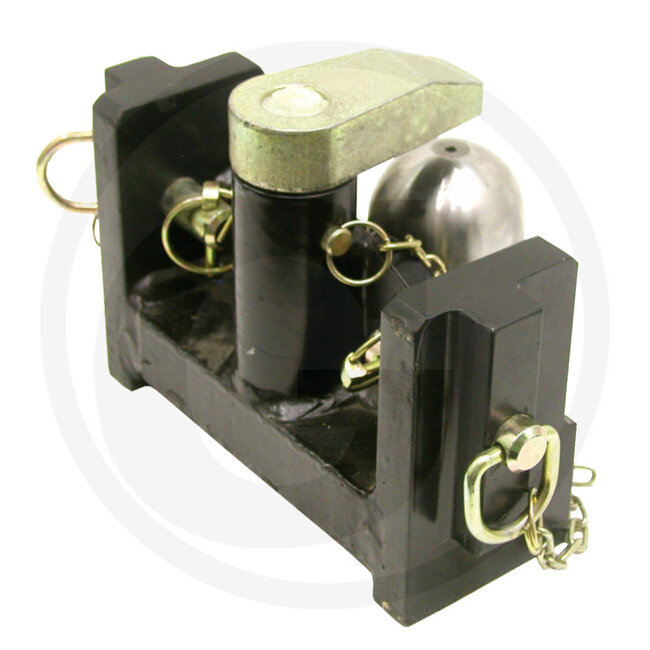

- Description: This product is a ball support with two locking bolts. The hitch ball 80 dimensions and areas of application comply with ISO 24347, VO (EU) 2015/208 and UN ECE R147, class a80. The device is normally coupled and locked. Furthermore, the product is only permitted for connection with ball couplings 80 in accordance with ISO 24347 and UN ECE R147, class b80. The inner part can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable hold-down device can be adjusted without tools
- Rail width (mm): 293
- Colour: Black
- Detent pin Ø (mm): 22
- Lock: ball 80
- Load capacity (kg): 3000
Suitable for:
Case IH: 1246, 1255 XL, 1455 XL
Deutz-Fahr: D 10006, D 13006, D 16006
