Walterscheid Top drawbar rail 293 mm, pin Ø 22 mm, coupling pin 37 mm | 8004184
€1.899,00
€1.501,35 Incl. 21% VAT
€1.240,79 Excl. VAT
Delivery time on request
Rail width: 293 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecting pin: 37 mm. Load capacity: 2000 kg. D-value: 65,6 kN. Colour: Black. Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DI Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description

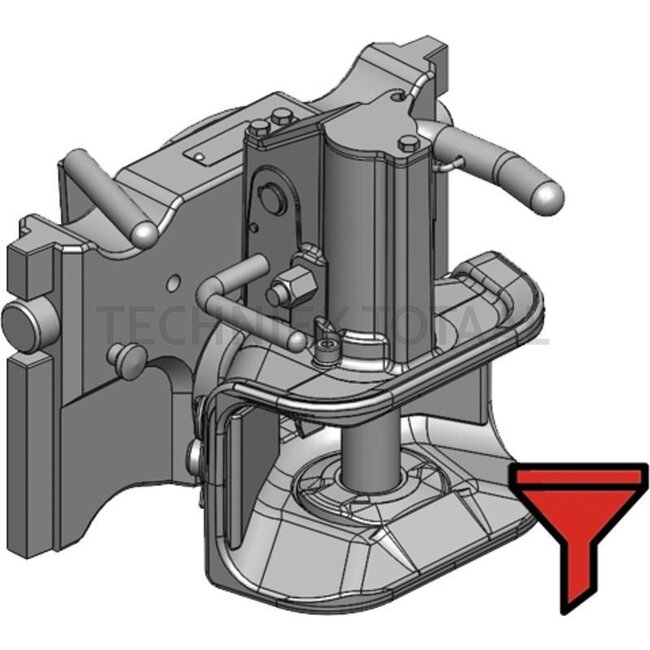

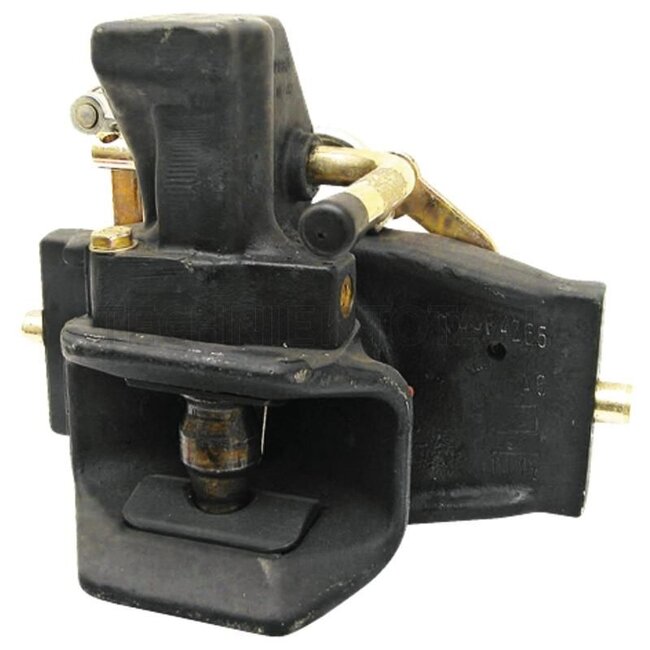

Inner part reinforced version
Rail width (mm): 293
Detent pin Ø (mm): 22
Guide width (mm): 30
Connecting pin (mm): 37
Load capacity (kg): 2000
D-value (kN): 65,6
Colour: Black
Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. The hitch is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The automatic trailer hitch is only offered as a height-adjustable inner part and can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: quick height adjustment, made of forged material, hitch bolt can be freely rotated 360 degrees
Drawbar eye: DIN 11026, 74054 (ISO 8755) = 40 mm
Lock: Automatic, spherical hitch bolt
Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1).
Passend voor:
Case IH: 8004184, Serie D-Familie, 1246, 1255 XL, 1455 XL
Same: 8004184, Serie Laser³, Laser³ 160, Serie Rubin, Rubin 190
Deutz-Fahr: 8004184, Serie 06, D 10006, D 13006, D 16006
