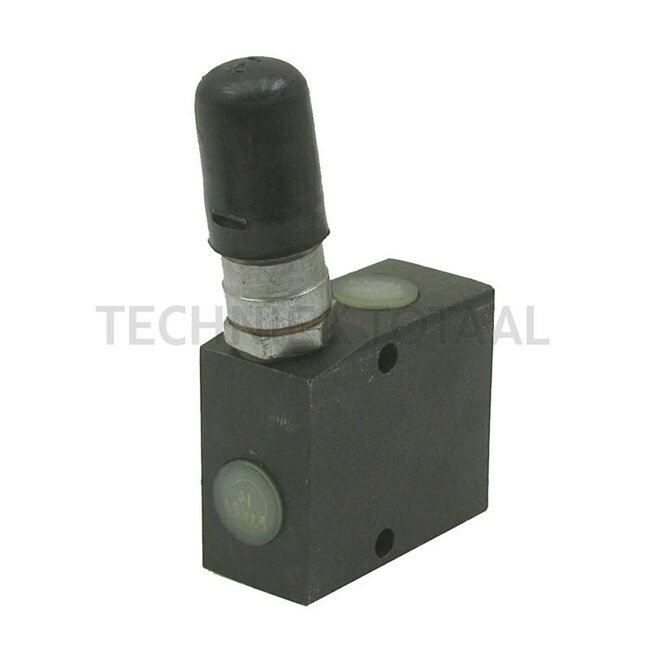

GRANIT Intake plate

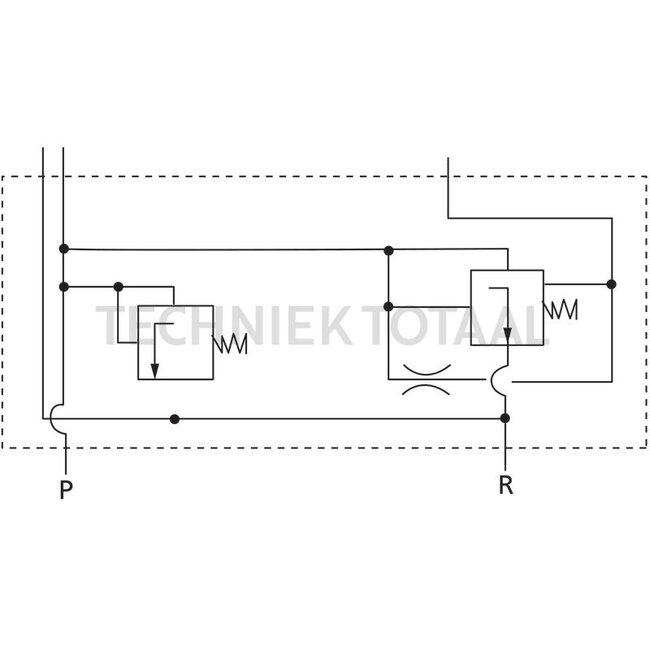

This intake plate is equipped with a pressure relief valve to protect the hydraulic system and is equipped with a connection for supply and return. The intake plate has a pilot valve to control the oil quantity.

Replaces: 1525503072, 1525503076, 1525503158, 1525503311, 1525503133, 1525503008, 1525503007, 1525503039

Technical data:

• Max. operating pressure: 210 bar Nominal flow rate: max. 40 l/min. Tightening torque: 30 Nm Connections: M18 x 1.5 Dimensions: 90 x 40 x 131 mm
