GRANIT Junction box 12-pin screw connection 120 x 87 x 36 mm, IP 6K | 8KV002142-031
GRANIT
0 reviews

GRANIT Junction box 12-pin screw connection 120 x 87 x 36 mm, IP 6K | 8KV002142-031

€102,02
€96,92 Incl. VAT
€80,10 Excl. VAT
In stock

Version: No. of pins 12, Number of connections: 24, Mounting: Screw connection, Thread dimension: M4, Connection system: 12 x 2, inputs/outputs: 6, Inlet Ø (mm): 2 x 10 + 1 x 3, outlet Ø (mm): 2 x 10 + 1 x 3, Bore: 2, bore Ø (mm): 4, Housing type: Housing Read more.

Found in category:
Tractor & vehicle› Electrics› Connection technology› Installation materials› Junction boxes, plastic

Larger quantity required?



Product description

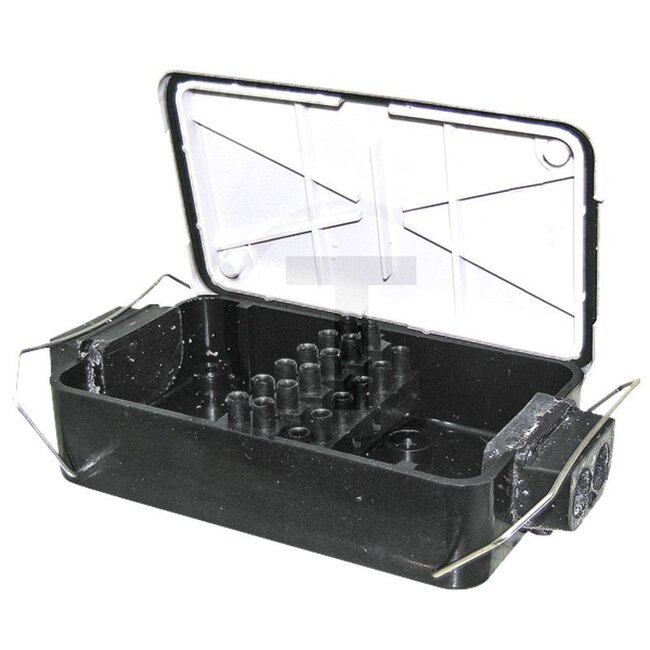

Junction box

  • Version: No. of pins 12
    Number of connections: 24
    Mounting: Screw connection
    Thread dimension: M4
    Connection system: 12 x 2
    inputs/outputs: 6
    Inlet Ø (mm): 2 x 10 + 1 x 3, outlet Ø (mm): 2 x 10 + 1 x 3
    Bore: 2, bore Ø (mm): 4
    Housing type: Housing with plastic cover
    Protection type: IP6K material: Plastic, length x width x height (mm): 120 x 87 x 36
  • Connection: 12 x 2
  • Hole Ø (mm): 4
  • Width (mm): 120
  • Height (mm): 36
  • Material: Plastic
  • Housing: With plastic cover
  • Depth (mm): 87
  • Protection class: IP 6K
  • Number of pins: 12
  • Additional information: • Number of connections: 24
    • Number of inlets/outlets: 6
    • Inlet Ø 1 (mm): 10
    • Inlet Ø 2 (mm): 10
    • Inlet Ø 3 (mm): 3
    • Outlet Ø 1 (mm): 10
    • Outlet Ø 2 (mm): 10
    • Outlet Ø 3 (mm): 3
    • Number of holes: 2
    • Spacing of the fixing holes (mm): 30
  • Mounting type: Screw connection

    • Further information

    Article number
    50750290377
    EAN Code
    4026736023300
    SKU
    50750290377
