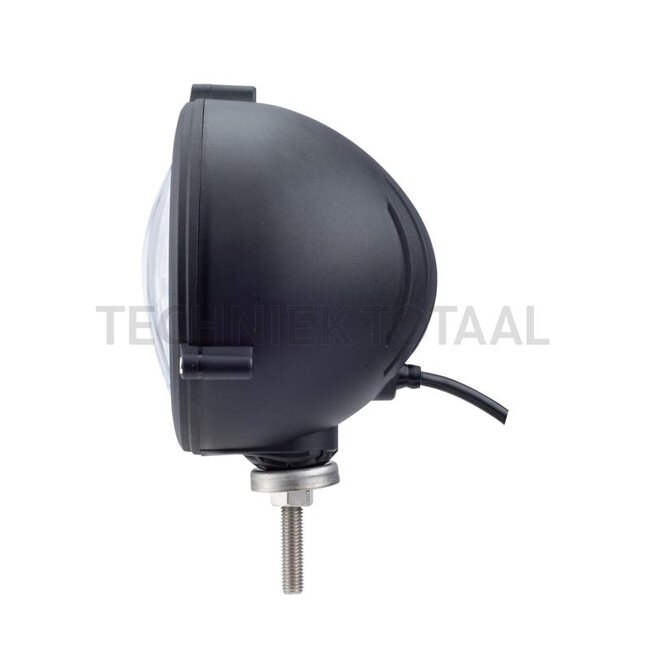

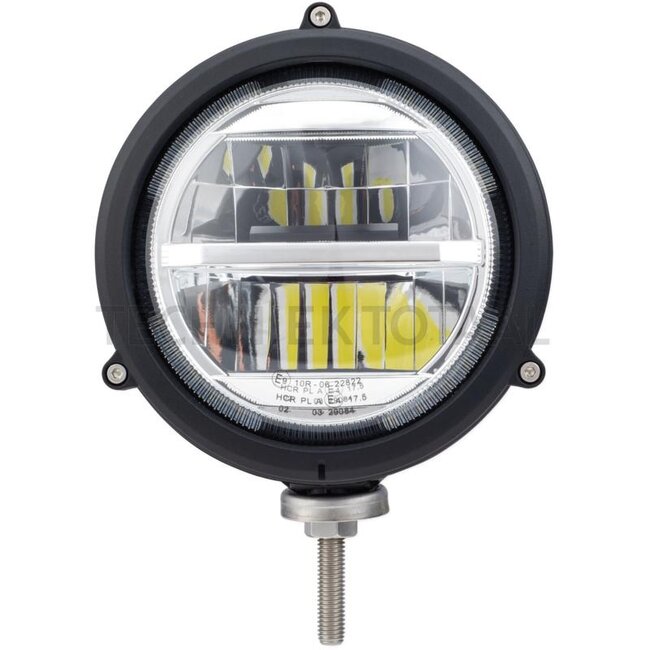

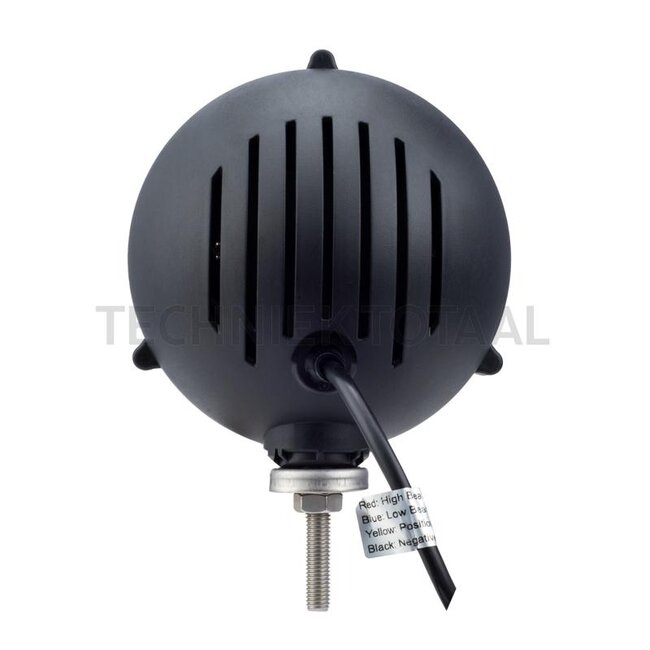

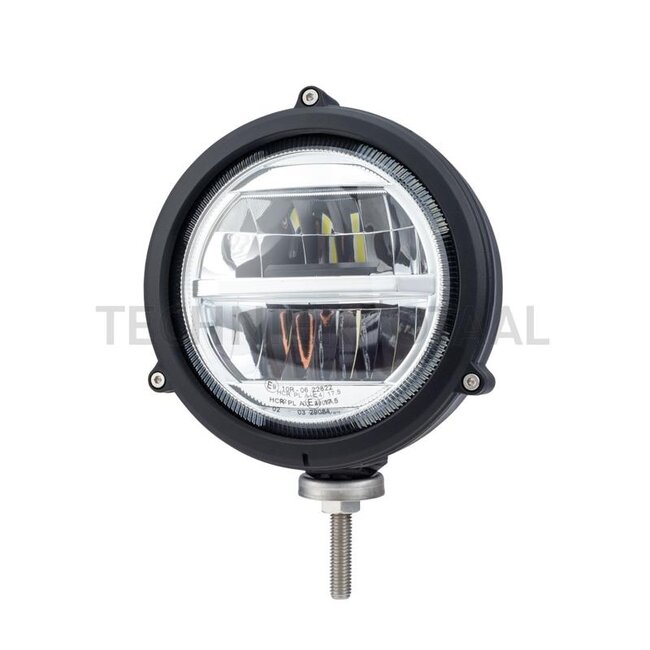

GRANIT LED main headlight
Technical data:
- Operating temperature (°C): -40 / +50°C
- Power consumption (W): Abblendlicht: 17 W Fernlicht: 24 W Positionslicht: 2 W
- Bulbs included: Yes
- Form: Round
- Bulb: LED
- Dimensions W x H x D (mm): 150,8 x 172 x 125
- Protection class: IP6K9K, IP67
- Nominal voltage (V): 12 / 24
- Fixing: M10
- Test mark: ECE R10, R112, R7, CE UKCA, ROHS
- Light function: Dipped beam, full beam, position light
- Additional information: Effective luminous flux: Dipped beam: 950 lm Full beam: 1850 lm Dipped beam: 1.42 A Full beam: 2.0 A Position light: 0.17 A
- Light colour (K): 5.700 - 6.500
- Voltage range (V): 10 - 30
- Connection: Open cable ends
- Cable length (mm): 1.000
- EMC: CISPR 25 class 3
Suitable for:
Fendt: GT 231, GT 345, GT 350, GT 360, GT 370 (Typ 148), GT 370 (Typ 370), GT 380 (Typ 380)
Steyr: 6165 Impuls CVT Stage V (1/20-)
