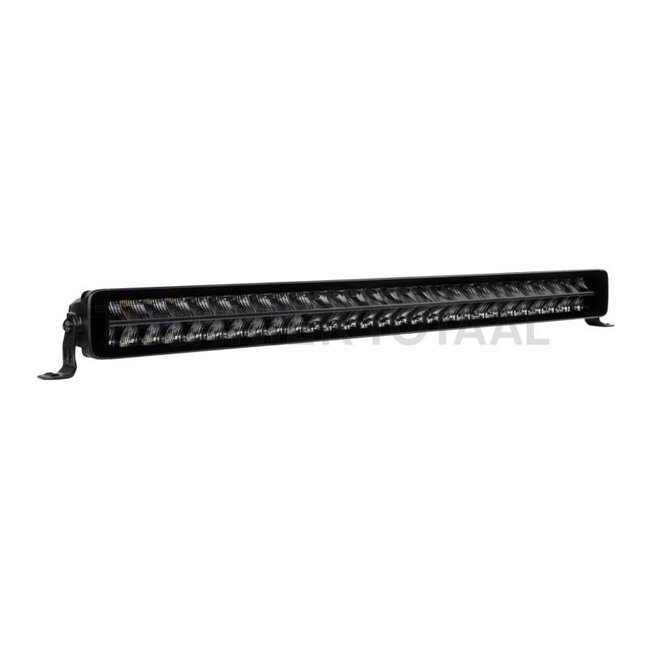

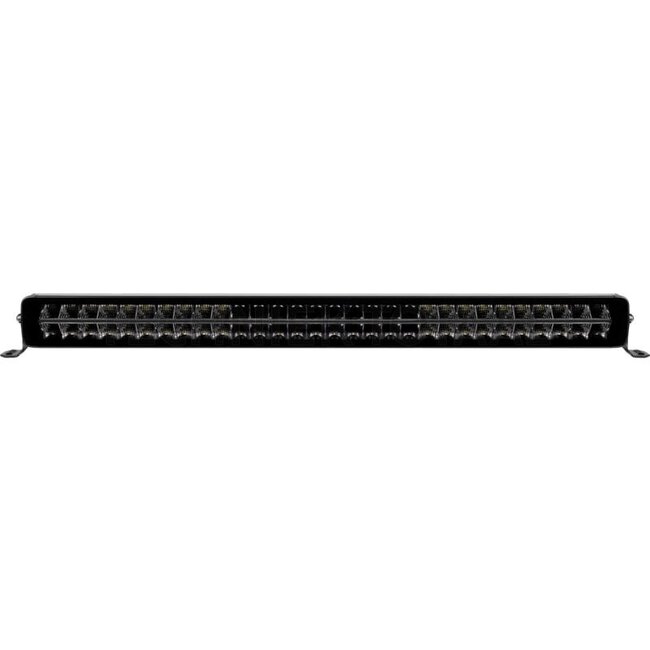

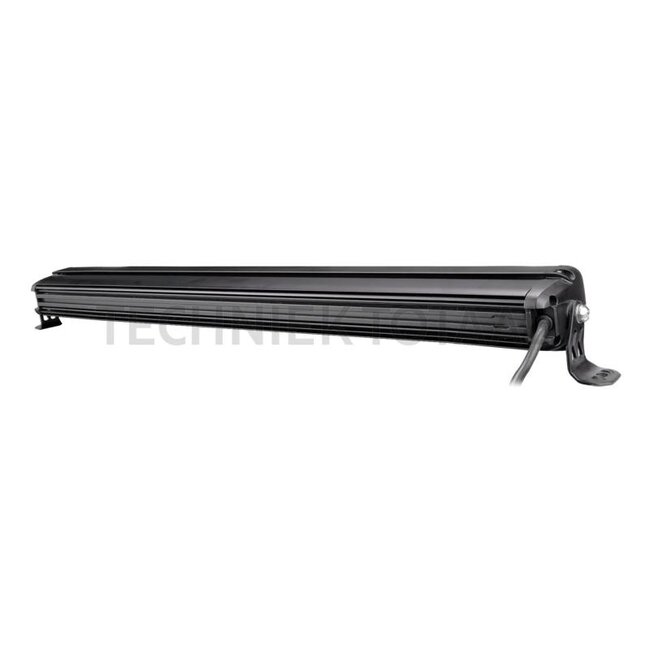

GRANIT LED light bar 81 cm
High beam, work light (boost), position light
Technical data:
- Type: Light bar
- Protection class: IP68 / IP69K
- Light function: High beam, work light (boost), position light
- Power (watts): 117.6W / 244.8W
- Bulbs included: Yes
- Connection: ATP 4P
- Effective luminous flux (lm): 6827 / 14337
- Test mark: ECE R148, R149, R10, CE UKCA/ROHS
- Operating temperature (°C): -30℃ / +65℃
- Theoretical luminous flux (lm): 25200
- Nominal voltage (V): 12 / 24
- Housing material: Aluminium
- Voltage range (V): 10 - 30
- Form: Rectangular
- Cable length (mm): 1000 +330
- Bulb: LED
- Power consumption (W): 300W

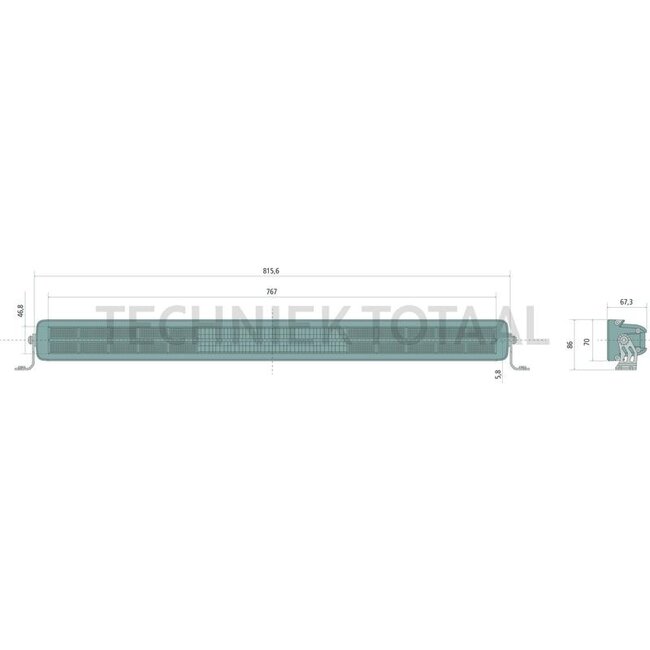

- Dimensions W x H x D (mm): 815 X 70 X 67mm
- Light colour (K): 5700
- EMC: R10
- No. of LEDs: 60x Osram LED
- Current (A): 8.9A@12V 4.9A@24V / 19.7A@12V 10.2A@24V
