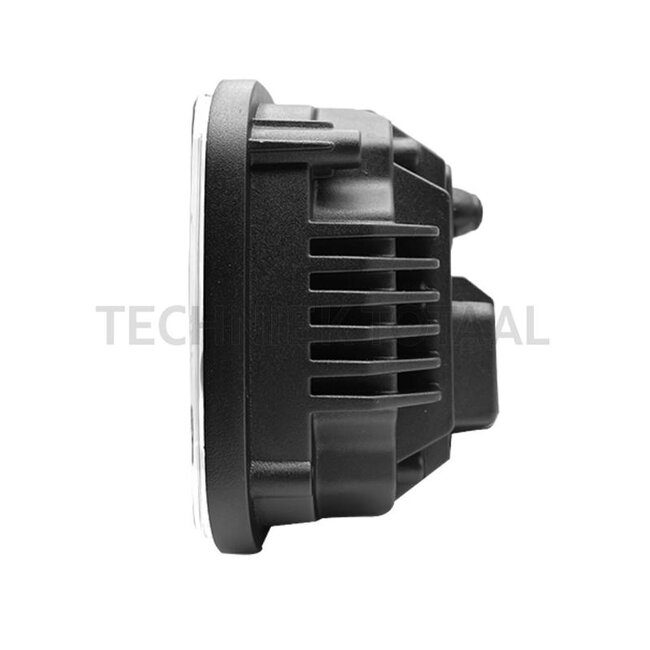

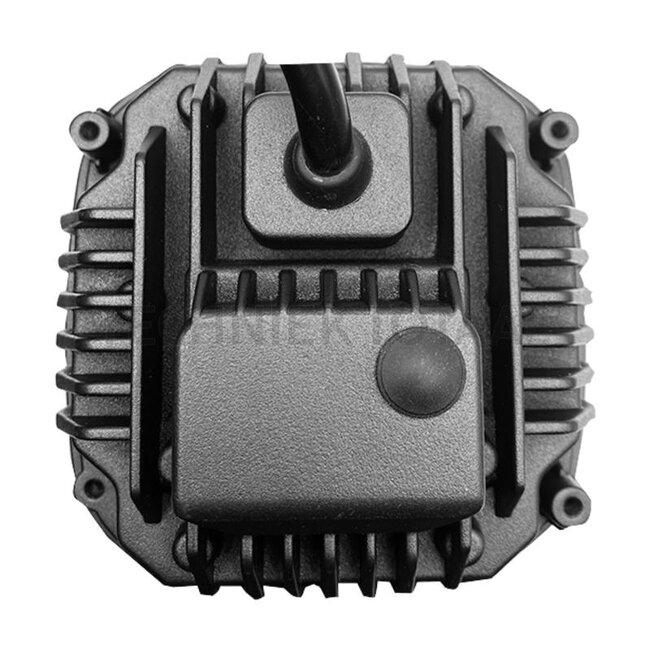

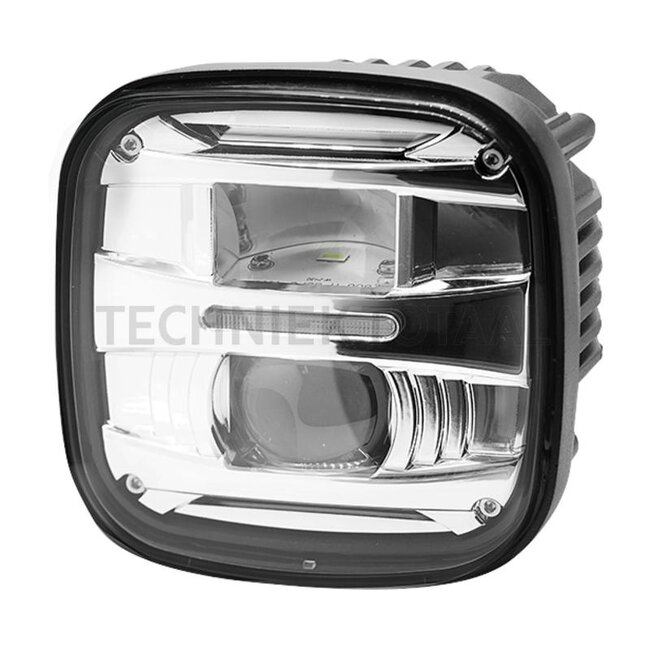

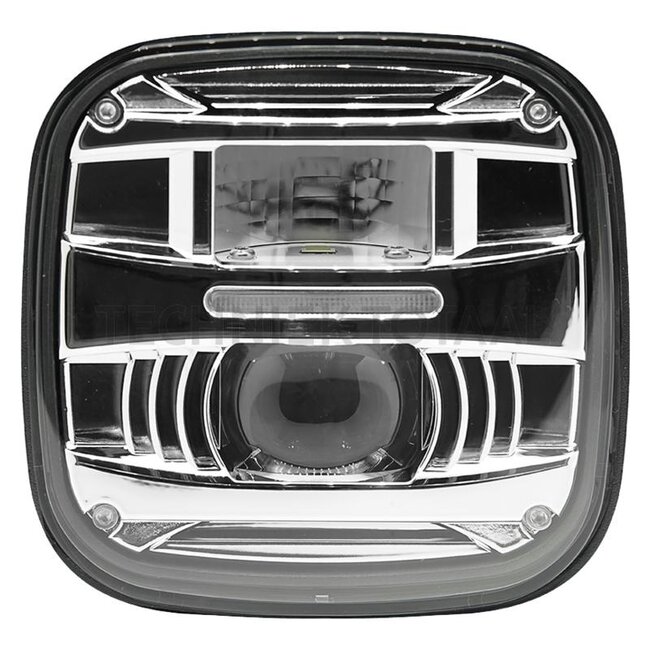

GRANIT LED main headlight
Technical data:
- Operating temperature (°C): -40°C / +80°C
- Light colour (K): 6.000

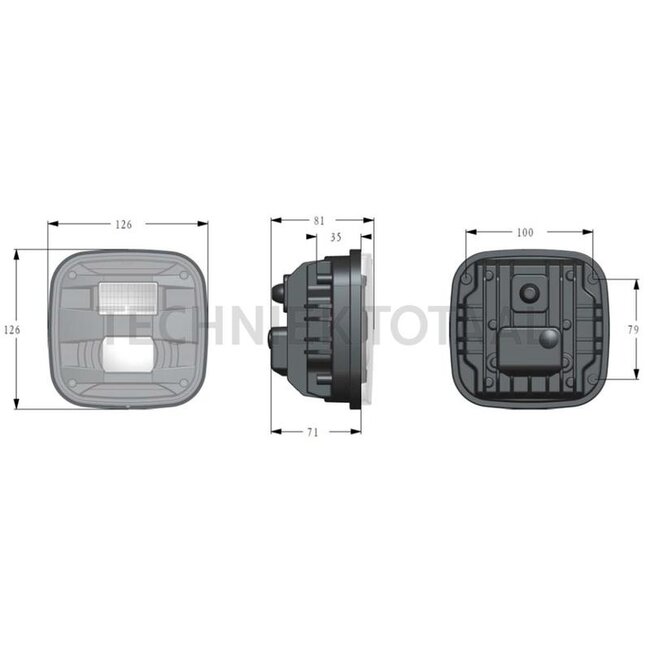

- Dimensions W x H x D (mm): 126 x 126 x 81

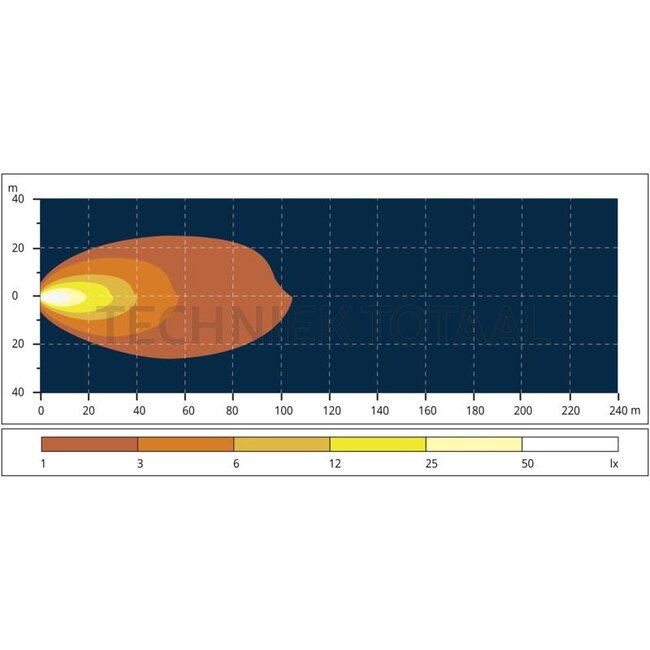

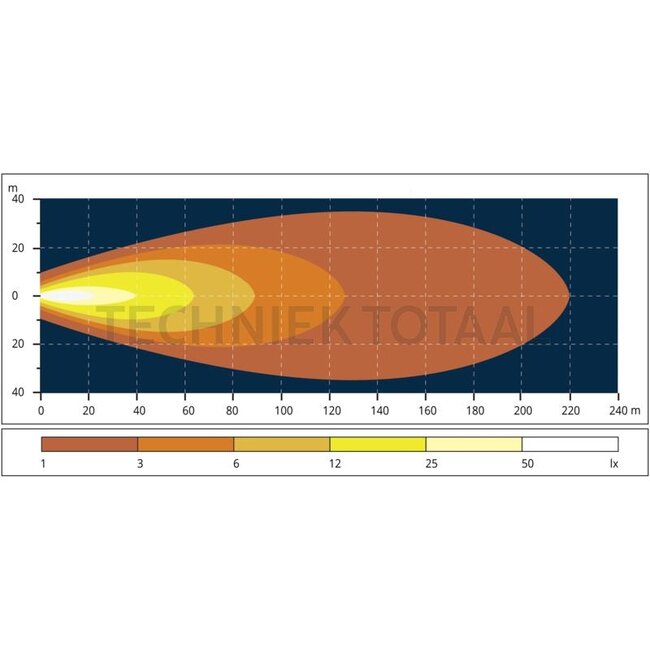

- Additional information: Power consumption: Full beam: 50 W Dipped beam: 25 W Consumption: Full beam: 30 W Dipped beam: 18 W Theoretical luminous flux Full beam: 4500 lm Dipped beam: 2250 lm Effective luminous flux Full beam: 2200~2500 lm Dipped beam: 1200~1400 lm Current (A) H/L: [email protected]/1.66A [email protected]/0.83A P: [email protected] [email protected]
- Test mark: ECE R148/R149
- Light function: Full beam, dipped beam, parking light
- Voltage range (V): 10 - 30
- Material: Polycarbonate
- Cable length (m): 0.18
- Nominal voltage (V): 12 / 24
- Protection class: IP69K
- Housing material: Aluminium
- Bulbs included: Yes
- EMC: CISPR 25 class 3
- Form: Square
- Bulb: LED
- Connection: H4 connector
Suitable for:
John Deere: 6230 PR, 6330 PR, 6430, 6430 PR, 6530 PR, 6534 PR, 6630 PR, 6830 PR, 6930 PR, 7130 PR, 7230 PR, 7330 PR, 7430 PR, 7530 PR
