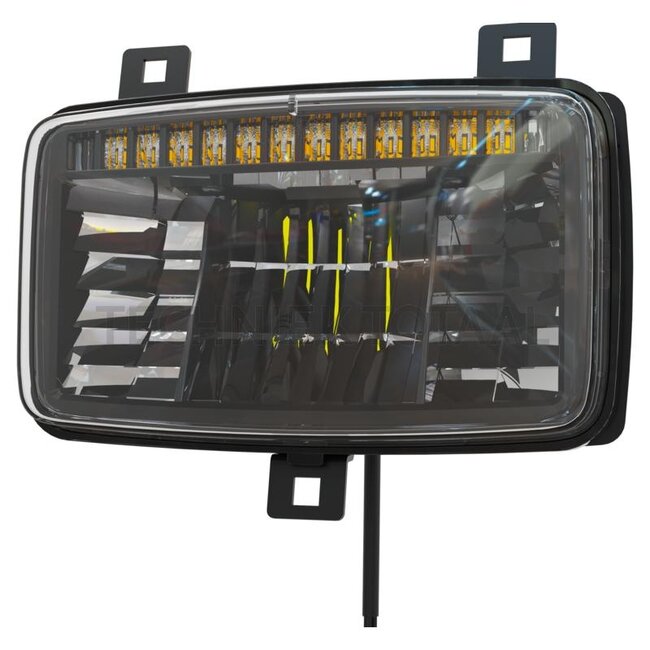

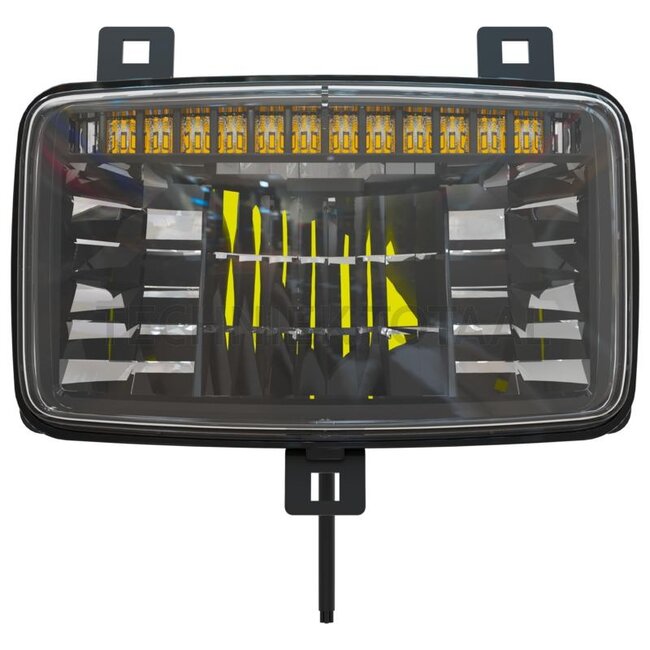

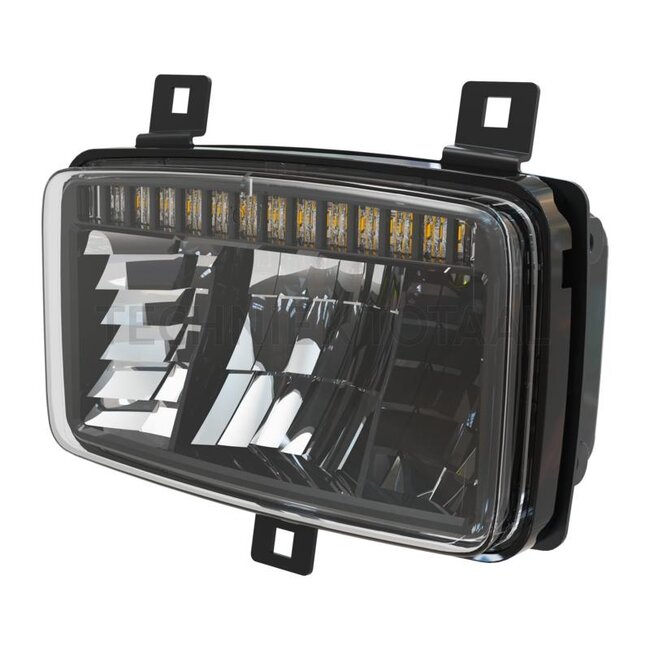

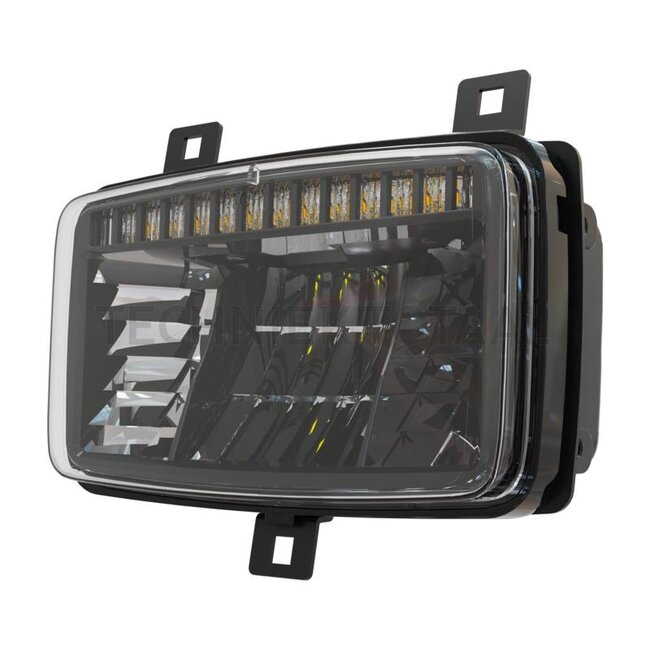

GRANIT LED main headlight

Technical data:

• Nominal voltage (V): 12 / 24

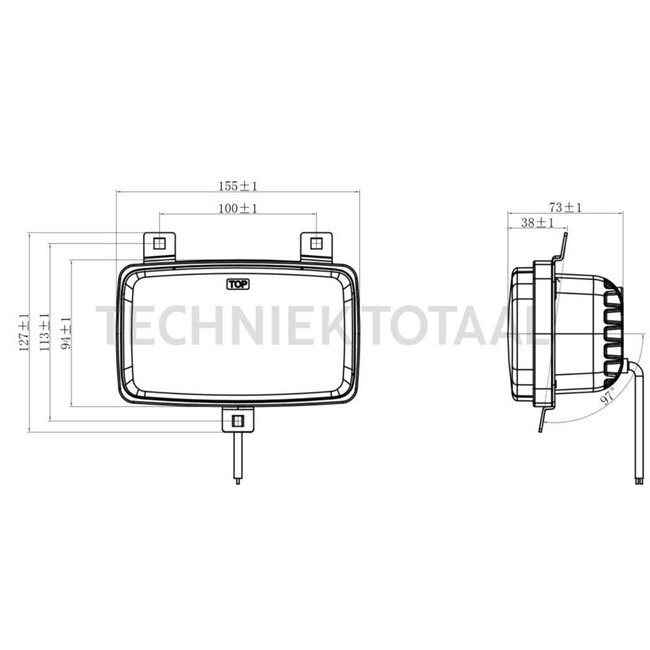

• Dimensions W x H x D (mm): 155 x 127 x 73
• Test mark: ECE R10, R148, R149, CE UKCA, ROHS
• Fixing: Screwed
• Bulb: LED
• Protection class: IP6K9K / IP67
• Power consumption (W): Abblendlicht: 22 W Fernlicht: 20 W Tagfahrlicht: 6 W Standlicht: 3 W
• Housing material: Aluminium
• Light colour (K): 5.700 - 6.500
• Connection: H4
• Operating temperature (°C): -40 / +50°C
• Cable length (m): 0.4
• Light function: Dipped beam, full beam, daytime running light, side light
• Bulbs included: Yes
• Form: Rectangular
• EMC: CISPR 25 class 3

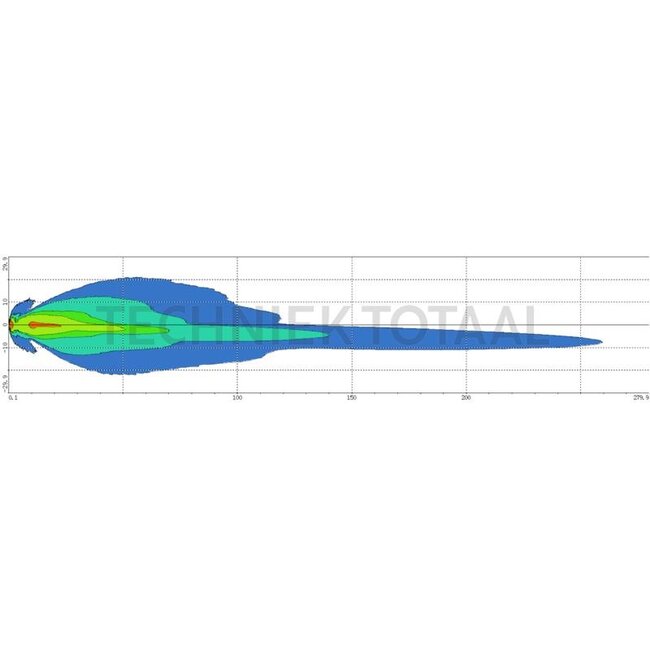

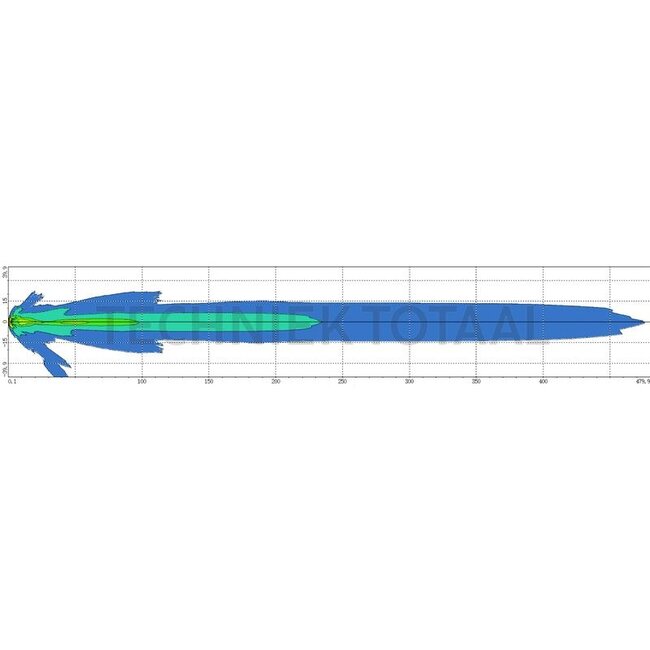

• Additional information: Theoretical luminous flux: Dipped beam: 2400 lm + full beam: 2250 lm Effective luminous flux: Dipped beam: 1400 lm + full beam: 1200 lm Current: Dipped beam: 1.83 A Full beam: 1.67 A
• Voltage range (V): 10 - 30

Suitable for:

Deutz-Fahr: 6140.4 P Agrotron, 6150.4 P Agrotron, 6160 P Agrotron, 6160.4 P Agrotron, 6180 P Agrotron, 6190 P Agrotron, 6120.4 TTV Agrotron, 6130.4 TTV Agrotron, 6140.4 TTV Agrotron, Agrotron K 410, Agrotron K 420, Agrotron K 430, Agrotron K 610, Agrotron L 710, Agrotron L 720, Agrotron L 730, Agrotron M 410, Agrotron M 420, Agrotron M 600, Agrotron M 610, Agrotron M 615, Agrotron M 620, Agrotron M 625, Agrotron M 640, Agrotron M 650, Agrotron New 120, Agrotron New 130, Agrotron New 150, Agrotron New 150.7, Agrotron New 165.7, Agrotron New 180.7, Agrotron X710, Agrotron X720

Hürlimann: XL-120.4, XL-130, XL-130.4, XL-135, XL-140, XL-140.4, XL-150, XL-150.4, XL-150.7, XL-160, XL-160.4, XL-165.7, XL-175, XL-180.7, XL-185, XM-100, XM-110, XM-115, XM-125

Lamborghini: R6.100, R6.110, R6.115, R6.120.4, R6.125, R6.130, R6.130.4, R6.135, R6.140, R6.140.4, R6.150, R6.150.4, R6.150.7, R6.155, R6.160, R6.160.4, R6.165.7, R6.170, R6.175, R6.180, R6.185, R6.190, R7.190, R7.210, R8.230, R8.270

Same: Audax 200, Audax 220, Diamond 230, Diamond 270, Fortis 120.4, Fortis 130.4, Fortis 140, Fortis 140.4, Fortis 150, Fortis 150.4, Fortis 160, Fortis 160.4, Fortis 180, Fortis 190, Fortis 210, Iron 100, Iron 110, Iron 115, Iron 125, Iron 130, Iron 135, Iron 140, Iron 150, Iron 155, Iron 160, Iron 165.7, Iron 170, Iron 175, Iron 180, Iron 185, Iron 190, Iron³ 190, Iron³ 210
