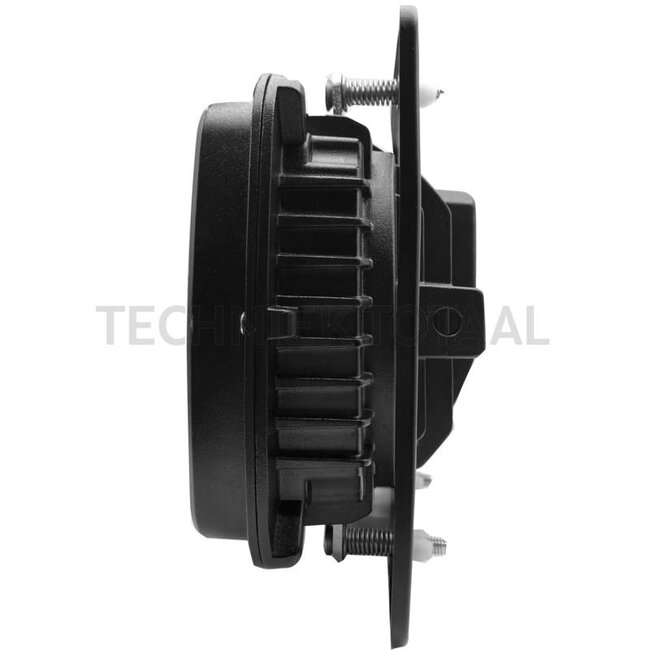

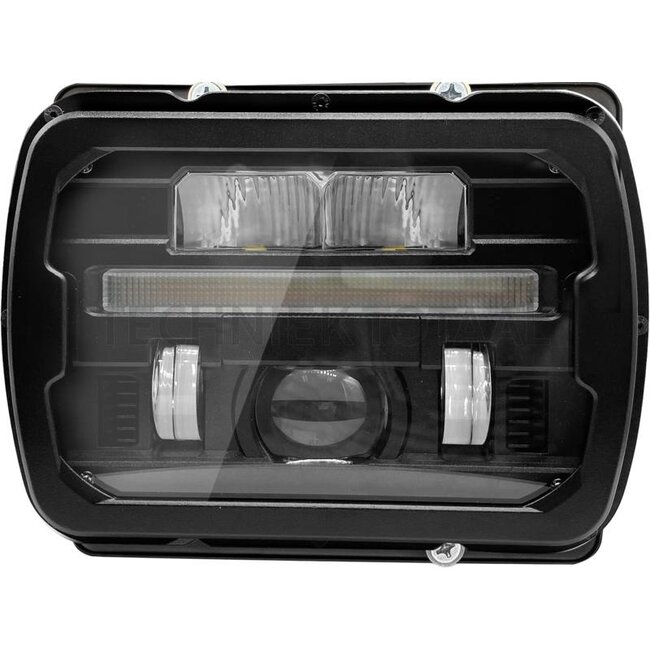

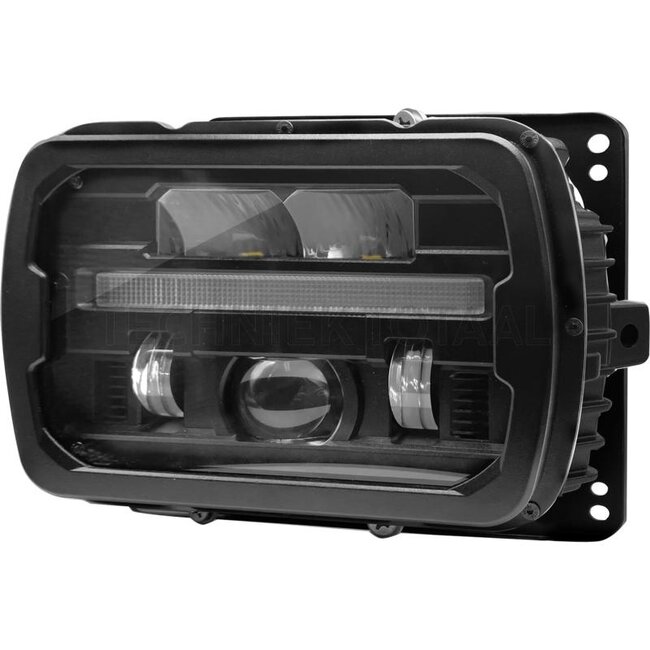

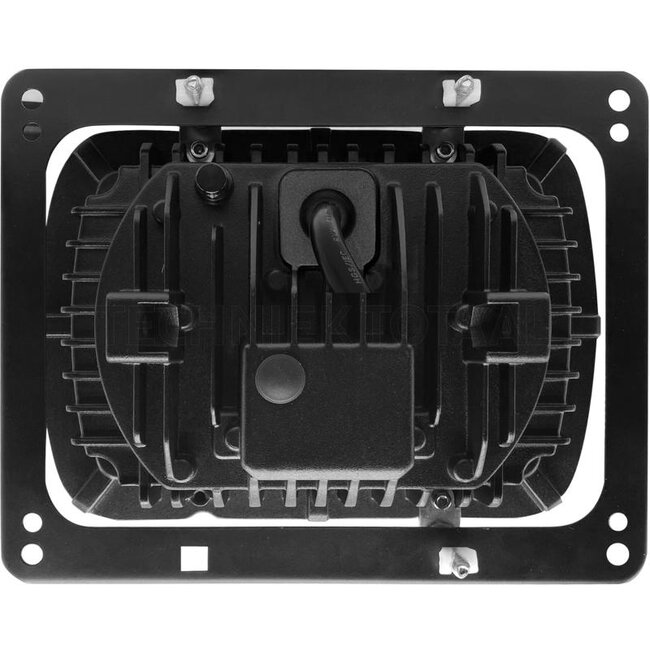

GRANIT LED main headlight

Technical data:

• Test mark: ECE R10, CE, UKCA, ROHS
• Light colour (K): 6000

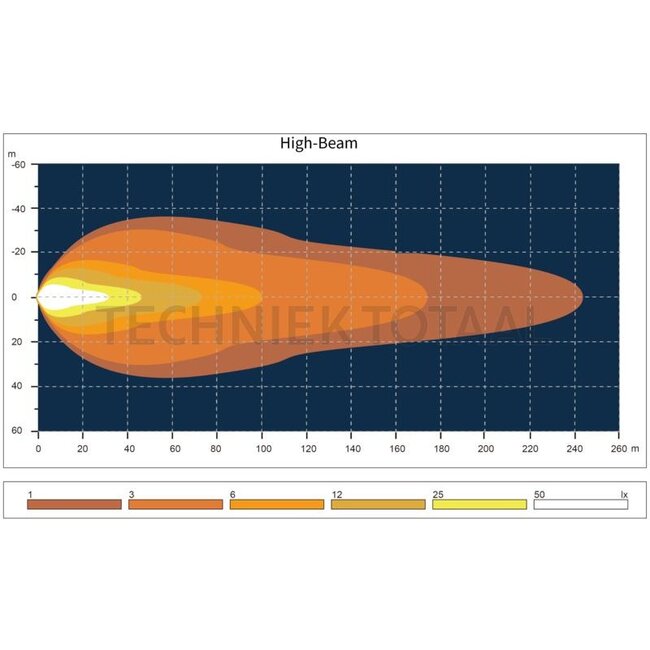

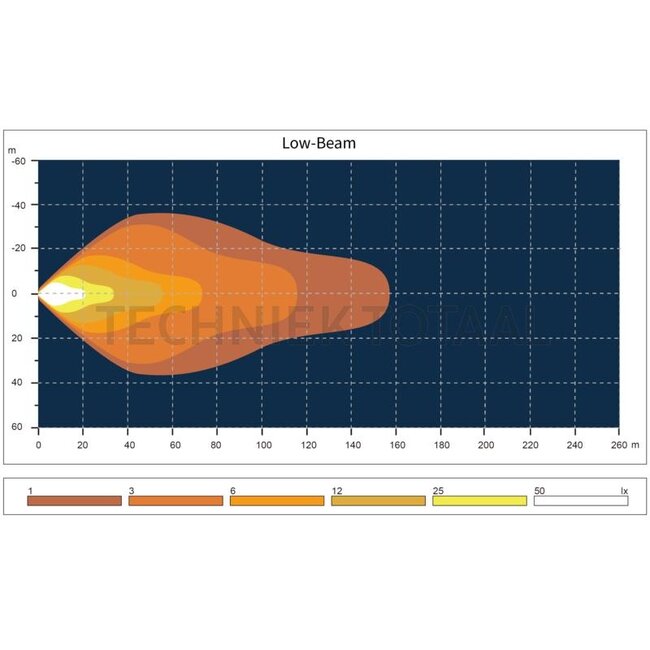

• Additional information: Luminous flux Theoretical Full beam: 5850 lm Dipped beam: 3000 lm Effective Full beam: 3800 lm Dipped beam: 1650 lm
• EMC: CISPR 25 class 3
• Bulb: LED
• Housing material: Aluminium
• Operating temperature (°C): -40 / +50°C
• Light function: Dipped beam, full beam, position light
• Voltage range (V): 10 - 30
• Cable length (mm): 180
• Nominal voltage (V): 12 / 24
• Connection: H4
• Protection class: IP6K9K
• Bulbs included: Yes
• Colour: Black

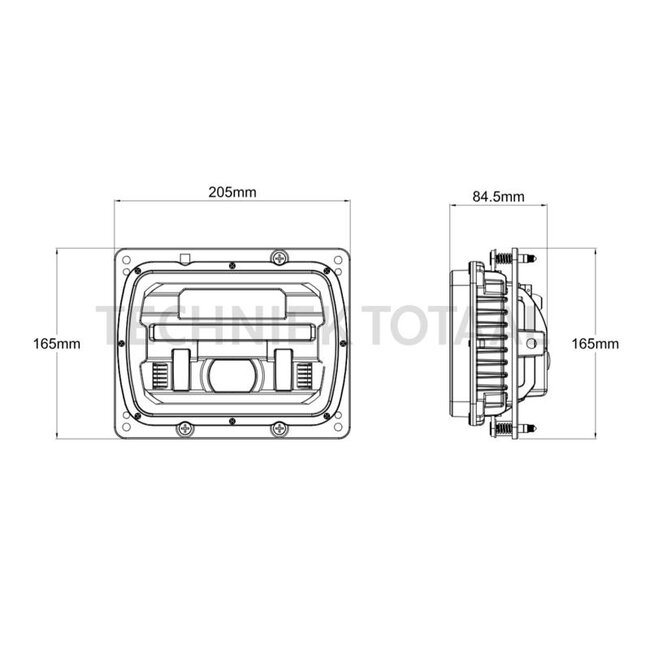

• Dimensions W x H x D (mm): 205 x 165 x 84.5

Suitable for:

Case IH: AVJ 55, AVJ 60, AVJ 70, VJ 60, VJ 70, VJ 80

Fiat: 55-46, 60-46, 65-46, 55-56, 60-56, 65-56, 70-56, 60-66, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 S, 80-66, 80-66 S, 466, 566, 666, 766, 580, 680, 780, 880, 980, 1180, 1280, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 60-93, 65-93, 72-93, 82-93, 88-93, 446, 60-65, 60-65 M, 60-75, 60-75 M, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 85-55, 88-85, 95-55, 100-55, 160-55
