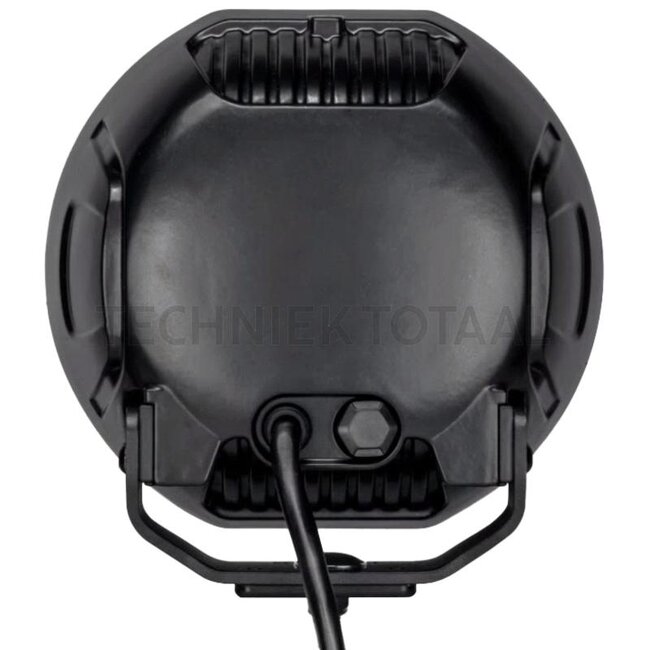

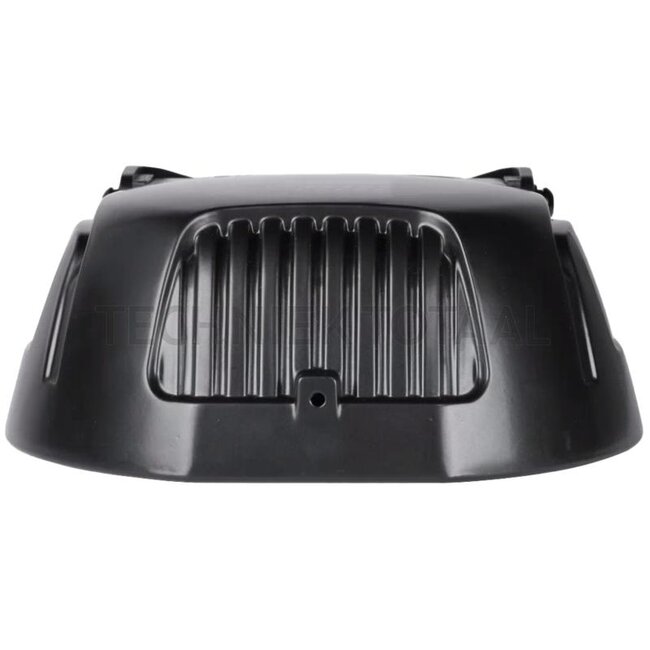

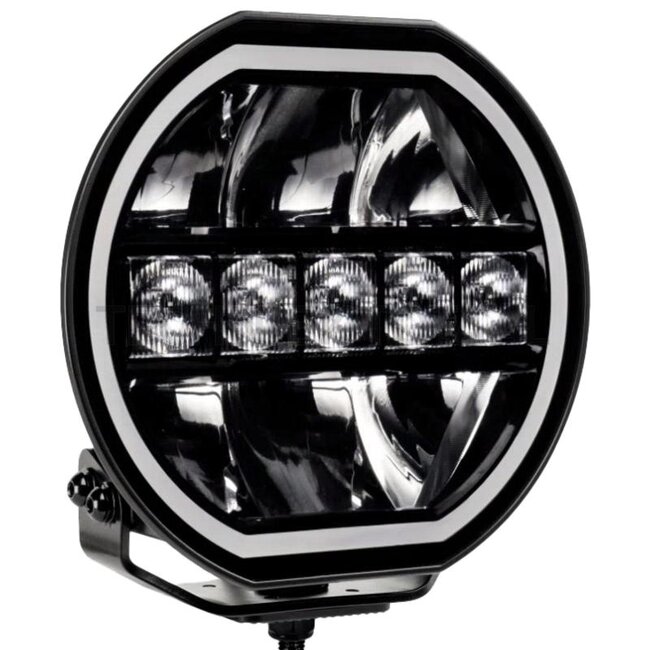

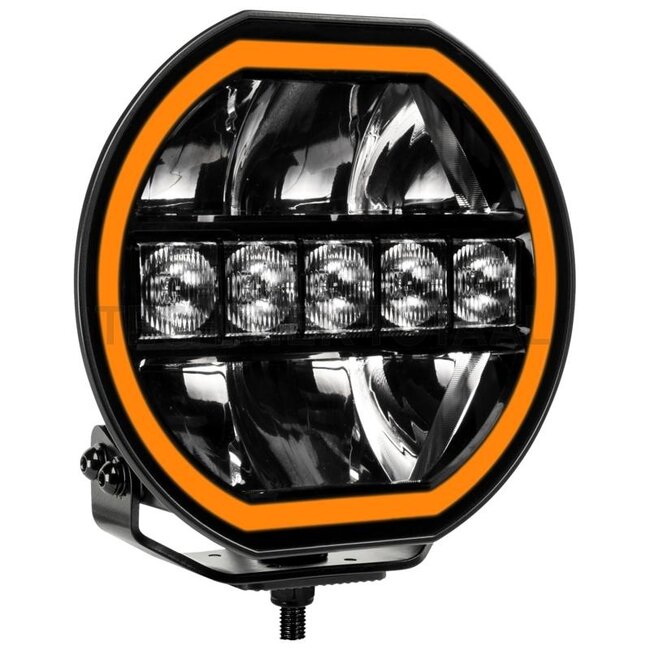

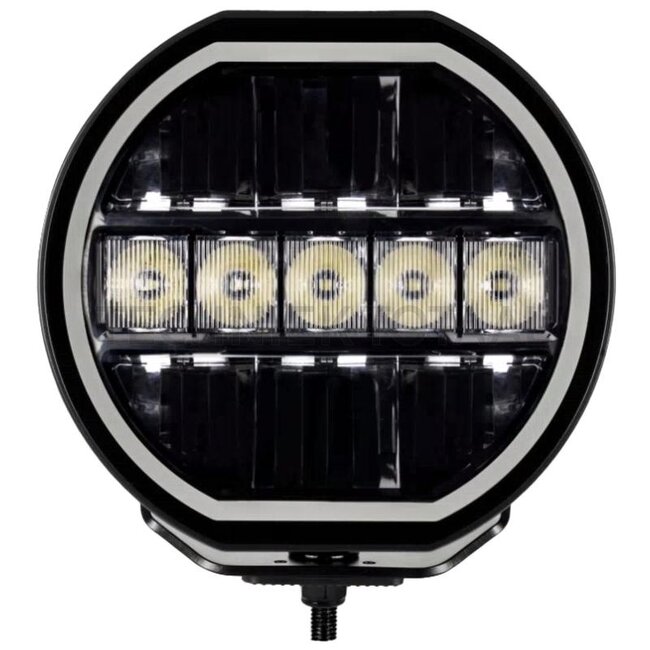

GRANIT LED high-beam headlight 7”
With position light and boost function
Technical data:
- Theoretical luminous flux (lm): 6948
- Bulb: LED
- Protection class: IP68 / IP69K
- Connection: DT 4P
- Version: High-beam headlight with boost function and position light
- Nominal voltage (V): 12 / 24

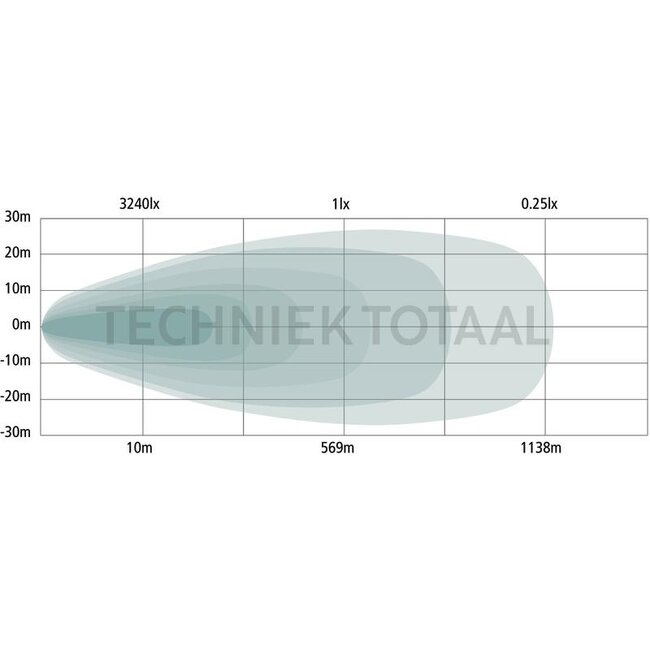

- Effective luminous flux (lm): 1140 / 4062
- EMC: Radio interference suppression according to ECE R10
- No. of LEDs: 18x CREE LED
- Cable length (mm): 500 +330
- Current (A): 1.38A@12V 0.67A@24V / 5.97A@12V 2.95A@24V
- Bulbs included: Yes
- Test mark: CE UKCA / RoHS / ECE R10 / R148 / R149

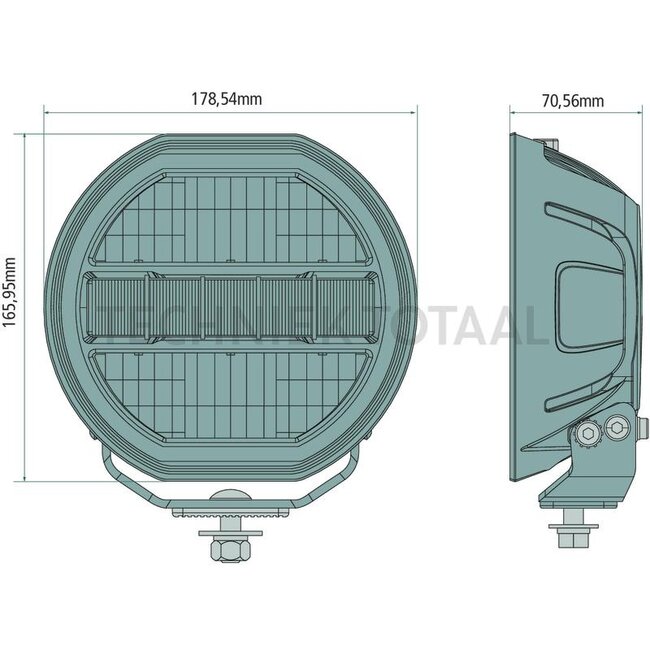

- Dimensions W x H x D (mm): 176.5 X 166
- Housing material: Aluminium
- Light function: High beam + position light + boost
- Form: Round
- Operating temperature (°C): -30℃ / +65℃
- Power (watts): 16.7 / 60.4
- Light colour (K): 5700
- Power consumption (W): 108
- Voltage range (V): 10 - 30
