LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
9,4688 reviews
(0)
-9%
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
-9%
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
-9%
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
-9%
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20
LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20

LED main headlight round 144,5 x 89,3 mm, H4, 12/24 V | 2.8029.820.0/20

€135,23
€123,10 Incl. 21% VAT
€101,74 Excl. VAT
In stock

Protection class: IP6K9K, IP67 | Outer Ø (mm): 144,5 | Light function: Full beam, dipped beam, side light | Power consumption (W): Fernlicht: 24W Abblendlicht: 17W Standlicht: 2W Fernlicht: 2A Abblendlicht: 1,42A Standlicht: 0,17A | Bulb: LED | EMC: CISPR Read more.

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

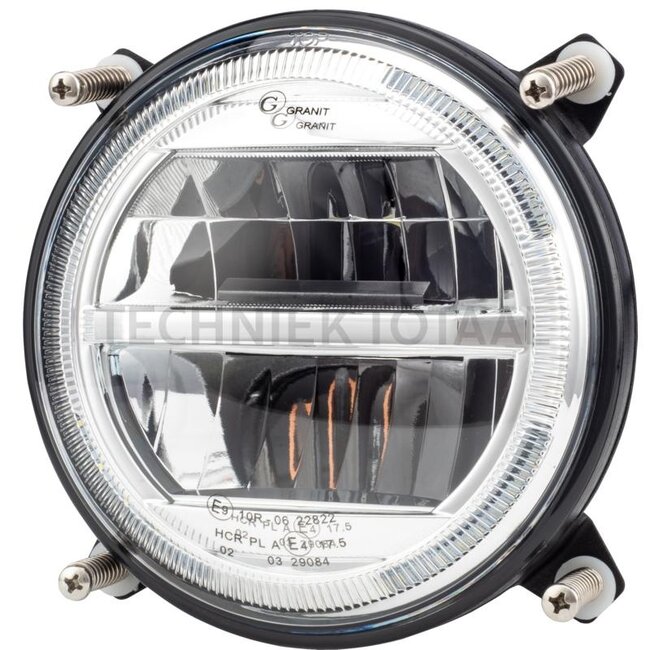

LED main headlight

Technical data:

  • Protection class: IP6K9K, IP67
  • Outer Ø (mm): 144,5
  • Light function: Full beam, dipped beam, side light
  • Power consumption (W): Fernlicht: 24W Abblendlicht: 17W Standlicht: 2W Fernlicht: 2A Abblendlicht: 1,42A Standlicht: 0,17A
  • Bulb: LED
  • EMC: CISPR 25 class 3
  • Connection: H4 connector
  • Operating temperature (°C): -40 / +50°C
  • Material: Aluminium
  • Form: Round

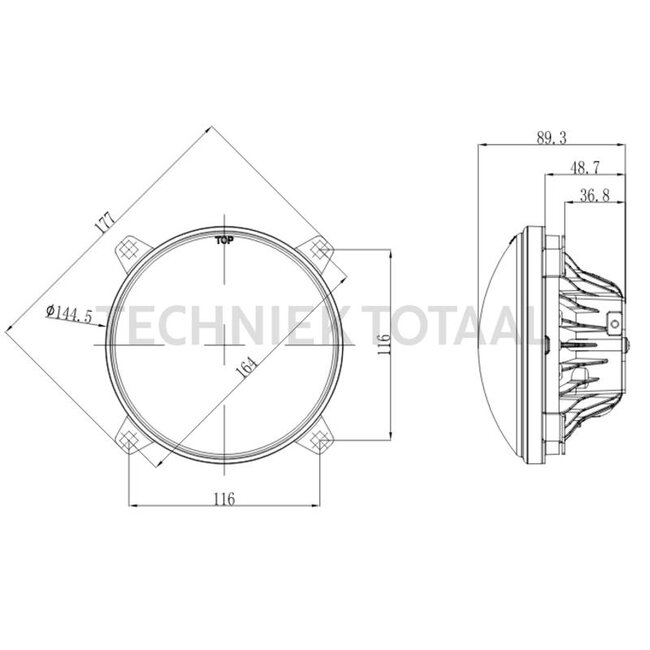

  • Dimensions W x H x D (mm): 144.5 x 89.3mm
  • Depth (mm): 89,3
  • Test mark: CE, UKCA, ROHS, ECE R10, R112, R7
  • Nominal voltage (V): 12 / 24
  • Voltage range (V): 10 - 30
  • Light colour (K): 5700-6500
  • Additional information: Luminous flux: Effective: Full beam: 1850 lm, dipped beam: 950 lm
  • Bulbs included: Yes
  • Cable length (m): 0.21

Suitable for:

Deutz-Fahr: AgroCompact 60, AgroCompact 70, AgroCompact 75, AgroCompact 80, AgroCompact 90, AgroCompact 100, Agrokid 25, Agrokid 35, Agrokid 45, Agrolux 50, Agrolux 57, Agrolux 60, Agrolux 67, Agrolux 70, Agrolux 80, Agrolux 90, Agroplus 60, Agroplus 67, Agroplus 70, Agroplus 75, Agroplus 77, Agroplus 80, Agroplus 85, Agroplus 87, Agroplus 90, Agroplus 95, Agroplus 100

Further information

Article number
19642857
EAN Code
4059139551835
SKU
19642857
