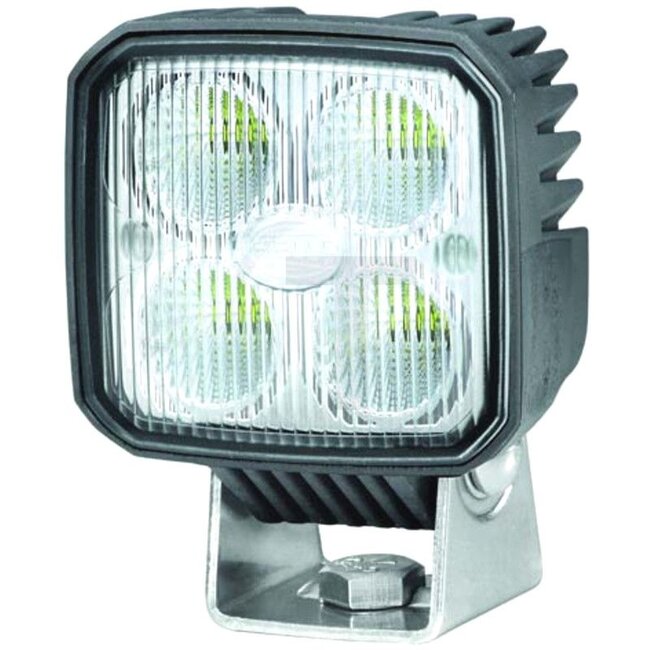

LED work light with ground illumination from HELLA, rated at 15 W with an effective luminous flux of ≈ 1200 lm. The light has 4 LEDs, a ground illumination light function and a patterned diffusing lens with a light aperture of □ 90 mm. It operates at 12 / 24 V and is fitted with a DEUTSCH plug and a 150 mm cable. The square plastic housing measures 95 x 122 x 53 mm, is black and has protection class IP6K7/IP6K9K. It can be mounted upright or hanging using a swivel mounting bracket. The light colour is ≈ 6500 K. Test marks: ADR/GGVS and EMC.
| Article number | 4551GA 996284081 |
|---|---|
| EAN | 9002920158510 |
| Weight | 390 g |
| Nominal voltage | 12 / 24 V |
| Bulb | LED |
| Bulbs included | Yes |

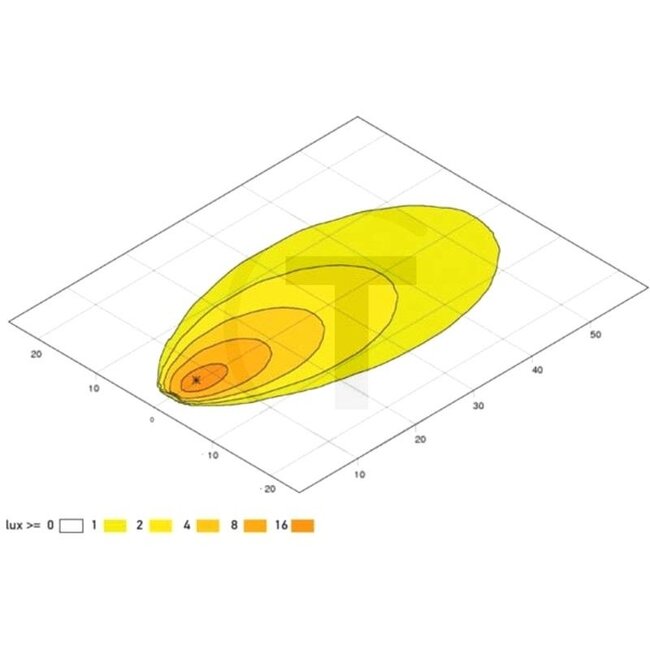

| Light function | Ground illumination |

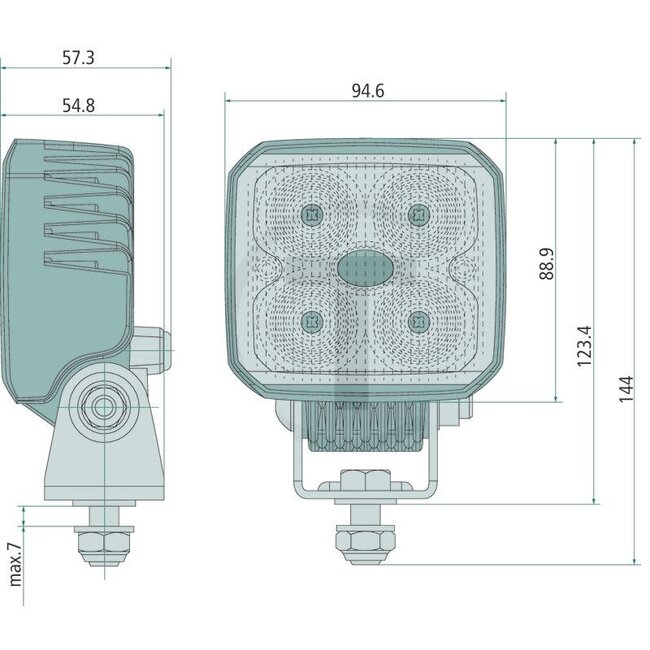

| Dimensions W x H x D | 95 x 122 x 53 mm |
| Mounting type | Mounting, bolted |
| Connection | DEUTSCH plug |
| Protection class | IP6K7/IP6K9K |
| Form | Square |
| Housing | plastic |
| Diffusing lens | polyamide 12 |
| Fixing | Swivel mounting bracket |
| Type | Q90 compact LED |
| Version | Diffusing lens: patterned |
| No. of LEDs | 4 |
| Cable length | 150 mm |
| Test mark | ADR/GGVS tested, ECE-R10, EMC |
| Power consumption | 15 W |
| Type | LED |
| Effective luminous flux | ≈ 1200 lm |
| Light colour | ≈ 6500 K |
| Light aperture (mm) | □ 90 |
| Housing colour | Black |
| Eligible | De minimis |
