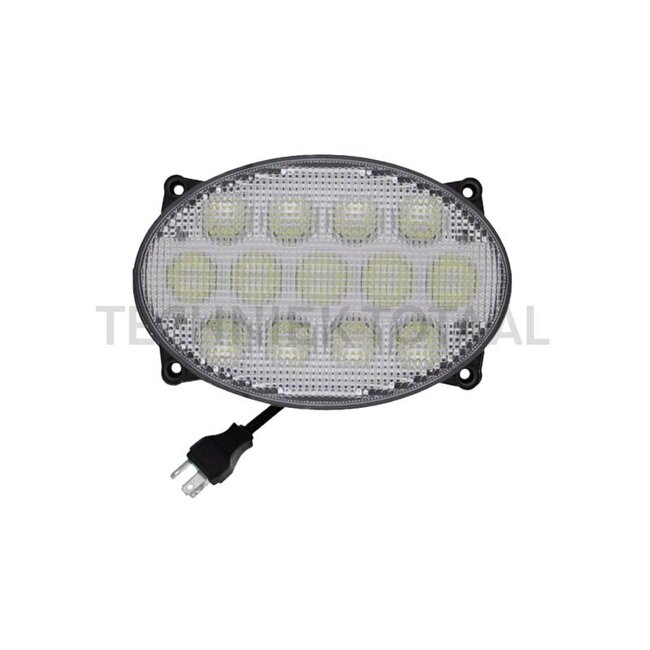

GRANIT LED work light

Floodlight

Technical data:

• EMC: CISPR 25 class 3
• Power (watts): 40
• Voltage range (V): 10 - 30
• Bulbs included: Yes
• Nominal voltage (V): 12 / 24
• Test mark: ECE R10, CE, UKCA, RoHS, REACH
• Cable length (mm): 120
• Mounting type: Flush mounting
• Effective luminous flux (lm): 3800
• Power consumption (W): 65
• Light colour (K): 6000
• No. of LEDs: 13 x 5W
• Light function: Floodlight
• Connection: 9006 socket
• Form: Oval
• Protection class: IP69K
• Housing material: Aluminium
• Bulb: LED
• Fixing: M4x15
• Theoretical luminous flux (lm): 5200

Suitable for:

Case IH: 420, 620, 5088 (4/08-), 5130 Tier 4 (1/12-12/12), 6088, 6130 Tier 4 (1/12-12/12), 7010, 7088, 7120, 7130 Tier 4 (1/12-12/12), 7230 Tier 4 (3/12-1/13), 8010, 8120, 8230 Tier 4 (3/12-1/13), 9010, 9120, 9230 Tier 4 (3/12-1/13), AFX 8010

John Deere: 8225R, 8245R, 8270R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335RT, 8345R, 8345RT, 8360RT, 7720, 7820, 7920, 7630, 7730, 7830, 7930, 8120, 8120T, 8220, 8220T, 8320, 8320T, 8420, 8420T, 8520, 8520T, 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530, 9120, 9220, 9320, 9320T, 9420, 9420T, 9520, 9520T, 9620, 9620T, 9230, 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T
