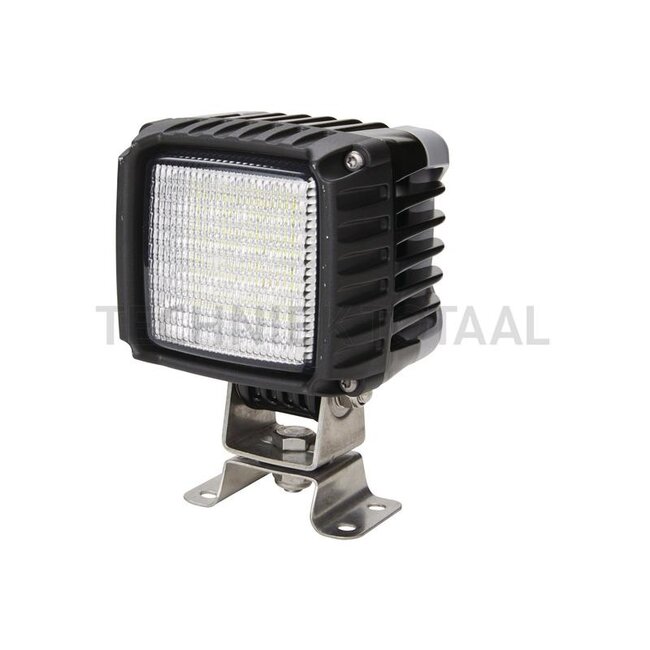

HELLA LED work light
Replaces: 1GA 996 192-081
Technical data:
- Mounting type: Vertical
- Additional information: • With reverse polarity protection diode • Without vibration damper • Vertical four-point mounting
- Nominal voltage (V): 12 / 24

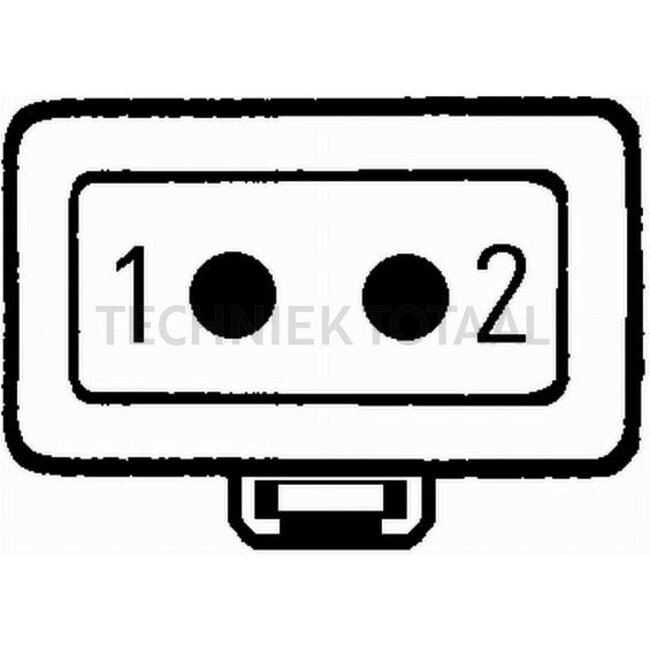

- Connection: DEUTSCH plug
- Light aperture (mm): □ 83
- Mounting size (mm): 157
- Housing colour: Black, rear housing cover blue
- Bulbs included: Yes
- Test mark: ADR/GGVS tested
- Light colour (K): 5700
- Light function: Close-range illumination
- Type: Power Beam 3000
- Eligible: Environmental protection and safety (formerly de minimis)
- Dimensions W x H x D (mm): 115 x 108 x 110
- Bulb: LED
- Effective luminous flux (lm): ≈ 3000
- Hole spacing (mm): 27
- Power consumption (W): 43
- Material: Housing: aluminium, lens: glass
- Protection class: IP6K7 / IP6K9K
- No. of LEDs: 16
- Form: Square
- Number of pins: 2
