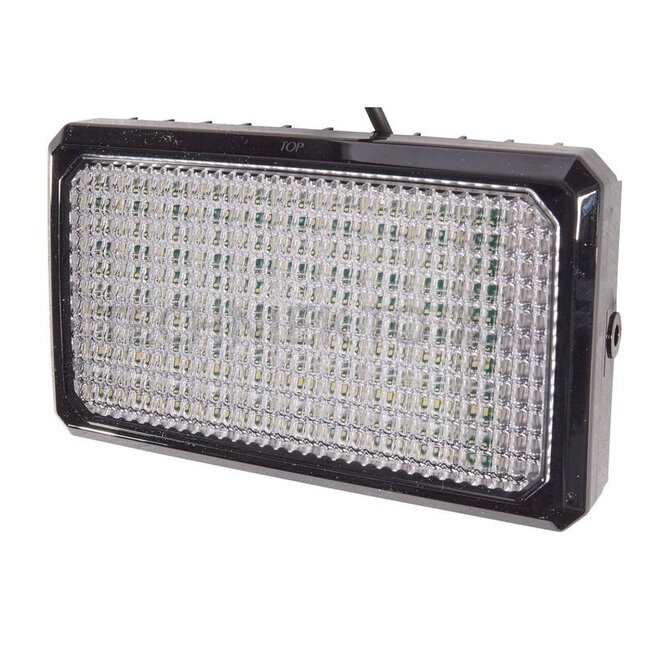

HELLA LED work light
Replaces: 1GD 996 193-011
Technical data:
- Mounting type: Vertical, bracket mounting
- Power consumption (W): 11
- No. of LEDs: 60
- Cable length (mm): 2000
- Additional information: • With bolts • With bracket • Flat design • Reverse polarity protection, overvoltage protection and overheating protection
- Bulb: LED
- Dimensions W x H x D (mm): 190 x 113 x 47
- Form: Rectangular
- Housing colour: Black
- Nominal voltage (V): 12 / 24
- Type: Flat Beam 1000
- Effective luminous flux (lm): ≈ 1100
- Protection class: IP67 / IP6K9K
- Light function: Close-range illumination
- Eligible: Environmental protection and safety (formerly de minimis)
- Light aperture (mm): 165 x 90
- Material: Housing: plastic, lens: plastic
- Test mark: EMC
- Bulbs included: Yes
- Connection: Open cable ends
- Voltage range (V): 9 - 33
- Light colour (K): 6500
