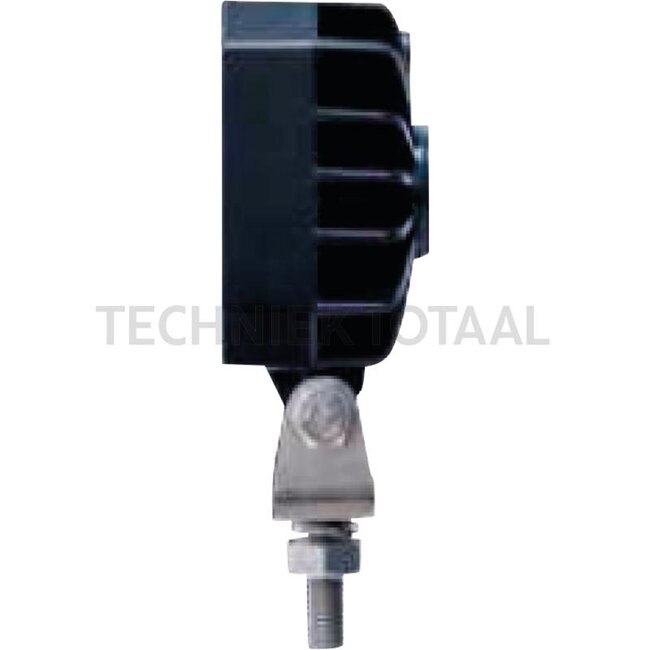

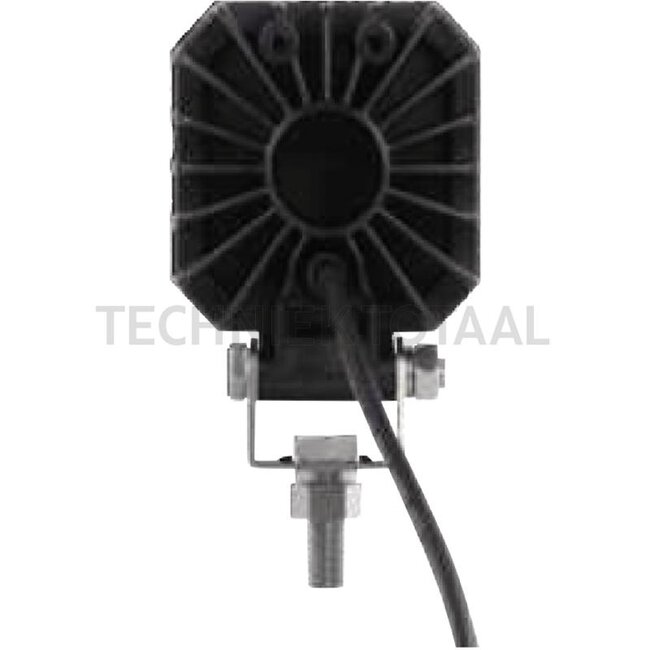

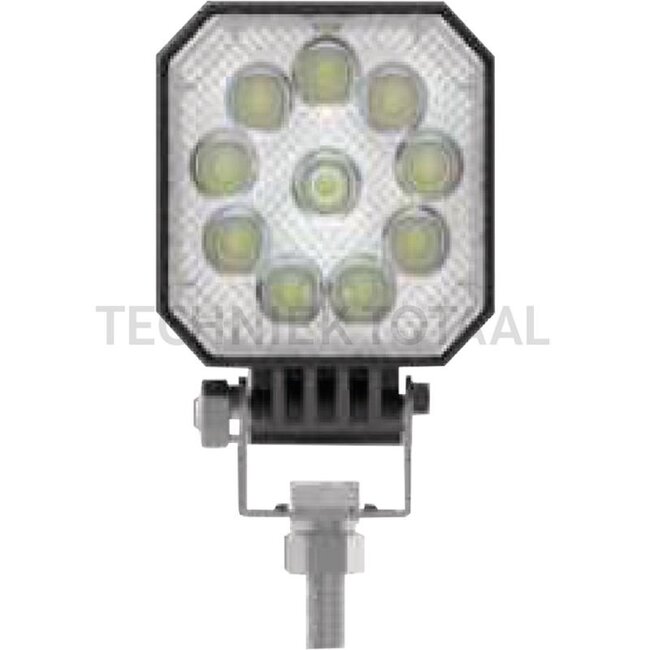

ASPÖCK LED work/reversing light 42-1009-417
1600 lm, 10 - 59 V, 10 W, floodlight, 5000 mm cable with ASS2/socket, ADR + EMC tested, protection class: IP69K, approved according to ECE-R23
Technical data:
- Light function: Far-reaching illumination
- Voltage range (V): 10 - 59
- Depth (mm): 50
- Bulbs included: Yes
- Type: LED
- Power (watts): 10
- Effective luminous flux (lm): ≈ 1600
- Nominal voltage (V): 12 / 24
- Brightness (lumens): 1600
- Form: Square
- Bulb: LED
- Test mark: ADR, EMC, ECE-R23
- Height (mm): 78,8
- Width (mm): 78,8
- Mounting type: Attachment, bracket mounting
- Additional information: • U-bolt with M8 screw
- Eligible: Umweltschutz und Sicherheit (vormals De-minimis)
- Cable length (mm): 5000
- Connection: ASS2 / socket
- Protection class: IP69K
- No. of LEDs: 10
- Dimensions W x H x D (mm): 78,8 x 78,8 x 50
