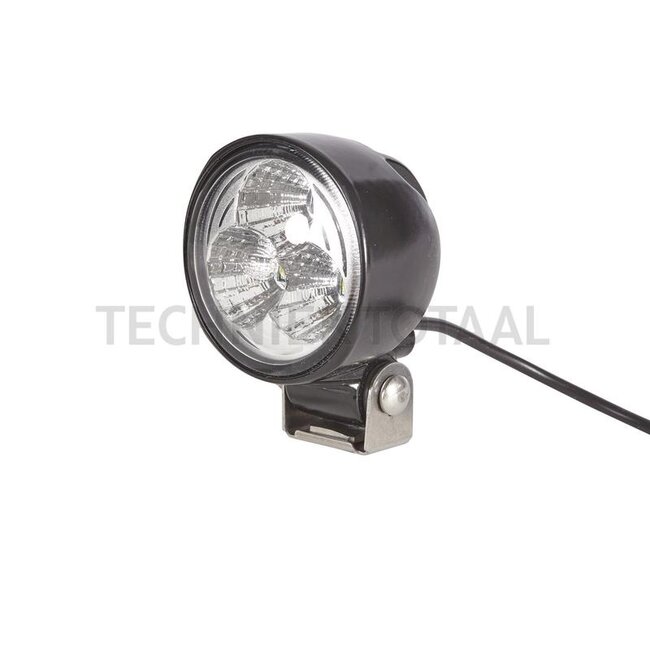

HELLA LED work light spotlight with a power consumption of 30 W and an effective luminous flux of ≈ 2500 lm. The round aluminium housing is black and the light is fitted with 3 LEDs of the Module 70 LED Generation IV type, with a light colour of 6500 K. It is rated for 12 / 24 V and has protection class IP6K8 / IP6K9K, a cable length of 190 mm, a DEUTSCH plug and a mounting size of 110 mm. The light is mounted vertically and carries the test marks ECE R10 and EMC.
Reference numbers:1G0 996 476-241
| Article number | 4550010183 |
|---|---|
| EAN | 9002920156233 |
| Weight | 470 g |
| Effective luminous flux | ≈ 2500 lm |
| Test mark | ECE R10; EMC |
| Cable length | 190 mm |

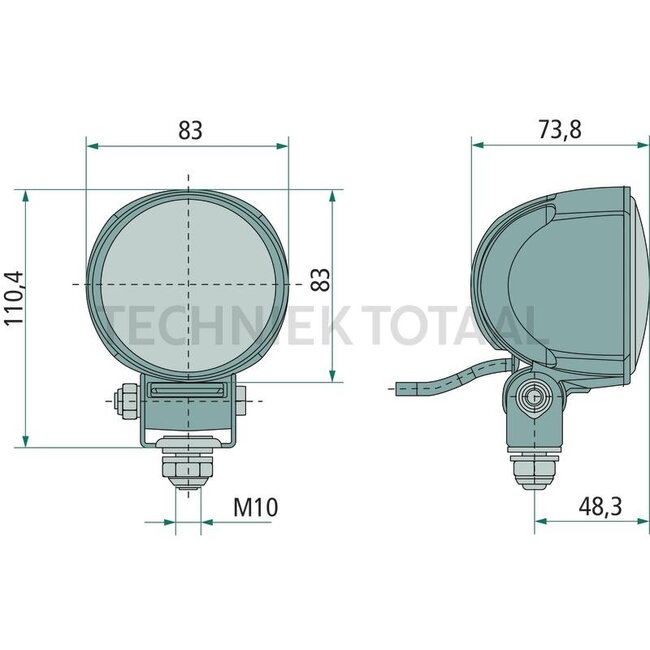

| Dimensions W x H x D (mm) | Ø 83 x 74 |
| Housing colour | Black |
| Bulbs included | Yes |
| Power consumption | 30 W |
| Protection class | IP6K8 / IP6K9K |
| Bulb | LED |
| Connection | DEUTSCH plug |
| Light colour | 6500 K |
| Nominal voltage | 12 / 24 V |
| Mounting size | 110 mm |
| Eligible | Environmental protection and safety (formerly de minimis) |
| No. of LEDs | 3 |
| Type | Module 70 LED Generation IV |
| Mounting type | Vertical |
| Light function | Far-reaching illumination |
| Form | Round |
| Material | Housing: aluminium |
