GRANIT Blue LED work light
Technical data:
- Luminous flux (lm): 500
- Connection: Deutsch DT
- Form: Square
- Test mark: 2004/108/EC
- Mounting size (mm): 140
- Width (mm): 100
- Power (watts): 20
- Height (mm): 100

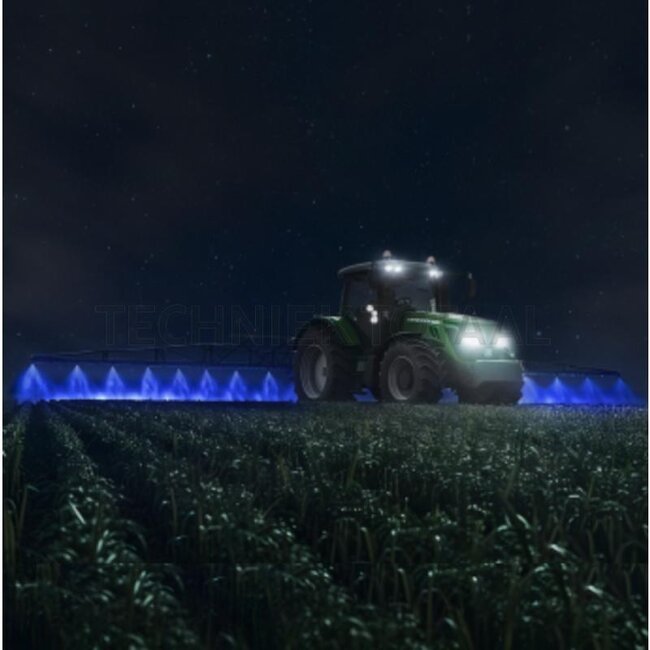

- Description: Recommended for sprayers used in agriculture. Allows spraying to be monitored at dusk and at night by monitoring the operation of individual nozzles. The blue light colour makes it easier to see the sprayed liquid jet.
- Depth (mm): 76
- Dimensions W x H x D (mm): 100 x 100 x 76
- Bulbs included: Yes
- Fixing: Screw, M8
- Operating temperature (°C): -40°C - +80°C
- Material: Material
- Bulb: LED
- Additional information: Distribution angle: 6° Mating connector: Deutsch DT06-2S 2-pin - 50750390595
- No. of LEDs: 6
- Protection class: IP67, IP69K
- Light function: Blue sprayer lighting
- Mounting type: Freestanding, possible in any position (vertical, hanging, side)
- Housing material: Aluminium
- Voltage range (V): 12 - 48
