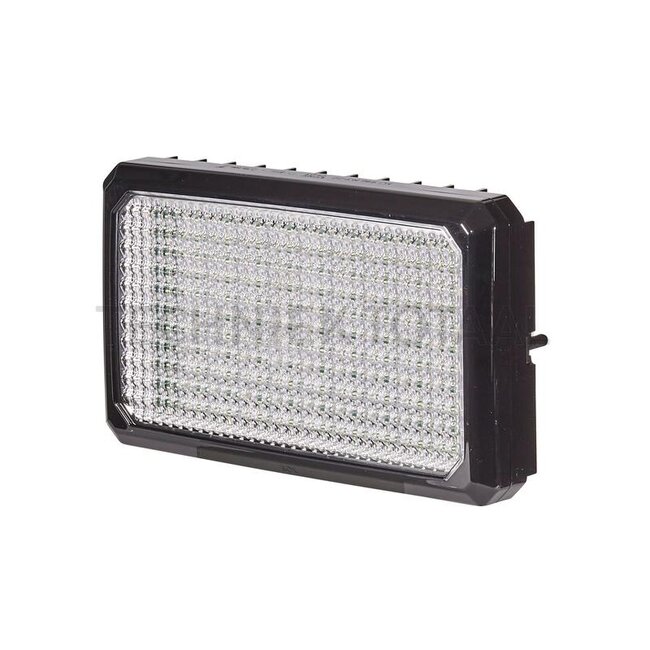

HELLA LED work light
Replaces: 1GD 996 193-001
Technical data:
- Form: Square
- No. of LEDs: 60
- Light aperture (mm): 165 x 90
- Protection class: IP67/IP6K9K
- Mounting type: Vertical
- Light function: Close-range illumination
- Type: Flat Beam 1000
- Light colour (K): 6500
- Nominal voltage (V): 12 / 24
- Operating temperature (°C): -40 / +50
- Housing colour: Black

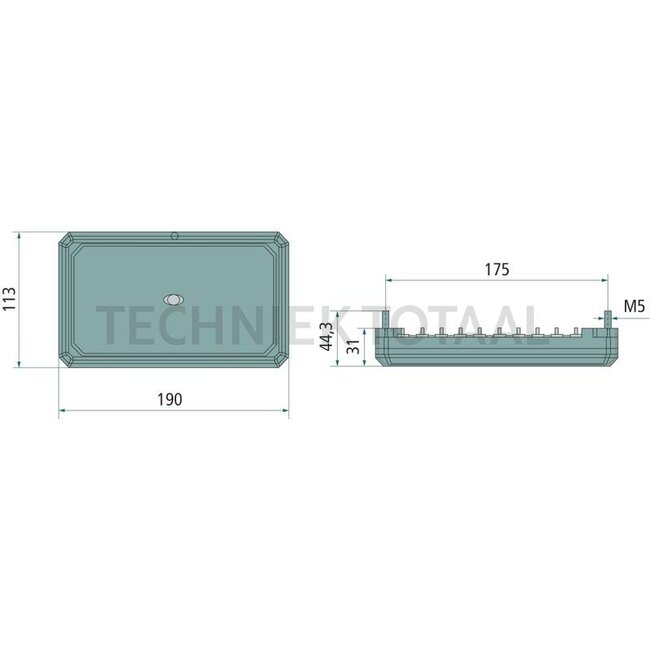

- Dimensions W x H x D (mm): 190 x 113 x 31
- Eligible: De minimis
- Bulbs included: Yes
- Test mark: E1; EMC; ECE R10
- Bulb: LED
- Cable length (mm): 2000
- Material: Housing: plastic, lens: plastic
- Current (A): 0,9 (12 V) / 0,45 (24 V)
- Power consumption (W): 11
- Voltage range (V): 9 - 33
- Connection: Open cable ends
- Additional information: • Flat design • Reverse polarity protection, overvoltage protection and overheating protection • 45° illumination brings light into the immediate working area without tilting the headlight
- Effective luminous flux (lm): ≈ 1100
