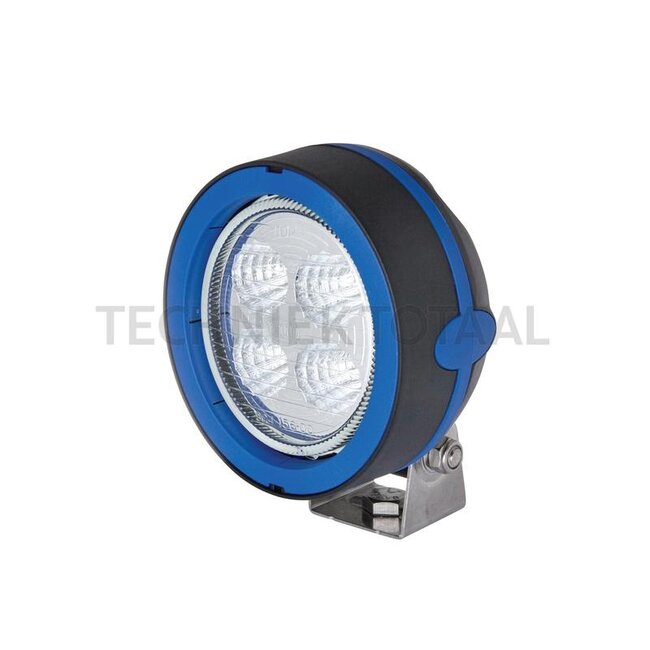

HELLA LED work light
Replaces: 1GM 996 136-312
Technical data:
- Test mark: ECE R10; EMC
- Bulb: LED
- Light aperture (mm): 83 x 92
- Light function: Close-range illumination
- Voltage range (V): 9 - 33

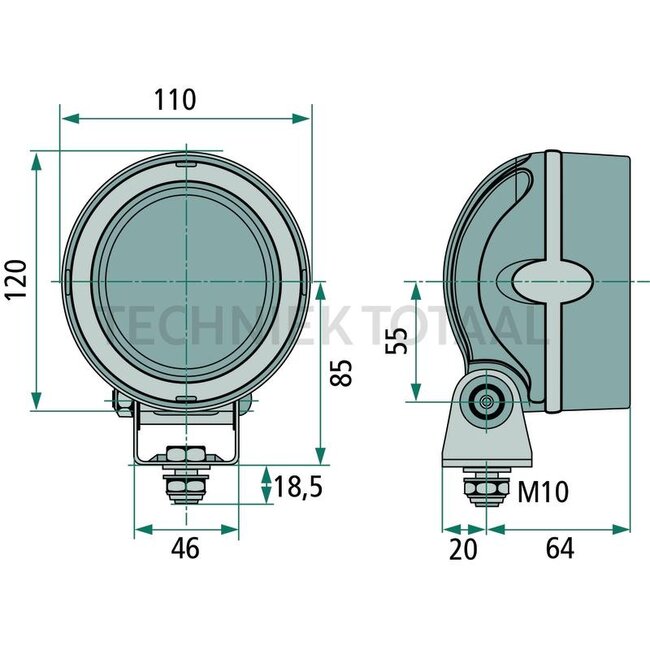

- Dimensions W x H x D (mm): 110 x 145 x 83
- Nominal voltage (V): 12 / 24
- Cable length (mm): 2000
- Operating temperature (°C): -40 / +50
- Mounting type: Vertical; flange mounting
- Current (A): 3,6 (12 V) / 1,8 (24 V)
- Light colour (K): 6500
- Effective luminous flux (lm): ≈ 800
- Type: Mega Beam LED Generation III
- Eligible: De minimis
- No. of LEDs: 4
- Protection class: IP67/IP6K9K
- Bulbs included: Yes
- Form: Oval
- Additional information: • With cooling fins • Reverse polarity protection, overvoltage protection and overheating protection • With cable
- Housing colour: Black, with blue decorative ring
- Connection: Open cable ends
- Bending angle: 3 - 10
- Material: Housing: aluminium, lens: plastic, swivel base: stainless steel, reflector: plastic
- Power consumption (W): 13
Suitable for:
Fendt: Fendt 819 (Typ 832), Fendt 822 (Typ 833), Fendt 824 (Typ 834), Fendt 826 (Typ 835), Fendt 828 (Typ 836), Fendt 922 (Typ 919), Fendt 924 (Typ 922), Fendt 924 (Typ 941), Fendt 927 (Typ 925), Fendt 927 (Typ 942), Fendt 930 (Typ 928), Fendt 930 (Typ 943), Fendt 933 (Typ 931), Fendt 933 (Typ 944), Fendt 936 (Typ 934), Fendt 936 (Typ 945), Fendt 939 (Typ 946)
