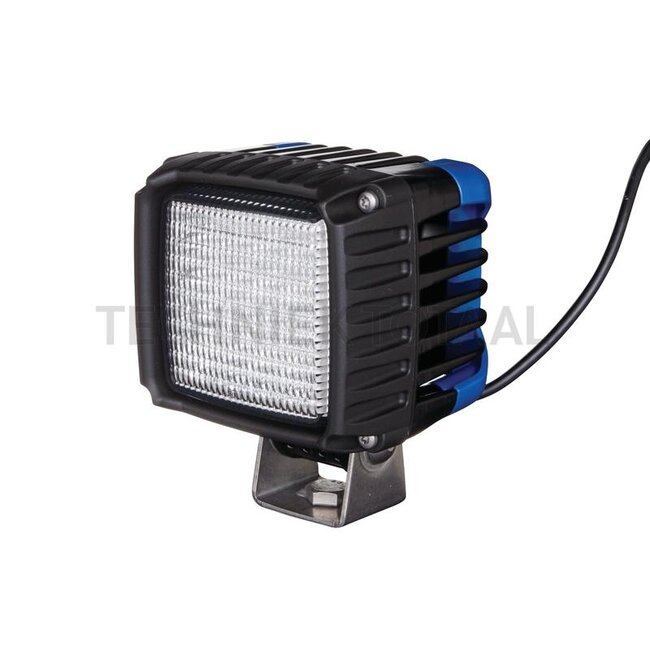

HELLA LED work light
Replaces: 1GA 996 189-031
Technical data:
- Type: Power Beam 2000
- Cable length (mm): 2000
- Material: Housing: aluminium, lens: glass, swivel base: stainless steel
- Bulbs included: Yes
- Test mark: E1; ECE R10
- Eligible: De minimis
- Operating temperature (°C): -40 / +50
- Power consumption (W): 43

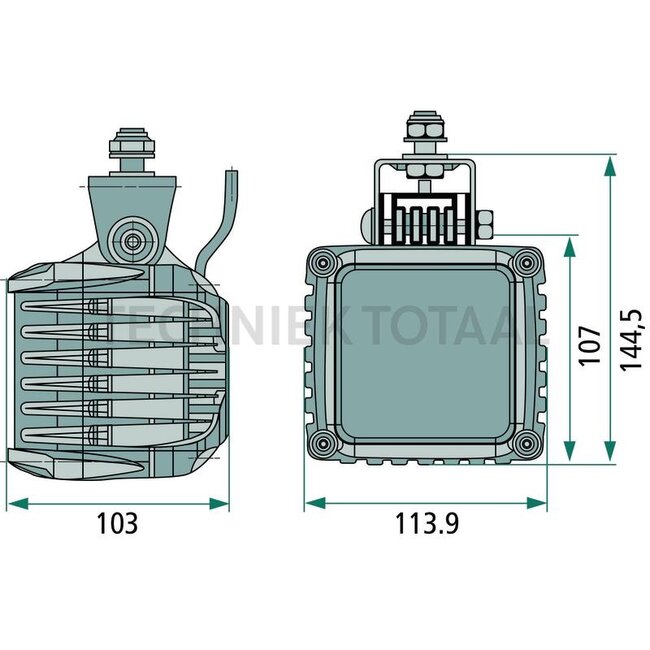

- Dimensions W x H x D (mm): 115 x 108 x 110
- Protection class: IP6K7/IP6K9K
- Housing colour: Black, rear housing cover blue
- Effective luminous flux (lm): ≈ 2000
- Mounting size (mm): 145
- Bulb: LED
- No. of LEDs: 16
- Voltage range (V): 9 - 33
- Nominal voltage (V): 12 / 24
- Light aperture (mm): □ 83
- Mounting type: Hanging
- Light function: Close-range illumination
- Current (A): 3,6 (12 V) / 1,8 (24 V)
- Additional information: • With cooling fins • Reverse polarity protection, overvoltage protection and overheating protection • Rear housing cover made of blue plastic • With bolt • Without vibration damper
- Form: Square
- Light colour (K): 5700
