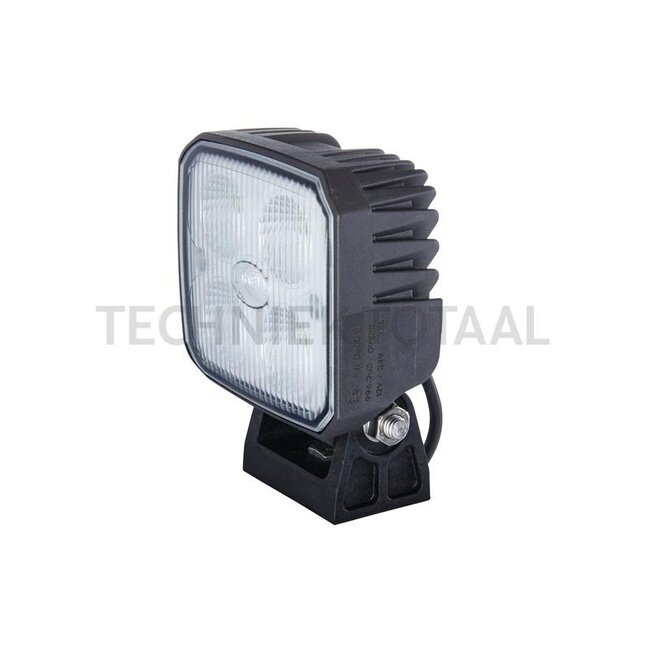

HELLA LED work light
Replaces: 1GA 996 283-002
Technical data:
- Light aperture (mm): 90 x 84
- Material: Housing: plastic, lens: plastic, reflector: plastic
- Power consumption (W): 15
- Nominal voltage (V): 12 / 24
- Current (A): 2,5 (12 V) / 1,25 (24 V)
- Cable length (mm): 500
- Protection class: IP6K8/IP6K9K
- No. of LEDs: 4
- Bulbs included: Yes
- Test mark: ECE R10; EMC
- Type: Q90 LED
- Effective luminous flux (lm): ≈ 1200
- Bulb: LED
- Voltage range (V): 9 - 33
- Light function: Close-range illumination
- Housing colour: Black
- Light colour (K): 6500
- Form: Square
- Operating temperature (°C): -40 / +50
- Mounting type: Vertical

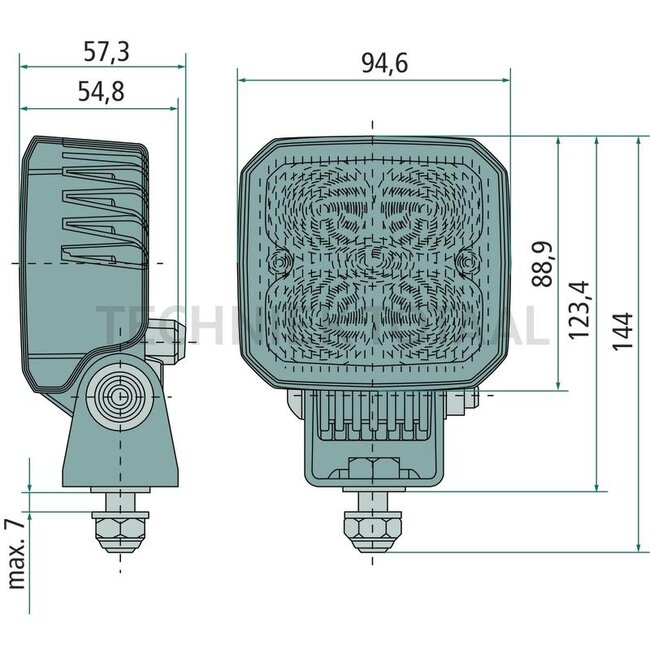

- Dimensions W x H x D (mm): 95 x 121 x 55
- Additional information: • With cooling fins • With swivel base • Reverse polarity protection, overvoltage protection and overheating protection
- Connection: Open cable ends
