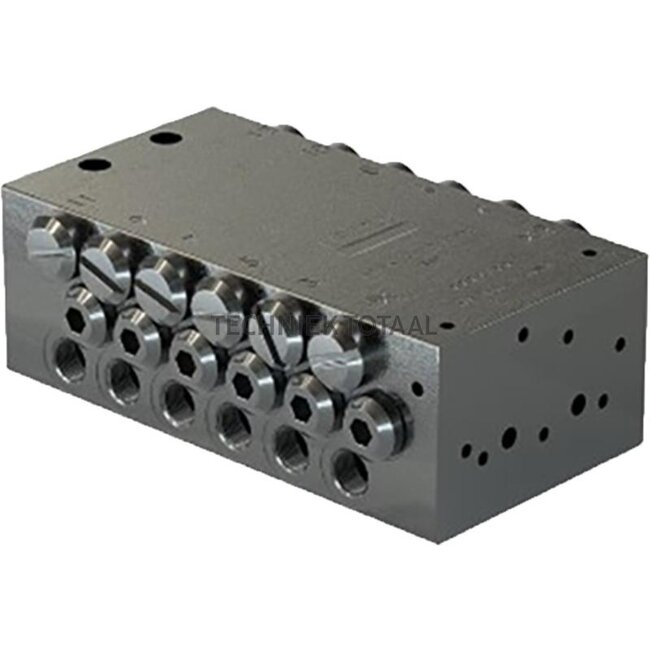

SKF Lubricant distributor SSVD 10, metering, 100 x 60 x 40 mm
Technical data:
- Dimensions: 100 x 60 x 40 mm (L x W x H)
- Delivery volume (cm³): The metering volume is set using metering screws and reaches up to 1.8 cm³ per stroke/outlet
- Series: SSVD
- Material: Steel, black galvanised
- Equipment: Without grease nipple, without line connection, without function monitoring
- Description: Progressive distributor with block design, 6 - 22 outlets, lines Ø 4 and Ø 6 mm can be connected, operating pressure max. 350 bar, grease up to NLGI 2, function monitoring possible
- Version: Metering possible
- Reference no.: 649-29487-1
- Outlet: 10x M10 x 1
- Input: 1x 1/8" thread
