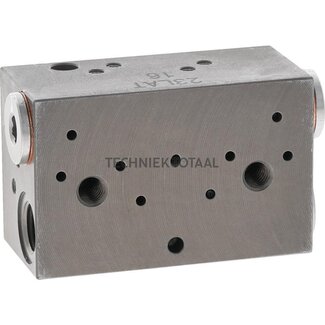

SKF Lubricant distributor SSVD 8, metering, 85 x 60 x 40 mm
Technical data:
- Input: 1/8" thread
- Material: Steel, black galvanised
- Outlet: M10 x 1
- Version: Metering possible
- Delivery volume (cm³): The metering volume is set using metering screws and reaches up to 1.8 cm³ per stroke/outlet
- Dimensions: 85 x 60 x 40 mm (L x W x H)
- Series: SSVD
- Reference no.: 649-29486-1
- Description: Progressive distributor with block design, 6 - 22 outlets, lines Ø 4 and Ø 6 mm can be connected, operating pressure max. 350 bar, grease up to NLGI 2, function monitoring possible
- Equipment: Without grease nipple, without line connection, without function monitoring
