HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
HELLA 9,4688 reviews
(0)
-4%
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
-4%
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
-4%
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043
HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043

HELLA LED headlight Luminator Ø 224,4 mm, chrome, reference number 50 | 20043

€496,22
€477,91 Incl. 21% VAT
€394,97 Excl. VAT
Delivery time on request

Nominal voltage: 12 / 24 V. Bulb: LED. Light function: Full beam (LED), position light (LED). Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm. Mounting type: Attachment. Colour: Lens: transparent/clear. Width: 224,4 mm. Form: Round. Height: 232,5 mm. Techn Read more.

  • Worldwide shipping*
  • Customer rating 9,3/10
  • 30-day return policy
  • 98,000+ technical products

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

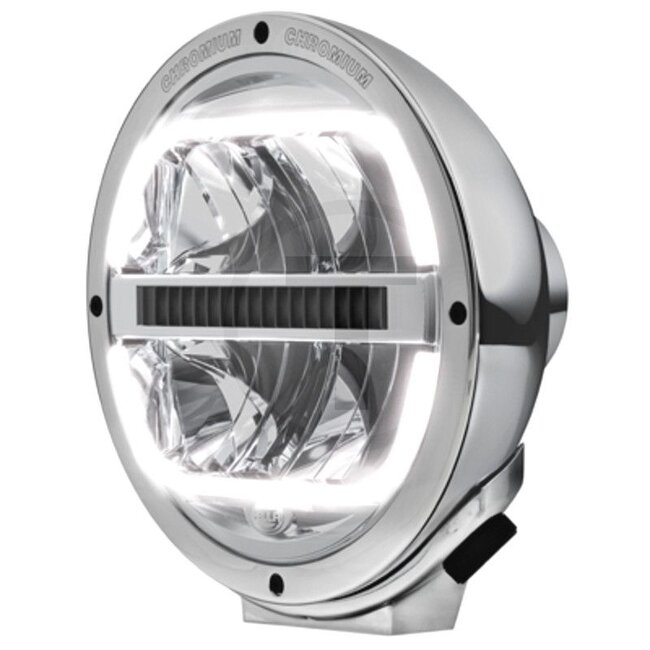

LED headlight Luminator with a diameter of 224,4 mm, chrome housing and transparent, clear lens. The nominal voltage is 12 / 24 V, the bulb is LED, and the light functions are full beam (LED) and position light (LED). The dimensions are 224,4 x 232,5 x 129,6 mm (W x H x D). It is a round headlight for attachment with vertical fixing, protection class IP6K7, IPX9K. The cable length is 800 mm. With bracket.

Specifications HELLA LED headlight Luminator Ø 224,4 mm

Article number4550020043
EAN4082300768893
Weight3,09 kg
Nominal voltage12 / 24 V
BulbLED
Light functionFull beam (LED), position light (LED)

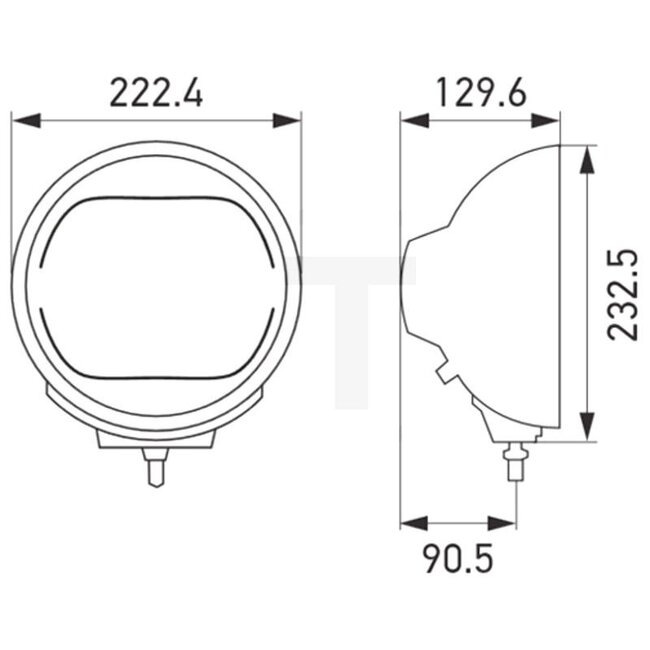

Dimensions W x H x D224,4 x 232,5 x 129,6 mm
Mounting typeAttachment
ColourLens: transparent/clear
Width224,4 mm
FormRound
Height232,5 mm
Technical dataReference number: 50
Depth129,6 mm
FixingVertical
Protection classIP6K7, IPX9K
TypeLuminator
Cable length800 mm
Test markECE-R10, ECE-R112.01, ECE-R7, EMC, EMC
TypeLED
Additional information• With bracket
Housing colourChrome
Diameter224,4 mm
