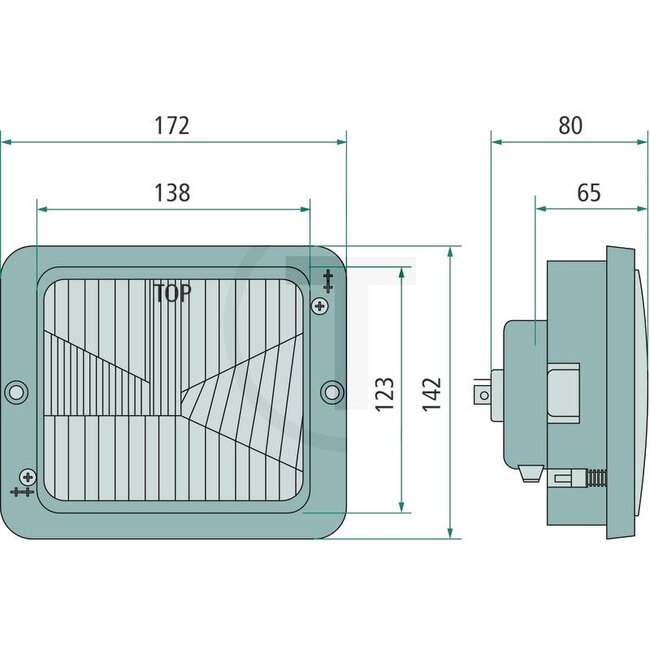

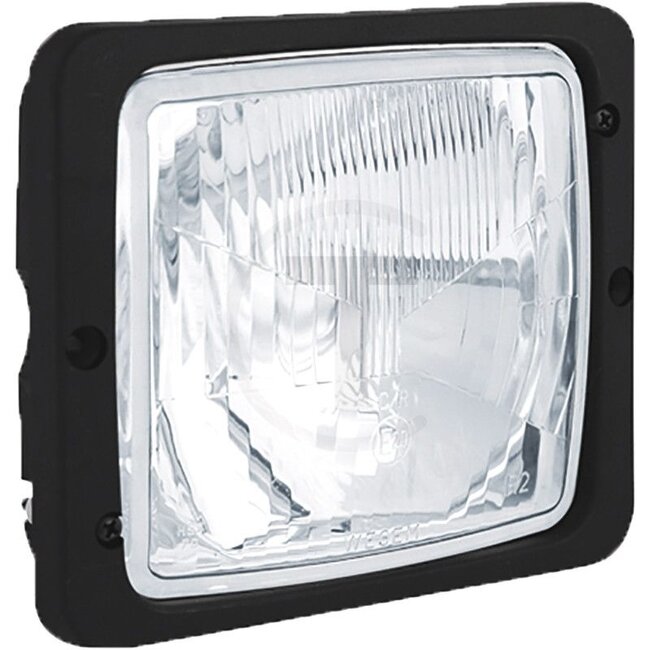

Headlight for the left or right side, for 12 or 24 V, with a light aperture of 128 x 123 mm and flush mounting. The product has a metal reflector, glass diffusing lens, plastic frame and seal for light bulbs; the lens measures 138 x 123 mm. Light functions are dipped beam, full beam and position light. Protection class IP54 and test mark E20. Suitable bulbs are 12V45/40WAS or 12V45/40W halogen (R2), 12V4WK (T4W), 24V55/50WAS (R2) and 24V4WK (T4W). Bulbs not included. Fits tractors from Case IH and Zetor.
Reference numbers:RE.22778.10, 3404170R94
383, 423, 433, 533, 633, 733, 833, 553, 644, 654, 724, 743, 743 XL, 744, 745 S, 745 XL, 824, 844, 844 S, 844 XL, 856 XL, 946, 955, 955 XL, 956, 956 XL, 1046, 1055, 1055 XL, 1056, 1056 XL, 1246, 323, Serie A-Familie, Serie B-Familie, Serie C-Familie, Serie D-Familie, Serie D-Linie
4340, 5320, 6320, 7340, Serie UR1
| Article number | 70723030 |
|---|---|
| EAN | 4059139012640 |
| Weight | 520 g |
| Bulb | 12V45/40WAS / R2 or 12V45/40W halogen / R2 12V4WK / T4W 24V55/50WAS / R2 24V4WK / T4W |
| Installation location | Left, right |
| Protection class | IP54 |
| Nominal voltage | 12 / 24 V |
| Test mark | E20 |
| Light function | Dipped beam, full beam, position light |
| Additional information | For installation in the locations provided by the vehicle manufacturer Metal reflector, glass diffusing lens, plastic frame and seal for light bulbs Lens: 138 x 123 mm |
| Bulbs included | No |
| Light aperture | 128 x 123 mm |
| Mounting type | Flush mounting |
