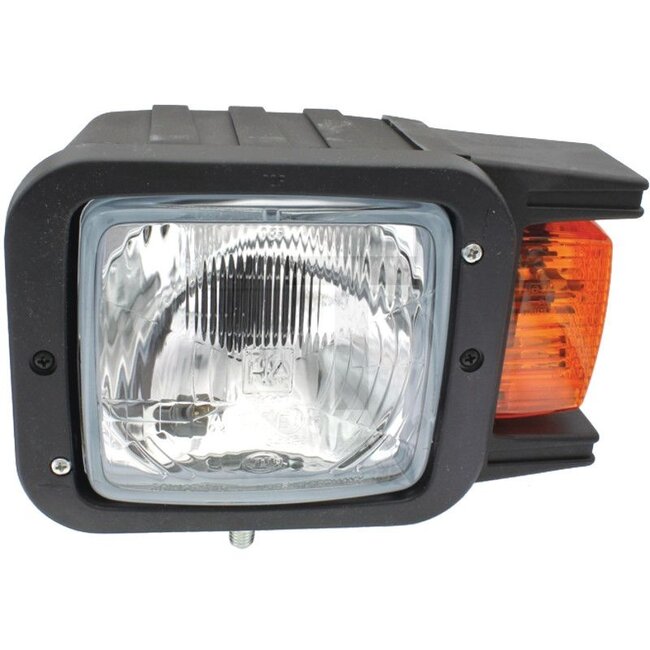

Headlight left with indicator light, for 12 and 24 V, with halogen bulb 12V60/55W / H4, attachment. The housing and casing are black; the light aperture measures 138 x 124 mm. Dimensions W x H x D: 247 x 163 x 119 mm. The headlight has four light functions (dipped beam, indicator light, full beam, position light) and a yellow indicator light. Fixing is vertical with a universal bracket and M12 fixing bolt. Protection class IP5K4K, test mark E1 34463, ECE. Bulbs are not included. Fits Schäffer and Jungheinrich.
Reference numbers:1EA 007 108-011, 14731890, 10
3036, Serie 3000
Diverse, Diverse
| Article number | 4551EA 007108011 |
|---|---|
| EAN | 4082300043600 |
| Weight | 1,37 kg |
| Bulb | 12V60/55W / H4 12V21WK / P21W 12V4WK / T4W 24V75/70W / H4 24V21WK / P21W 24V4WK / T4W |
| Colour | Indicator: yellow |
| Width | 247 mm |
| Height | 163 mm |
| Material | Plastic |
| Housing | Plastic |

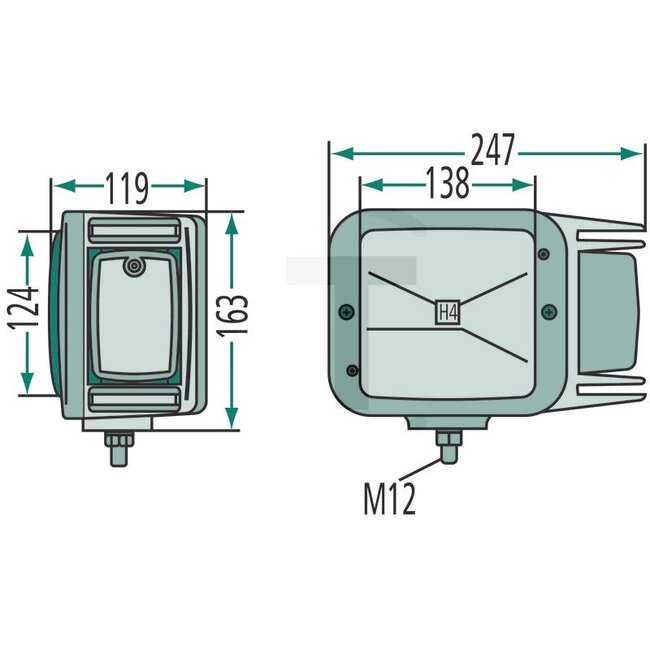

| Dimensions W x H x D | 247 x 163 x 119 mm |
| Depth | 119 mm |
| Fixing | Vertical, universal bracket with M12 fixing bolt |
| Installation location | Left |
| Protection class | IP5K4K |
| Nominal voltage | 12 / 24 V |
| Test mark | E1 34463, ECE |
| Type | Halogen bulb |
| Light function | With dipped beam, with indicator light, with full beam, with position light |
| Number of light functions | 4 |
| SVHC | 7439-92-1; lead; 80-05-7; 4,4-isopropylidenediphenol |
| Additional information | • Laterally flange-mounted indicator light • With accessories • For right-hand traffic • Without bulbs • With accessories |
| Bulbs included | No |
| Light aperture | 138 x 124 mm |
| Mounting type | Mounting |
| Housing colour | Black |
