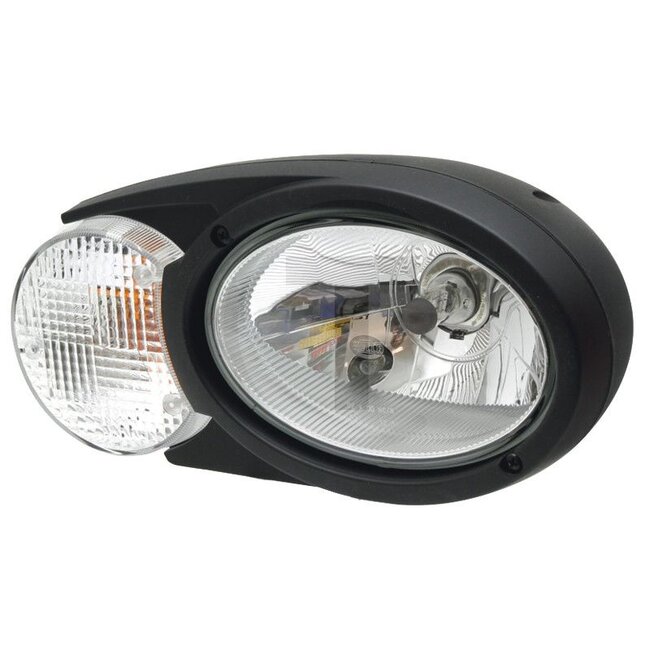

Main headlight Right
| Article number | 4551EB 996167041 |
|---|---|
| EAN | 4082300205527 |
| Weight | 1,3 kg |
| Bulb | 12V60/55W / H4 24V75/70W / H4 12/24V4WK / T4W 12/24V21WKG / 21PY21W, P21W |
| Colour | Lens: transparent, grey, surround: black, diffusing lens: transparent |
| Connection | DEUTSCH plug |
| Width | 304,5 mm |
| Height | 153,3 mm |
| Material | Plastic, diffusing lens: glass |
| To fit | Fendt G930900020070 |
| Housing | Plastic |

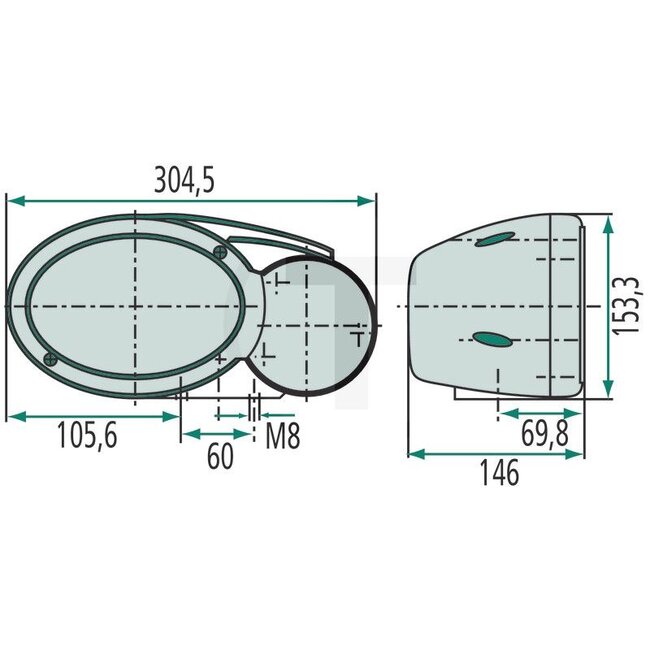

| Dimensions W x H x D | 304,5 x 153,3 x 146 mm |
| Depth | 146 mm |
| Installation location | Right |
| Nominal voltage | 12 / 24 V |
| Version | Diffusing lens: transparent |
| Test mark | E1 1502, E4 6542, E4 6543, ECE |
| Installation depth | 146 mm |
| Number of pins | 6 |
| Type | Halogen |
| Light function | With dipped beam, with indicator light, with full beam, with position light |
| Additional information | • Plastic reflector bonded to non-patterned glass lens • Number of light functions: 4 • For right-hand traffic • Reference number: 12.5 • With bulbs |
| Bulbs included | Yes |
| Light aperture | 161 x 100 mm |
| Mounting type | Mounting, flush mounting |
| Housing colour | Black |
