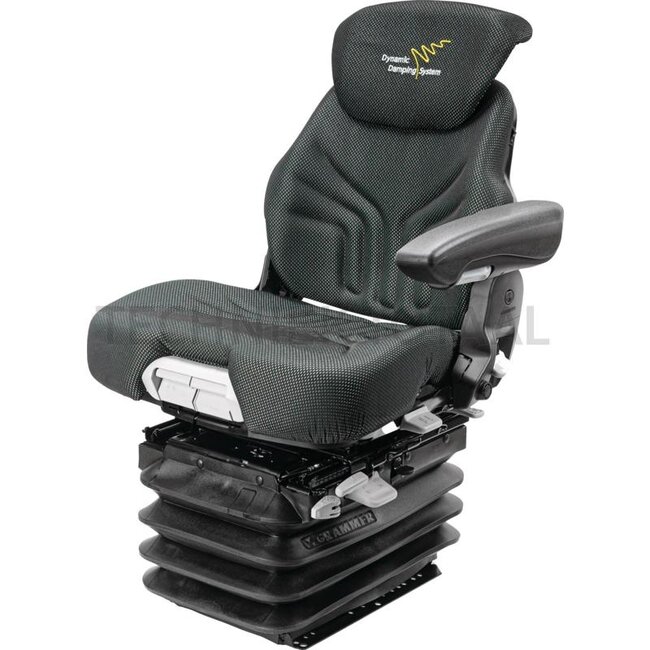

GRAMMER Maximo Dynamic DDS
MSG95AL/741
Technical data:
- Restraint system: Optional
- Lordosenstütze: Pneumatic, 2-way
- Version: The Maximo Dynamic with Dynamic Damping System sets the standard for seats with passive suspension for medium and large tractors. The automatic weight adjustment, automatic damper and pneumatic lumbar support in combination with the wide cushions ensure high seating and operating comfort.
- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
- Fore/aft isolator: Yes
- To fit: Claas Axion, if a Sears seat is installed up to chassis no. A41
- Seat contact switch: Optional
- Joystick console: Yes
- On-board voltage (V): 12

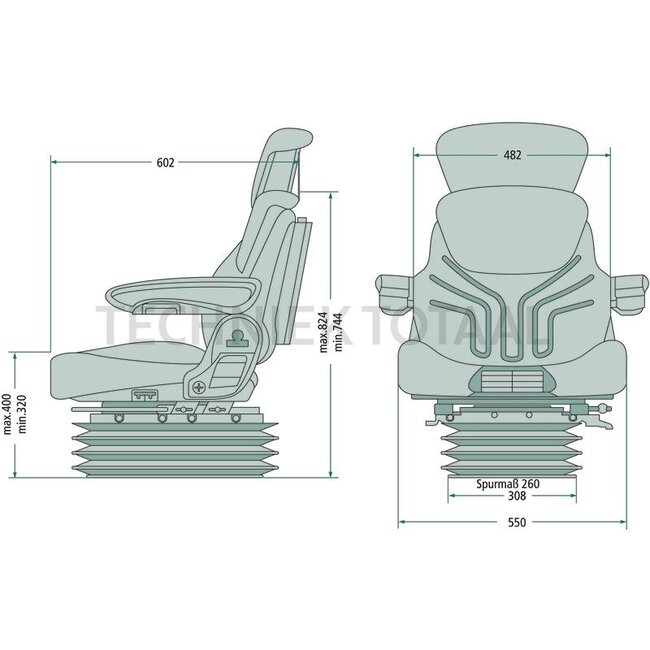

- Height (mm): 744 → 824
- Armrest: Yes
- Seat heater: Yes
- Rückenverlängerung: Yes
- Side horizontal suspension: Yes
- • Super comfort seat with 12V compressor and low-frequency air suspension with DDS • Storage pocket • APS: automatic positioning system • Armrests, height adjustable and folding 80 mm x 380 mm, tilt adjustable • DDS: Dynamic Damping System • Swivel adaptor 20° left/right • Suspension travel 120 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (air-assisted) • Longitudinal adjustment 210 mm • Fore/aft isolator • Pneumatic lumbar support • Backrest and tilt adjustment • Retractable back extension • Side horizontal suspension • Seat heater • Seat cushion depth and tilt adjustment • Seat cushion width 550 mm • Seat contact switch
- Suspension: Air suspension
- Length (mm): 631
- Upholstery type: Fabric
- Track gauge (mm): 260
- Seat type: MSG95AL/741
- Seat width (mm): 550
- Rotation: Yes
Suitable for:
Claas: Arion 610, Arion 620, Arion 630, Arion 640, Axion 810, Axion 820, Axion 830, Axion 840, Axion 850, Jaguar 830, Jaguar 850, Jaguar 870, Jaguar 890, Jaguar 900, Medion 310, Medion 320, Medion 330, Medion 340
