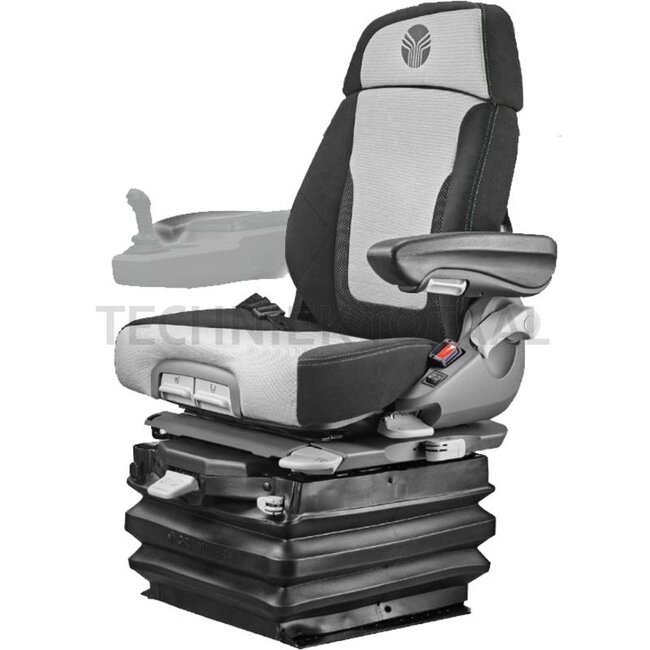

GRAMMER Maximo Dynamic Plus
MSG95AL/741
Technical data:
- Track gauge (mm): 260
- Side horizontal suspension: Yes
- On-board voltage (V): 12
- Seat heater: Yes
- Upholstery type: Fabric / new design
- Fore/aft isolator: Yes
- To fit: John Deere
- Rückenverlängerung: Yes
- Seat contact switch: Yes
- Restraint system: Yes
- Seat width (mm): 565
- • Storage pocket • APS: automatic positioning system • Left armrest, 80 x 380 mm, tilt adjustable • Swivel adaptor 7.5° left/15° right • Air suspension with 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Automatic weight adjustment • Height adjustment 80 mm, continuous (pneumatic) • Passive climate control system • Longitudinal adjustment 210 mm • Fore/aft isolator • Side horizontal suspension • Pneumatic lumbar support • Backrest tilt adjustment • Restraint system • Dualmotion back support • Seat cushion width 565 mm • 2-stage seat heater • Seat cushion depth and tilt adjustment • Dualmotion function (rotatable backrest extension)
- Version: In addition to the Dynamic Damping System, the Maximo Dynamic Plus also features the unique Dualmotion technology. The upper backrest rotates with the driver where required. Together with the swivel adaptor, this ensures perfect visibility and safe vehicle control when working in reverse, while at the same time providing optimum back support. Multifunction armrests can be connected using various adaptor plates.

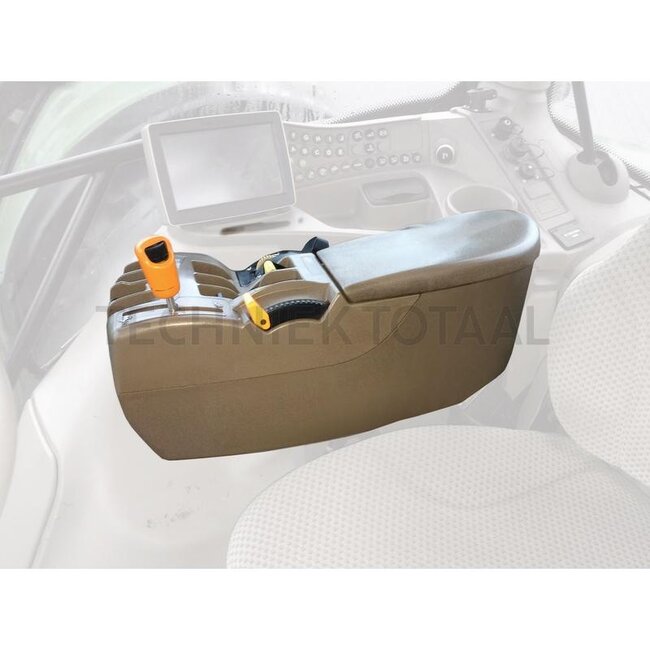

- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
- Armrest: Yes
- Lordosenstütze: Pneumatic
- Joystick console: Yes
- Suspension: Air suspension
- Seat type: MSG95AL/741

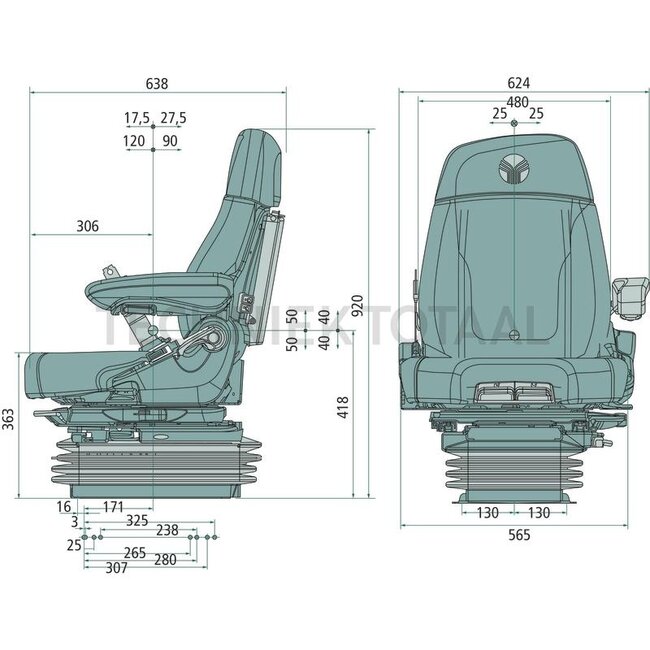

- Length (mm): 648
- Rotation: Yes
- Height (mm): 920
Suitable for:
John Deere: 8245R, 8270R, 8295R, 8295RT, 8320R, 8320RT, 8345R, 8345RT, 8560, 8760, 8960, 8570, 8770, 8870, 8970, 6100, 6200, 6300, 6400, 6205, 6505, 6010, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S, 6130, 6230, 6330, 6430, 6530, 6534, 6630, 6830, 6930, 7200, 7600, 7700, 7800, 7130, 7230, 7730, 7830, 7930, 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 9100, 9200, 9300, 9400, 9120, 9220, 9320, 9420, 9520
