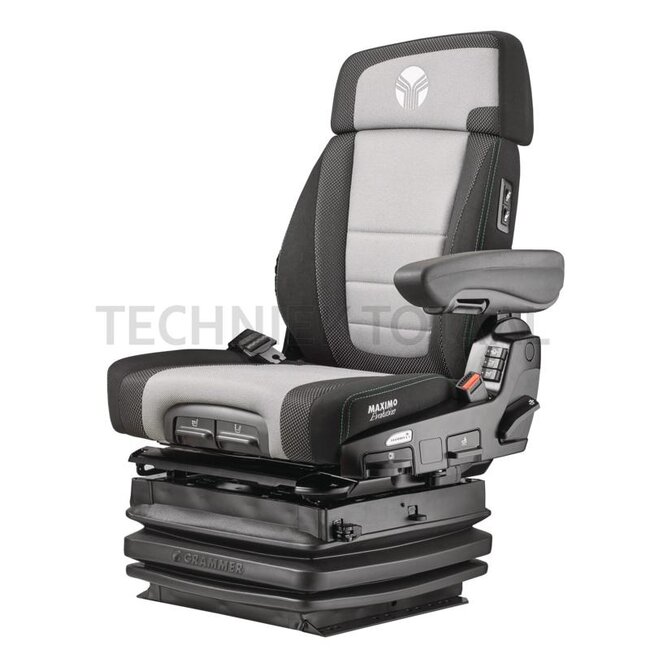

Maximo XT Evolution Dynamic MSG97EL/741

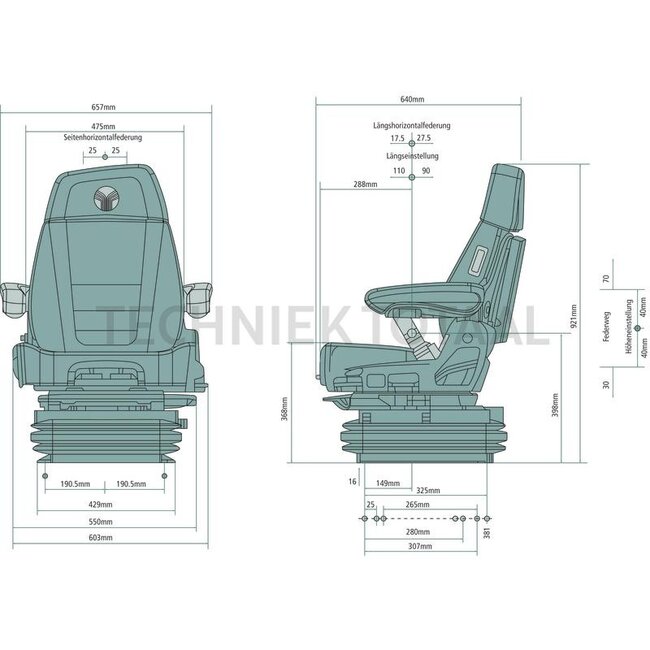

Suspension: Air suspensionUpholstery type: Fabric / new designSeat contact switch: YesTrack gauge (mm): 380Seat width (mm): 550Joystick console: OptionalSide horizontal suspension: YesFore/aft isolator: YesRestraint system: YesOn-board voltage (V): 12Seat heater: YesRotation: YesLength (mm): 640Height (mm): 921Seat type: MSG97EL/741Technical data: Air suspension with 12V compressor
Extra wide reinforced version
Dynamic Damping System
Suspension travel 120 mm
Electronic weight adjustment 50-130 kg
Storage pocket
APS (Automatic Positioning System)
Left armrest tilt adjustable 80 x 380 mm, automatic damper
Swivel adaptor adjustment range 15°
Height adjustment 80 mm, continuous (pneumatic)
Active climate control system
2-stage seat heater
Longitudinal adjustment 200 mm
Lockable side horizontal suspension
Lockable fore/aft isolator
Pneumatic 2-way lumbar support
Backrest tilt adjustment
Dualmotion back support
Seat cushion depth and tilt adjustment
Side contour adjustment back cushion
Seat contact switch
Duo Sensitiv restraint system
Optional equipment
Right armrest tilt adjustable 80 x 380 mm
Adaptor plate for multifunction armrestVersion: The Dynamic Damping System in the Maximo XT Evolution Dynamic sets the suspension comfort standards for seats with passive suspension. The adaptive Dualmotion back support provides maximum visibility and support when working in reverse. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. With the electronic weight adjustment, the seat adjusts automatically to the driver’s weight. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. The Maximo XT Evolution Dynamic features wider suspension for use in combination with heavy multifunction armrests (not included).Gauge: 380Armrest: YesLordosenstütze: Pneumatic, 2-wayRückenverlängerung: Yes
