Walterscheid Mechanical top link cat. 3, M36 x 3 mm, 522 / 752 mm | 1200190
€755,37
€588,15 Incl. 21% VAT
€486,07 Excl. VAT
Delivery time on request
I: M36 x 3 mm. A cat.: 3 / 32. B cat.: 3 / 32. D: 522 / 752 mm. Description: <b>Product advantages:</b> Equipped with original Walterscheid hooks Special anti-twist device to prevent unwanted length changes Versatile in use thanks to different connection Read more.
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!
Product description

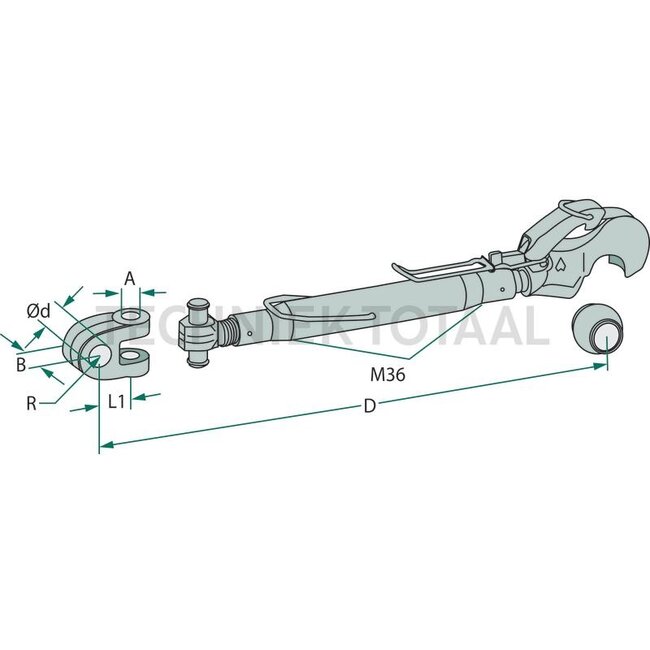

Mechanical top link
I (mm): M36 x 3
A cat.: 3 / 32
B cat.: 3 / 32
D (mm): 522 / 752
Description: Product advantages: Equipped with original Walterscheid hooks Special anti-twist device to prevent unwanted length changes Versatile in use thanks to different connection options Wide range of lengths and adjustment ranges Long service life due to corrosion protection and lubrication option Available for all tractor types All individual components available as replacement parts or for retrofitting
Included in delivery: 1x centre tube (part number: 395309690) 1 x top link hook Cat.3H (part number: 395309918) 1 x rod head Cat.3 (part number: 395309680) 1 x bolt (part number: 395308609) 2 x circlip (part number: 395702048) PLEASE NOTE: A clevis head is not included.
Type: Tail hook/clevis joint
Assembly notes: The Walterscheid Cat. 3 spindle top link is only suitable for tractors up to max. 135 kW (184 PS) engine power.
