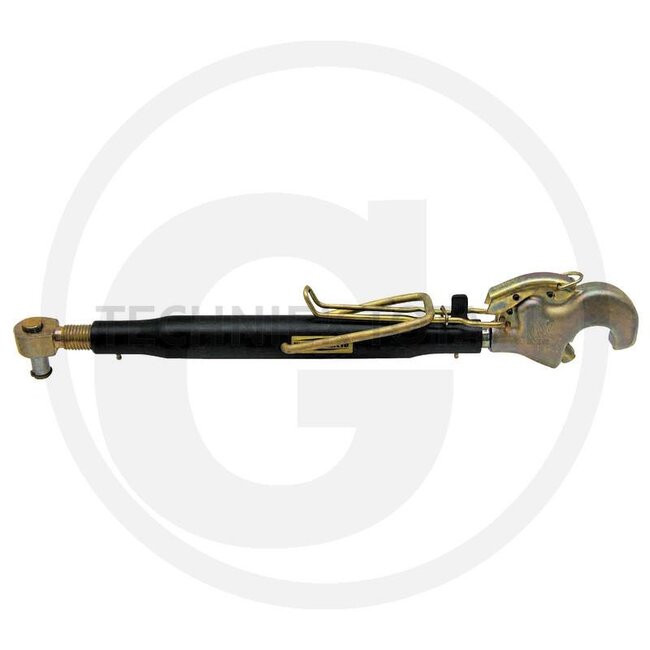

Name: Walterscheid Mechanical top link hook/clevis cat. 2/2, 475 - 690 mm | 1200187
Brand: Walterscheid
SKU: 395200187
Price: 515.16 EUR

Walterscheid Mechanical top link hook/clevis cat. 2/2, 475 - 690 mm | 1200187

€654,36

€515,16 Incl. 21% VAT

€425,75 Excl. VAT

Delivery time on request

Description: Product advantages: Equipped with original Walterscheid hooks Special anti-twist device to prevent unwanted length changes Versatile in use thanks to different connection options Wide range of lengths and adjustment ranges Long service life d Read more.

Found in category:

Tractor & vehicle› Three-point linkage parts› Top links

Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Walterscheid Mechanical top link

Replaces: 1200187

Technical data:

Description: <b>Product advantages:</b> Equipped with original Walterscheid hooks Special anti-twist device to prevent unwanted length changes Versatile in use thanks to different connection options Wide range of lengths and adjustment ranges Long service life due to corrosion protection and lubrication option Available for all tractor types All individual components available as replacement parts or for retrofitting
Assembly notes: The Walterscheid Cat. 2 spindle top link is only suitable for tractors with up to max. 74 kW (100 PS) engine power.
Version: standard
Top link type: mechanical

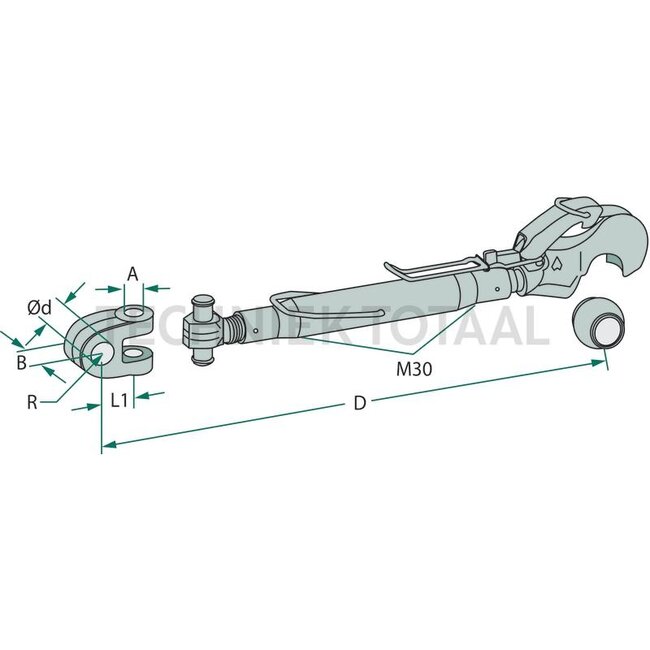

I (mm): M30 x 3,5
Type: Tail hook/clevis joint
A cat.: 2 / 25,4
D (mm): 475 / 690
Included in delivery: 1x centre tube (part number: 395309695) 1 x top link hook Cat.2 (part number: 395307441) 1 x rod head Cat.2 (part number: 395200057) 1 x bolt (part number: 395306402) 2 x circlip (part number: 395304117) <b>PLEASE NOTE:</b> A clevis head is not included.
B cat.: 2 / 25,4
