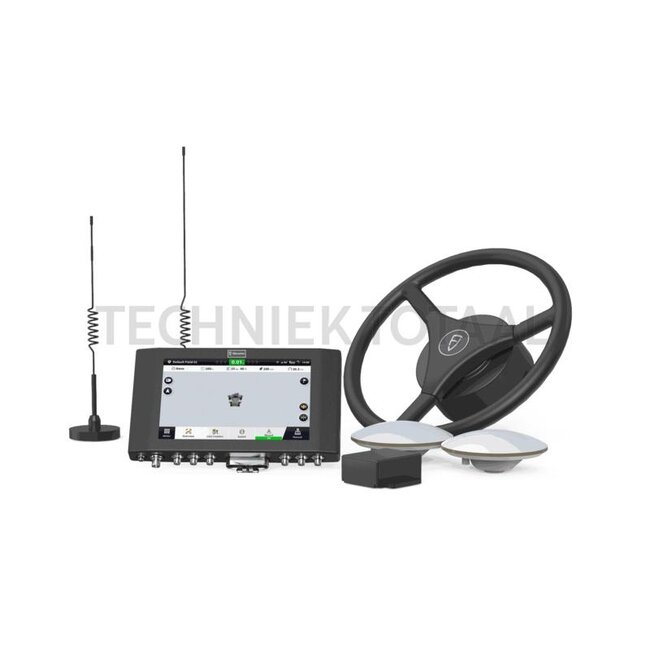

FJDynamics MS100 mower kit
Technical data:
- Accuracy (RTK): 2.5 cm
- Description: The <b>FJD MS100 mower kit</b> is a <b>high-precision driving assistance system</b> for lawnmowers with positioning that can be adapted to conventional lawnmowers with three or five joints for golf courses. The kit offers <b>driving assistance for straight, curved and circular mowing</b>. This makes mowing <b>easier and more efficient.</b> Choose between straight lines, curves and pivot points to achieve the desired mowing pattern. <b>The intelligent guidance navigates seamlessly on each individual path.</b>

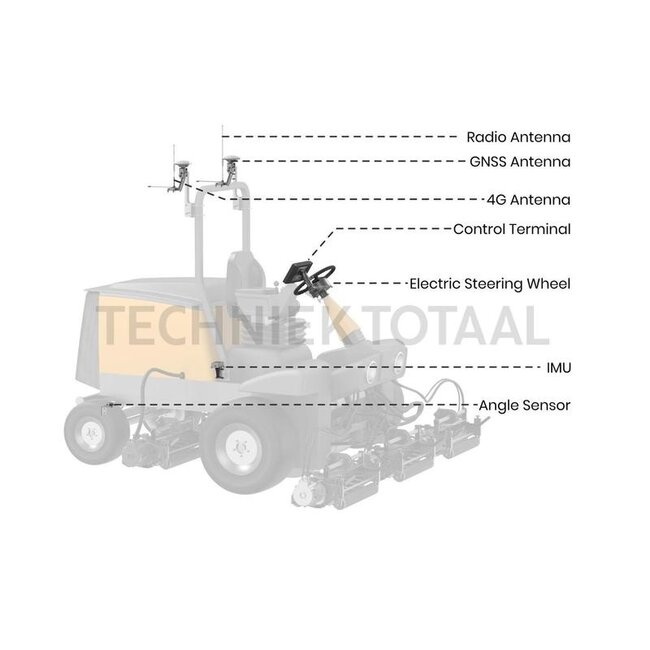

- Additional information: <b>Terminal</b> Dimension (L x W x H): 300 x 190 x 43 mm Operating system: Android Network: 4G / 3G / 2G Display: 10.1 inch, 1280x800p, LED backlight Waterproof up to IP65 Power supply: 10-30V Interface: 1x radar, 1x 4G, 2x GNSS, 1x basic station <b>Steering wheel</b> Dimensions: 370 x 123 mm Waterproof to IP66 Power supply: 12V/24V DC <b> GNSS antenna</b> Dimensions: 152 x 63 mm Support: GPS L1 / L2, GLONASS L1 / L2, BDS B1 / B2 / B3 Waterproof up to IP67 Operating temperature range: -20°C - 70°C <b>IMU</b> Accelerometer: 0.5 mg Gravity sensor: 0.1°/s Electronic compass: 0.2° Power supply: 5V <b>Angle sensor</b> Operating temperature range: -40°C - 85°C Waterproof up to IP67
