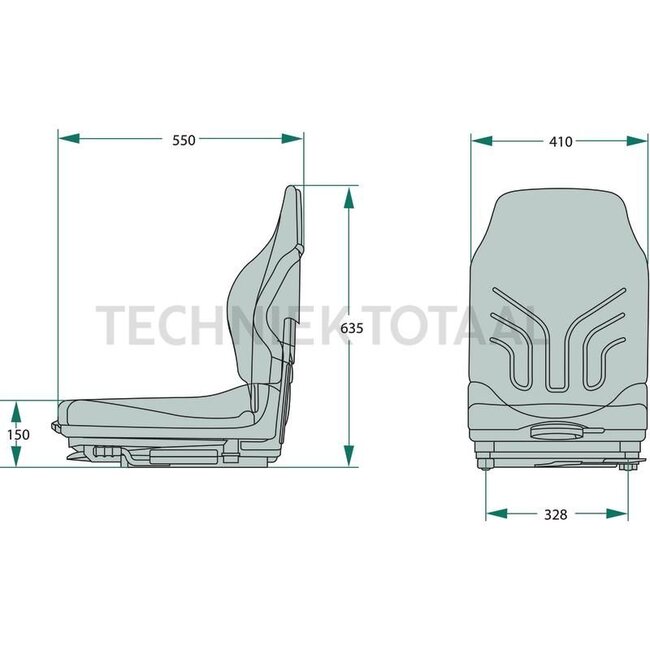

Seat type: MSG20. Suspension: Mechanical. Upholstery type: PVC. Seat contact switch: Optional. Track gauge: 328 mm. Seat width: 410 mm. Restraint system: Optional. Seat heater: Optional. Length: 550 mm. Height: 635 mm. Technical data: • Comfort seat with
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (472 reviews)
Larger quantity required?
Product description

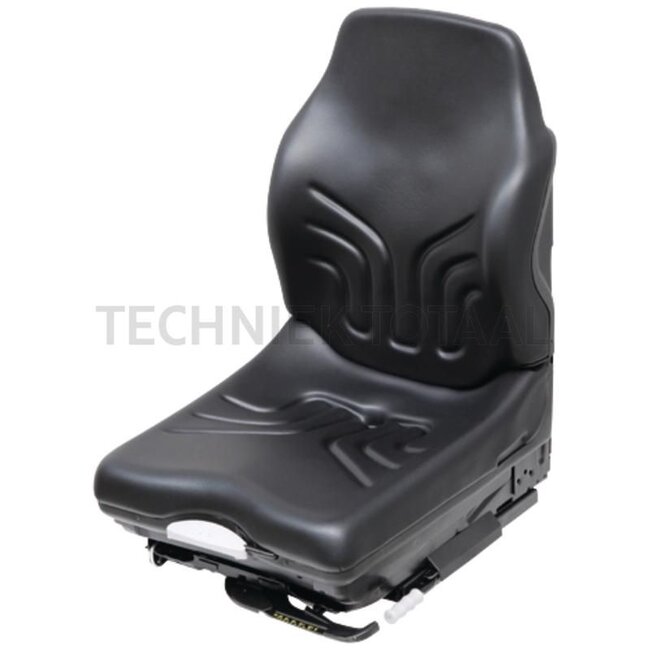

MSG20 narrow MSG20
Seat type: MSG20
Suspension: Mechanical
Upholstery type: PVC
Seat contact switch: Optional
Track gauge (mm): 328
Seat width (mm): 410
Restraint system: Optional
Seat heater: Optional
Length (mm): 550
Height (mm): 635
Technical data: • Comfort seat with mechanical suspension • Suspension travel 60 mm • Longitudinal adjustment 150 mm • Mechanical weight adjustment 50 - 130 kg • Seat cushion width 410 mm
Version: MSG 20 seats are designed for the vibrations experienced by forklifts, and offer a suspension travel of 60 mm plus a weight adjustment range of 50 to 130 kg. Weight adjustment is carried out with a smooth-running adjustment lever on the front, and ensures individual suspension comfort. The seat can be positioned within a range of 150 mm, giving enough space for any body size and work situation. The narrow version with a cushion width of 410 mm is especially suitable for reach trucks.
