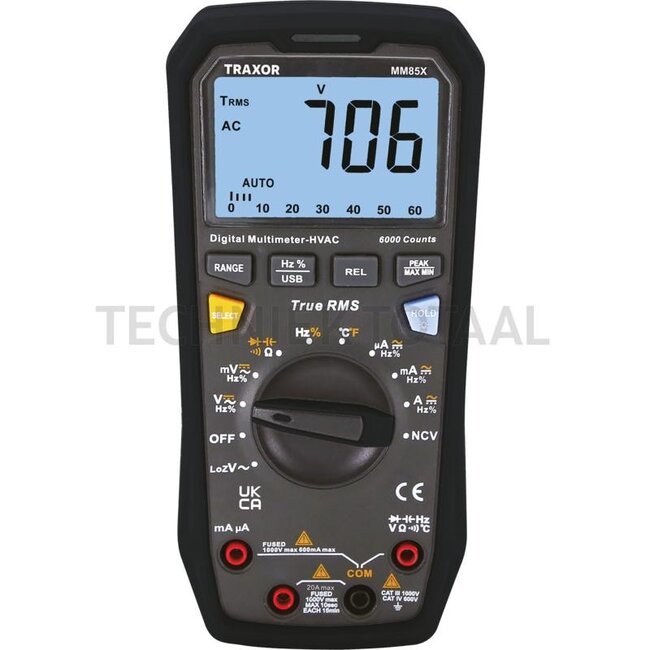

TRAXOR Multimeter MM85X
CAT III 1000V, CAT IV 600V, automatic range selection
Technical data:
- Housing material: Plastic
- Display: LCD
- Measuring range: AC voltage (V) 1000 ±(1%+3) DC voltage (V) 1000 ±(0.5%+3) DC amperage (A) 20A ±(1%+2) Resistance (Ω) 60 MΩ ±(1%+2)
- Description: Handy digital multimeter for fast and simple measurements with advanced vehicle and system electronics functions. • Automatic range selection • Illuminated LCD display • True RMS • Analogue bar graph • Non-contact voltage test • Temperature measurement • Continuity test • Min. / max. function • Relative mode • Peak hold • Data hold • Diode test • Auto power off • USB interface
- Safety class: CAT III 1000V, CAT IV 600V
- Included in delivery: • Test leads, K-type • Temperature measuring line • USB cable • Batteries 4x 1.5V AAA • Operating instructions • Fuses: F1 = 600 mA / 1000 V Ø 6 x 32 mm (mA / μA input terminal) F2 = 11 A / 1000 V Ø 10 x 38 mm (A input terminal)
