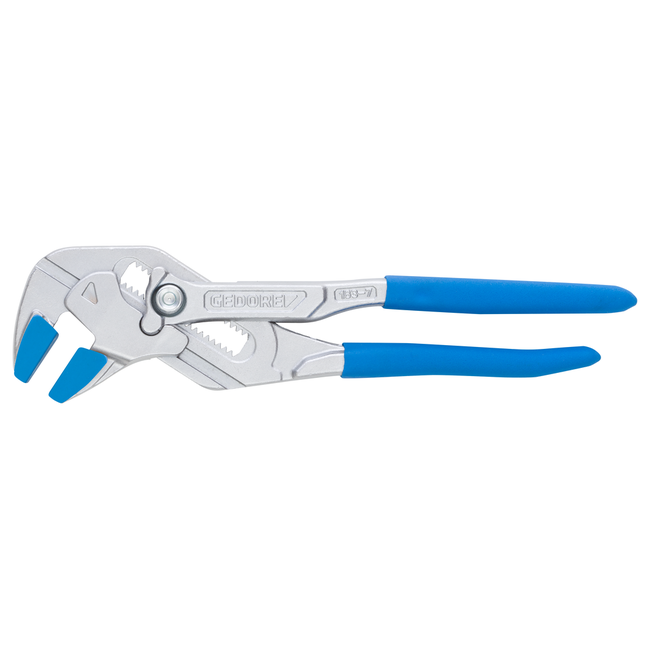

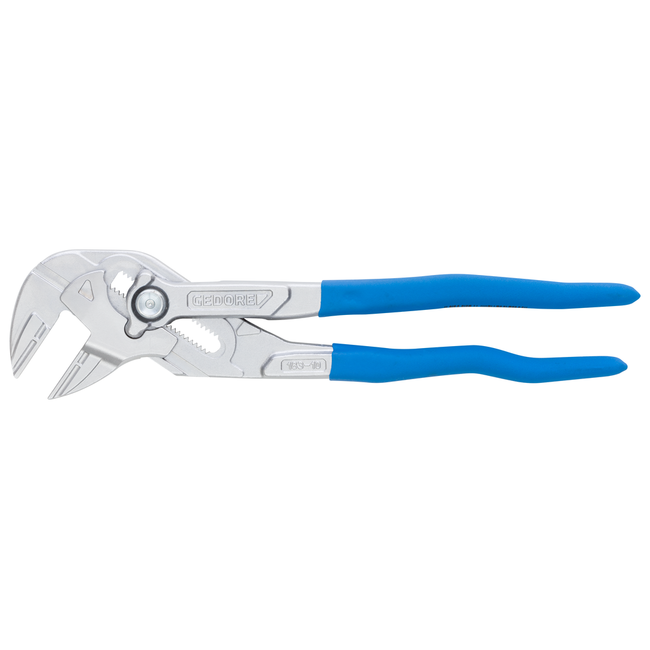

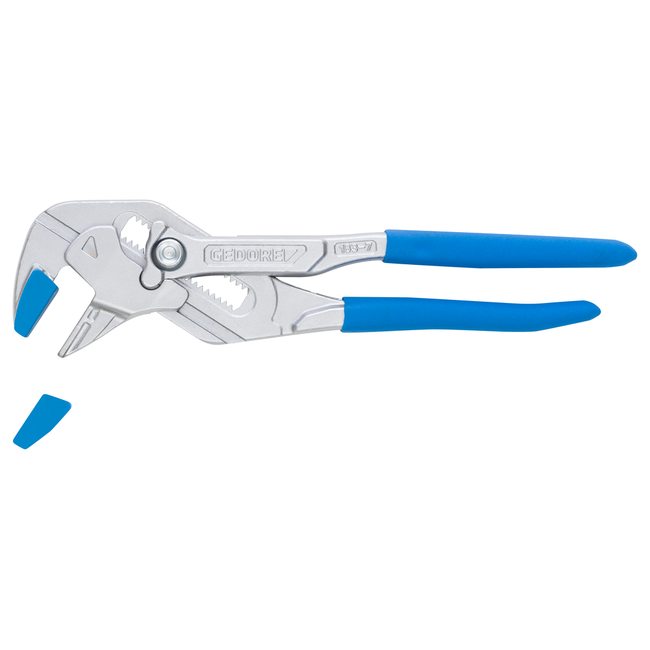

10-inch plier wrench combining wrench and pliers, with smooth parallel jaws up to 52 mm for damage-free work on nuts and chrome-plated fittings.

• One tool that works like a spanner and pliers, DIN ISO 5743
• Can replace two complete open-ended spanner sets, metric and inch, gripping size 0 - 52mm/0 - 2"
• Careful assembly of bolt connections with delicate surfaces (e.g. chrome-plated fittings), Adjustable, universal tool for bolting, Perfect for bending, holding, pressing and gripping a wide range of applications
• Play-free positioning with no risk of damaging the edges
• Sliding mechanism and paralleled jaws for quick and easy adjustment, practically stepless
• Secure locking of the setting when the size of the opening is selected
• Sliding mechanism may be activated from almost any setting
• May be used as a "ratchet spanner" – quick and easy tightening and loosening of hexagonal screws and nuts
• High ratio (>1:10) for high pressing and clamping force against the jaws
• Made of GEDORE special hardened and tempered steel for the highest loads
• Can be used as a powerful vice when on the move
• Optimum ergonomic adjustment of the hand position to the size of the jaw or spanner opening

Technical data

• Item number: 183 10 TC
• EAN: 4010886951521
• Total length: 260 mm
• Total width: 55 mm
• Total height: 25 mm
• Weight: 0.545 kg
• Material: Heat-treated steel
• Width of head 1: 52 mm
• Surface: chrome-plated
• Head height 1: 35 mm
• Clamping width: 52 mm
• Standard: DIN ISO 5743
• Handle design: dip-insulated
• Number of setting positions: 21
• Jaw length L3: 35 mm
• Joint types: push-through joint
• Head Thickness T1: 8 mm
• Handle colour: blue
• Size: 10
• Jaw shape: flat jaws
• Thickness of point: 3 mm
