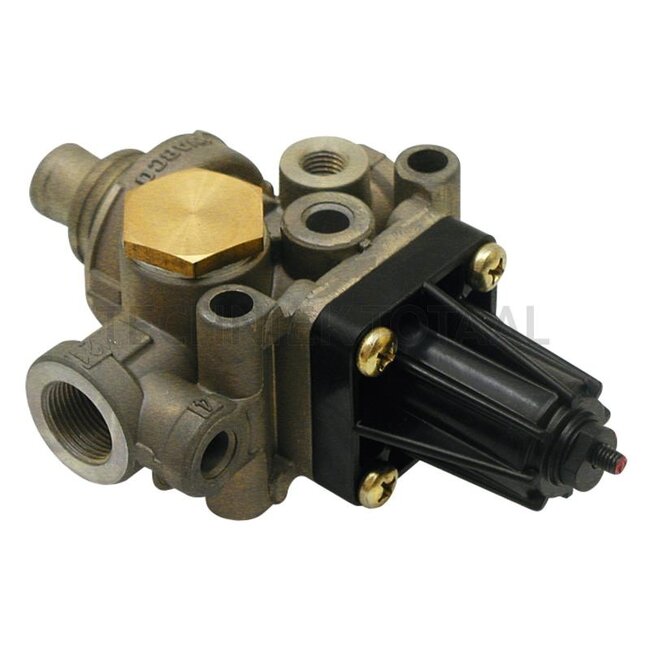

Wabco Pressure regulator

Without tyre inflation connection

Replaces: DR3546 Knorr, 312043001 Haldex, 9753030600, T103977+ 897533H3 Case IH, 0.012.3381.0 Deutz AL110648+ AL112538 John Deere, 975 303 060 0

Technical data:

• Control range: 0,6 +0,4
• Safety valve opening pressure (bar): 12 +2
• Pressure regulator cut-off pressure (bar): 8,1 ±0,2
• Connection: M22 x 1,5
• To fit: Renault Trucks, DAF u. a.

Suitable for:

John Deere: 5080R, 5090R, 5100R, 3200, 3400, 3800, 6100, 6200, 8100, 8200, 8300, 8400

Massey Ferguson: 7719/S, 8740/S
