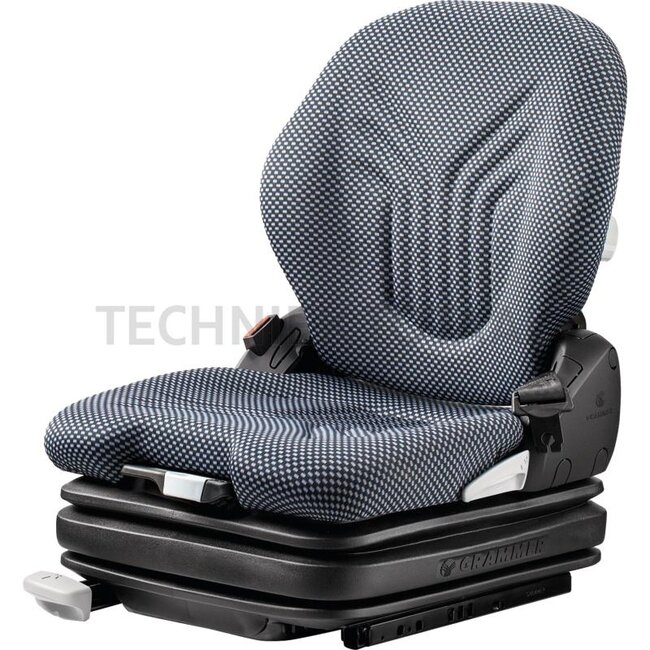

GRAMMER Primo L

MSG75G/521

Replaces: 1293477

Technical data:

• Seat contact switch: Yes
• Armrest: Optional
• Seat heater: No
• Seat type: MSG75G/521
• Upholstery type: Fabric
• Rotation: No
• Gauge: 330
• Joystick console: Optional
• Track gauge (mm): 330
• Restraint system: Yes

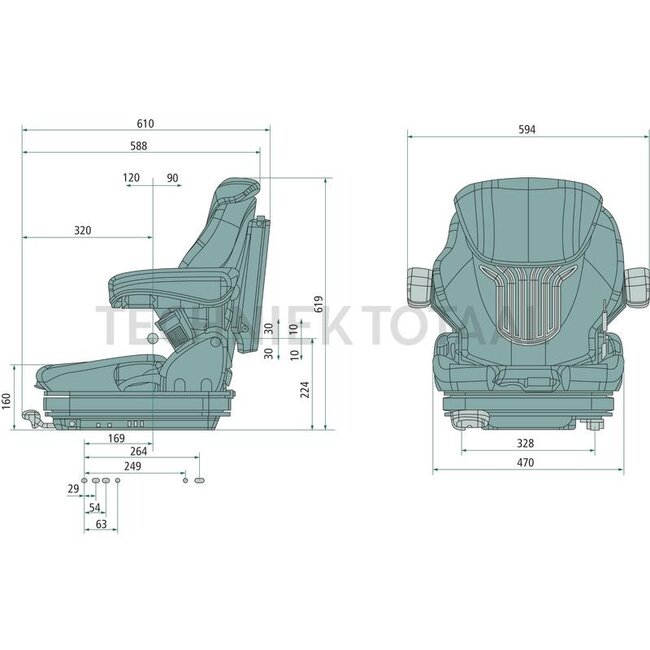

• Length (mm): 610
• Suspension: Air suspension
• Rückenverlängerung: Optional
• On-board voltage (V): 24
• Height (mm): 619
• Seat width (mm): 480
• Lordosenstütze: Mechanical
• Side horizontal suspension: No
• • Comfort driver's seat with air suspension and 24V compressor • Suspension travel 80 mm • Electro-pneumatic weight adjustment (45 - 170 kg) • Longitudinal adjustment 210 mm • Backrest tilt adjustment • Lumbar support with mechanical adjustment • Restraint system: automatic Duo Sensitiv lap belt with retractor • Seat contact switch • Seat cushion width: 480 mm • Track gauge: 330 mm • This seat complies with FEM 4.002 in conjunction with a restraint system (for forklifts) • This seat complies with ISO 6683 (for earth-moving machinery)
