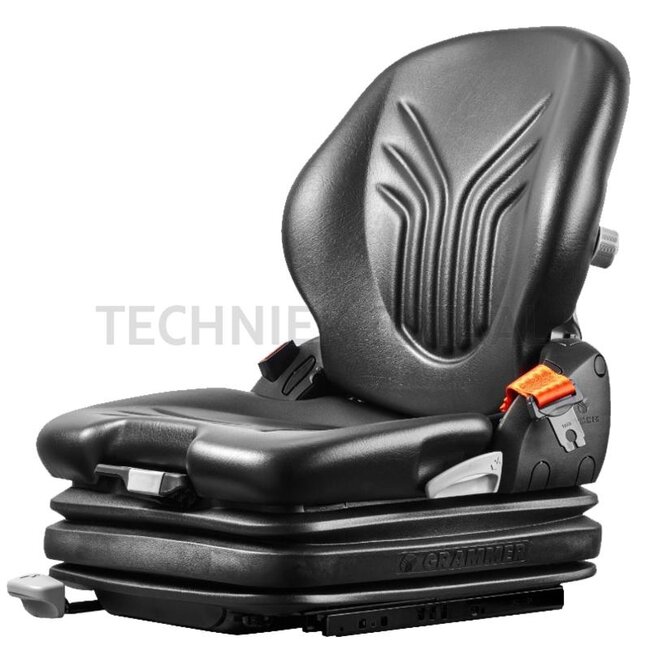

GRAMMER Primo L

MSG75G/521

Replaces: 1564040

Technical data:

• Seat contact switch: Yes
• The PRIMO L has with pneumatic suspension. Thanks to the low-profile air suspension, this seat enables efficient vibration reduction even in extremely compact cabs. The driver's weight (electro-pneumatic 5-170 kg) can be set using an easily accessible button. A sight glass with pointer helps the driver to quickly find the optimum setting. The Primo L meets the latest safety requirements, and is equipped with a seat and belt contact switch plus Duo Sensitiv ELR belt system with orange belt strap as standard.
• Armrest: Optional
• On-board voltage (V): 12
• Length (mm): 610
• Restraint system: Yes
• Rückenverlängerung: Optional
• Width (mm): 594
• Track gauge (mm): 328
• Seat width (mm): 470
• Height (mm): 618
• Seat type: MSG75G/521
• Lordosenstütze: Mechanical
• Suspension: Air suspension
• Upholstery type: PVC
• Fore/aft isolator: Optional
• Seat heater: Optional
• To fit: Construction machinery, farm loaders, forklifts
