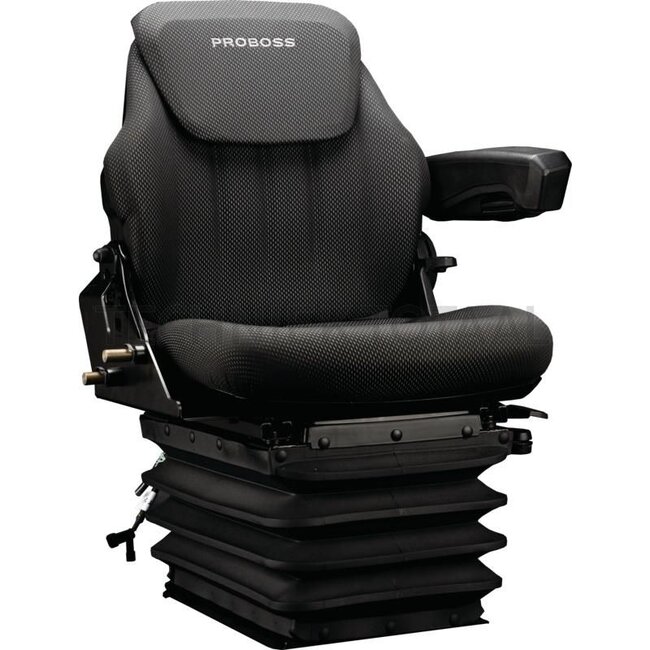

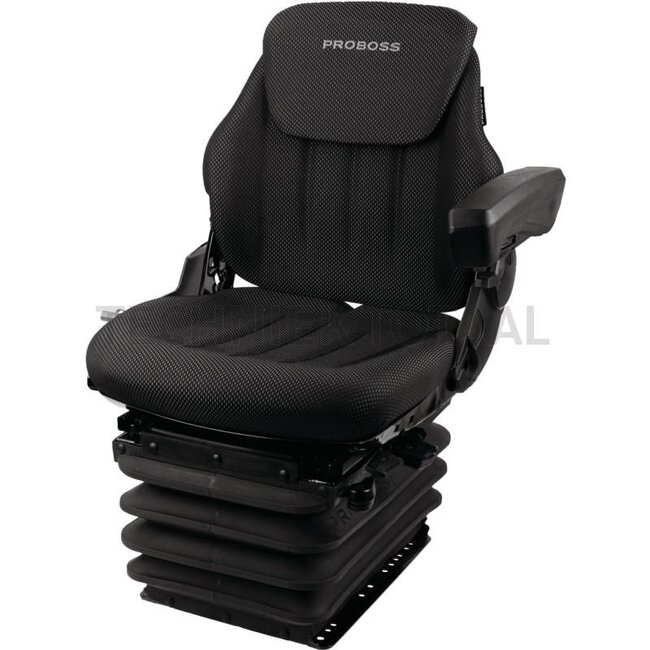

Seat PROBOSS AS2480 CVX, air suspended with a 12 V compressor, with fabric upholstery. Fits the CVX. The seat is 480 mm wide, has a track gauge of 260 mm and is continuously height adjustable from 270 to 370 mm, with a seat height of 240 to 340 mm. The weight is 35.5 kg. The seat includes a seat contact switch and a joystick console; the restraint system is optional. The console is used to mount an existing control armrest on new seats; the control armrest itself is not included.
| Article number | 12271629 |
|---|---|
| Weight | 100 kg |
| To fit | CVX |
| Suspension | Air suspension |
| Upholstery type | Fabric |
| Seat contact switch | Yes |
| Track gauge | 260 mm |
| Seat width | 480 mm |
| Joystick console | Yes |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Height (mm) | 270 → 370 |
| Technical data | • Air suspension with 12V compressor • Fore/aft isolator • Continuous height adjustment • Longitudinal adjustment • Backrest tilt adjustment • Mechanical lumbar support • Adjustable Comfort armrests • Adjustable back extension • Seat cushion width 480 mm • Seat height 240-340 mm • Weight 35.5 kg |

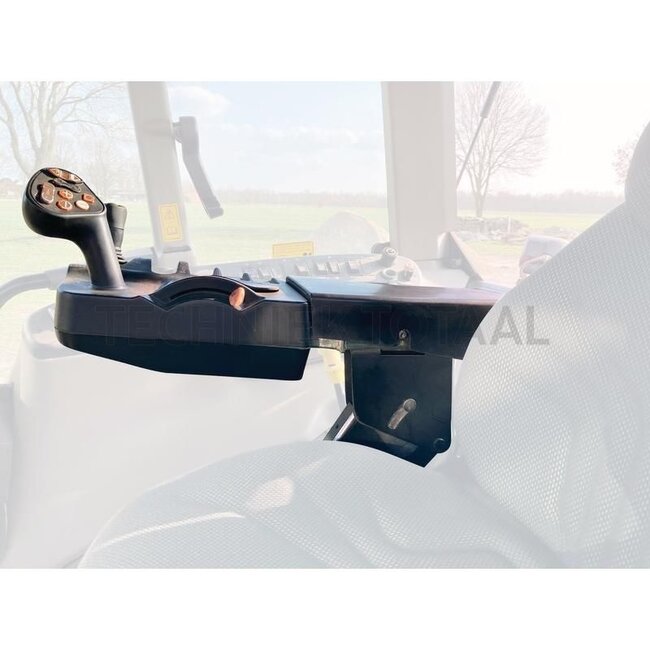

| Included in delivery | Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included). |
