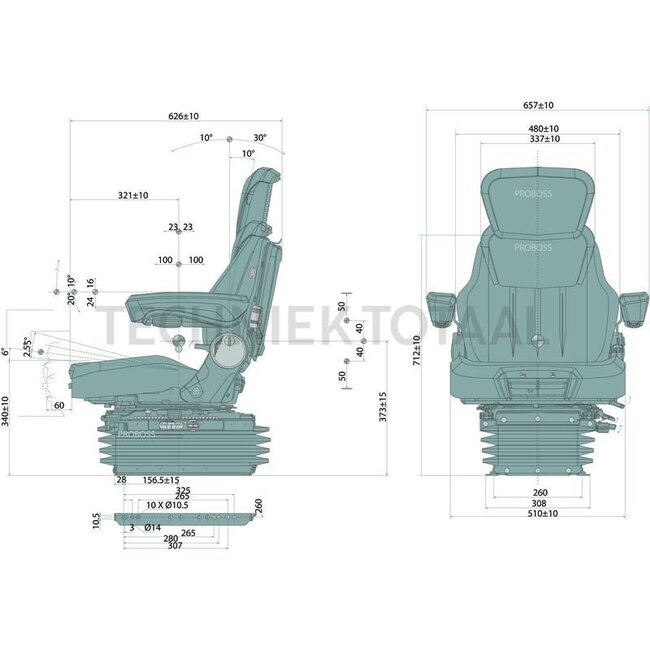

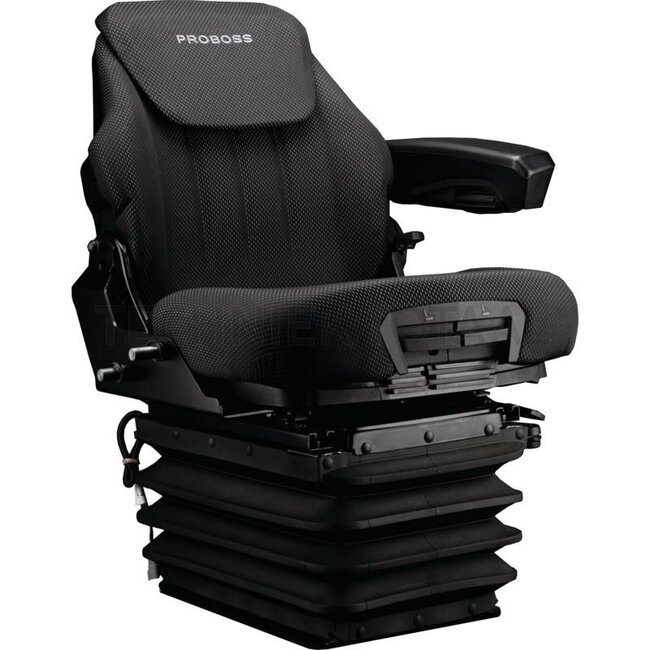

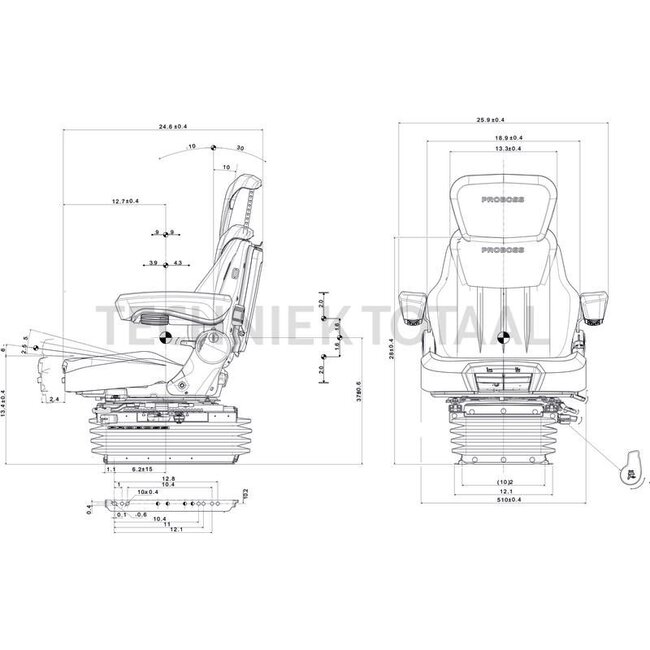

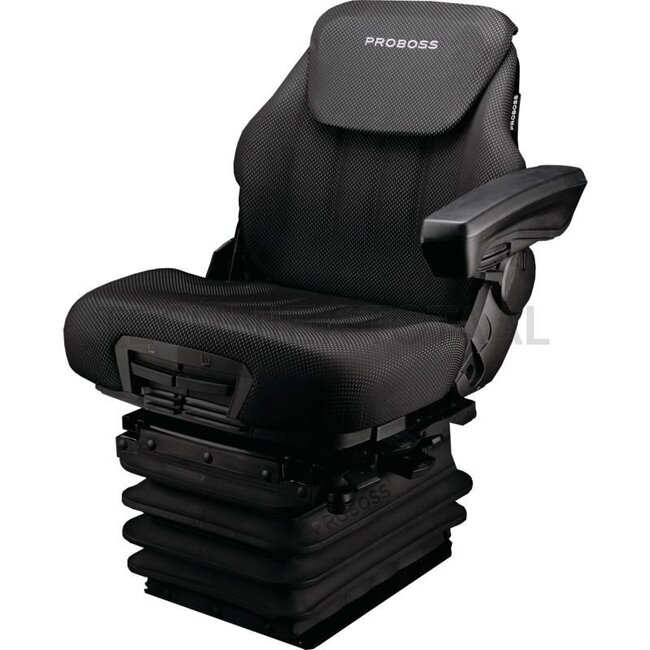

Seat by PROBOSS, model AS3510, air suspended with 12 V on-board voltage and fabric upholstery. The seat width is 510 mm, the height is adjustable from 270 to 370 mm, the track gauge is 260 mm and the weight 39.5 kg. The seat is suitable for CNH and includes a seat contact switch, a joystick console and rotation up to 20° right/left. Restraint system optional. The delivery includes the seat contact switch and the console for the existing control armrest; the armrest itself is not included.
| Article number | 11995796 |
|---|---|
| Weight | 100 kg |
| To fit | CNH |
| Suspension | Air suspension |
| Upholstery type | Fabric |
| Seat contact switch | Yes |
| Track gauge | 260 mm |
| Seat width | 510 mm |
| Joystick console | Yes |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Rotation | Yes |
| Height (mm) | 270 → 370 |
| Technical data | • Air suspension with 12V compressor • Fore/aft isolator • Continuous height adjustment • Longitudinal adjustment • Backrest tilt adjustment • Mechanical lumbar support • Adjustable Comfort Plus armrests • Adjustable back extension • Rotation max. 20° right/left • Seat cushion width 510 mm • Seat height 270-370 mm • Weight 39.5 kg • Document box on the backrest • Seat cushion depth adjustment • Seat cushion tilt adjustment • 5-way adjustable damper |

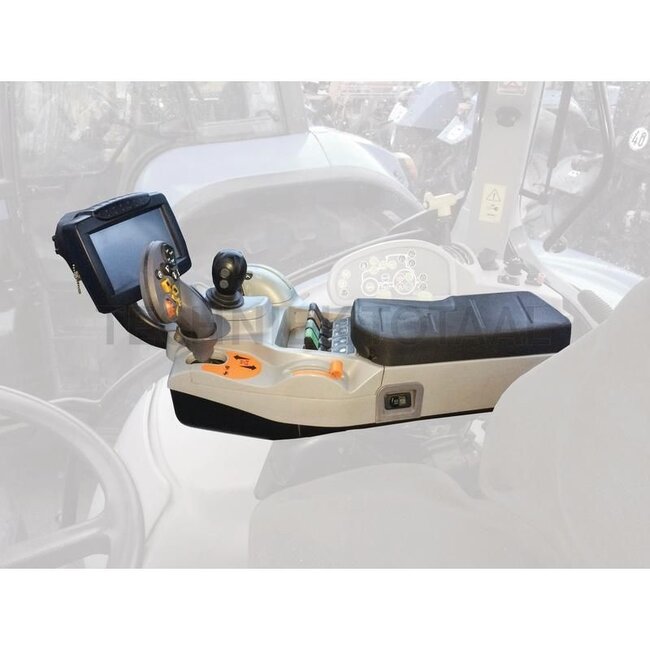

| Included in delivery | Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included). |
