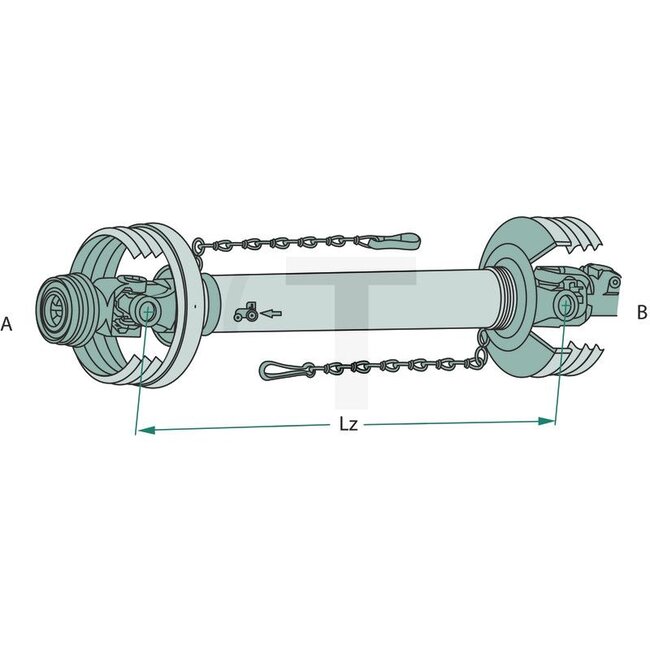

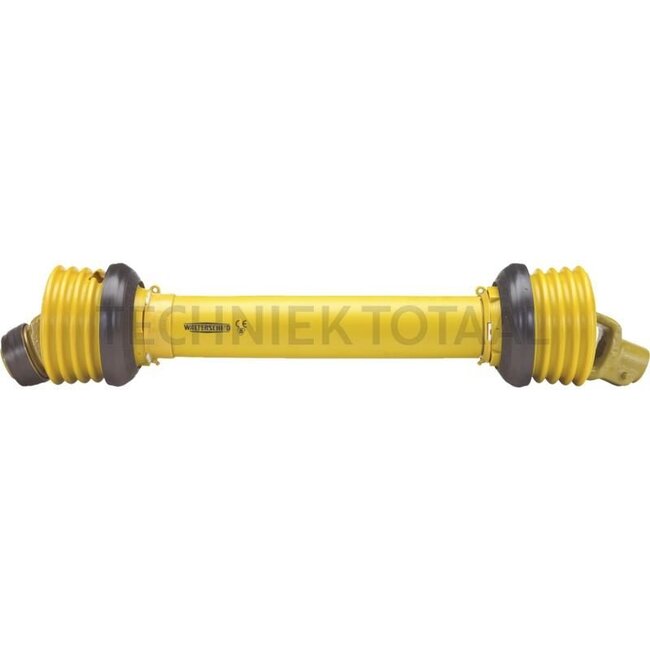

PTO shaft by Walterscheid with a length (Lz) of 1210 mm and size 2200. The power rating is 27 hp at 540 rpm and 42 hp at 1000 rpm. The A and B profiles each measure 1 3/8" with 6 splines and have a cross size of 24 x 61 mm. The profile pair is 0v/1 and the lock is QS/QS. The tractor-side connecting yokes and guard comply with DIN EN 12965.
| Article number | 395800046 |
|---|---|
| Weight | 12,38 kg |
| HP (540 rpm) | 27 |
| HP (1000 rpm) | 42 |
| Size | 2200 |
| Lz | 1210 mm |
| A (profile) | 1 3/8" 6 splines |
| B (profile) | 1 3/8" 6 splines |
| Profile pair | 0v/1 |
| Lock | QS/QS |
