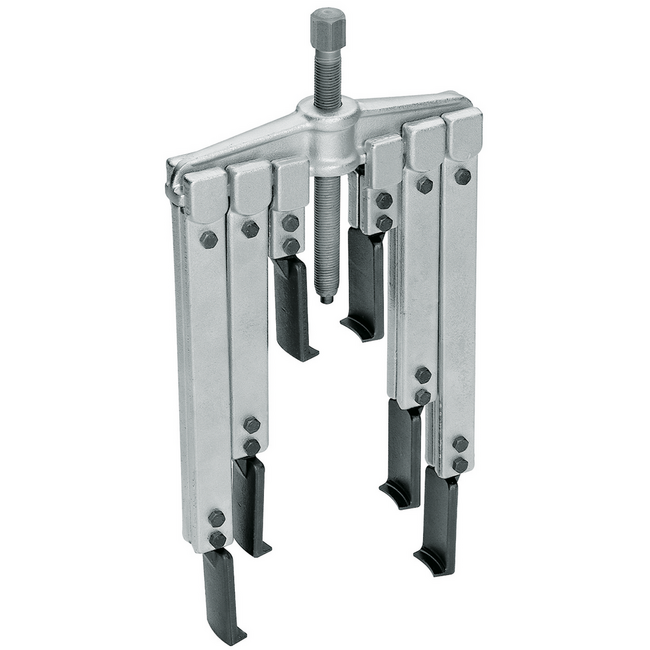

2-jaw puller with six slim legs in three lengths up to 300 mm and 260 mm spread, for bearings and gears in tight spots, rated at 5 t.
- 2-arm puller, with 6 slender hooks in 3 lengths
- Particularly suitable for hard-to-reach areas
Technical data
- Item number: 1.06/AS-2
- EAN: 4036976112412
- Number of pieces: 8
- Weight: 8.06 kg
- Set contents: 106/2A03 traverse 2-arm 260 mm 106/B-150-S puller hook slim 150 mm (2x) 106/S220 puller hook slim 220 mm (2x) 106/B-300-S puller hook slim 300 mm (2x) 1.2106210 spindle SW 22, G 1/2", 210 mm
- Spindle thread size: G 1/2x210
- Hook Foot Width at Usable Surface c1: 40 mm
- Usable Hook Foot Depth d2: 7 mm
- Hook Foot Thickness at Tip e1: 5 mm
- Width across flats: 22 mm
- Tractive force (max.): 5.0 t
- Clamping width (max.) external pulling: 260 mm
- Hydraulic spindle optional: 1.06/HSP1
- Depth of hooked foot: 15 mm
