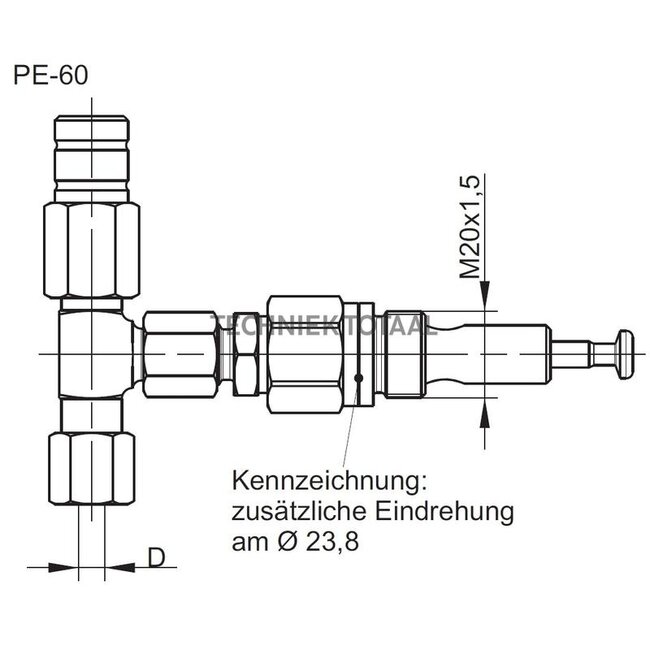

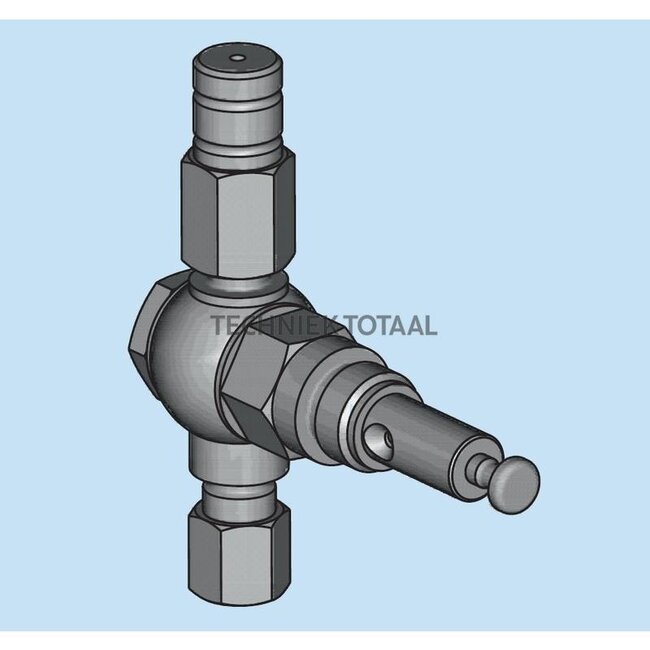

Groeneveld-Beka Pump element PE-60 with relief valve, pump EP-1

Replaces: 10164215

Technical data:

• Reference no.: 2152 990 67 0000
• Pumped substance: Grease up to NLGI class 2 (without solids), mineral oils up to 40 mm/s (cSt)
• Version: Flow rate not adjustable, with pressure relief valve
• Thread 1 (mm): M20x1.5
• Material: Galvanised steel, yellow chromated
• Technical data: Delivery rate 60 mm³/stroke, max. operating pressure: set to 280 bar, permissible operating temperature: -35°C to +70°C
• Pipe D (mm): 6

Suitable for:

Installation in EP-1 pump
