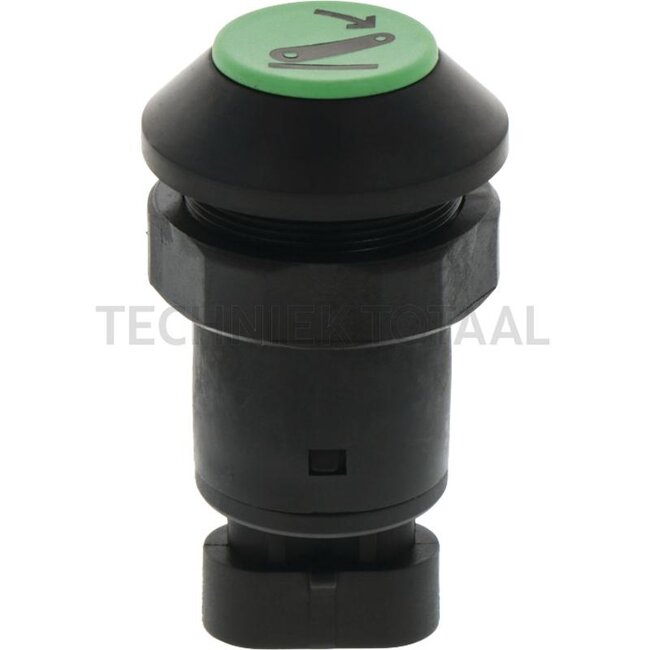

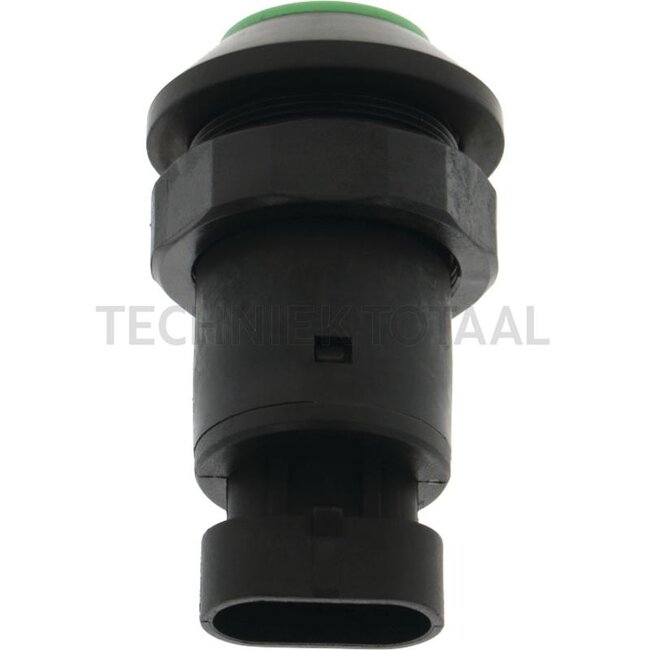

GRANIT Push button, DTW, lower cutting unit maaielement lower 48 V, M30 x 1, Ø 39 mm Deutz-Fahr
€35,07
€31,65 Incl. 21% VAT
€26,16 Excl. VAT
In stock
Version: Colour: green RAL 6018 Symbol colour: black Switching voltage: 48 V Switching current: 0.5 A Switching power: 10 W / VA Contact type: make contact Switching point: 3 + - 1 mm Total button travel: 5 mm Operating force: approx. 25 N Temperature ran Read more.
Version: Colour: green RAL 6018 Symbol colour: black Switching voltage: 48 V Switching current: 0.5 A Switching power: 10 W / VA Contact type: make contact Switching point: 3 + - 1 mm Total button travel: 5 mm Operating force: approx. 25 N Temperature range: -20°C - +100°C Protection classes: connection side and controls: IP 67 (IEC 529), operating side: IP 64 (IEC 529) Thread M30x1 Fixing nut AF 36 (included) AMP Superseal series 1.5, three-pin Overall dimensions (Ø x height): 39.0 x 69.0 mm
